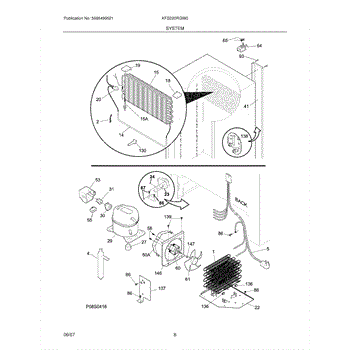

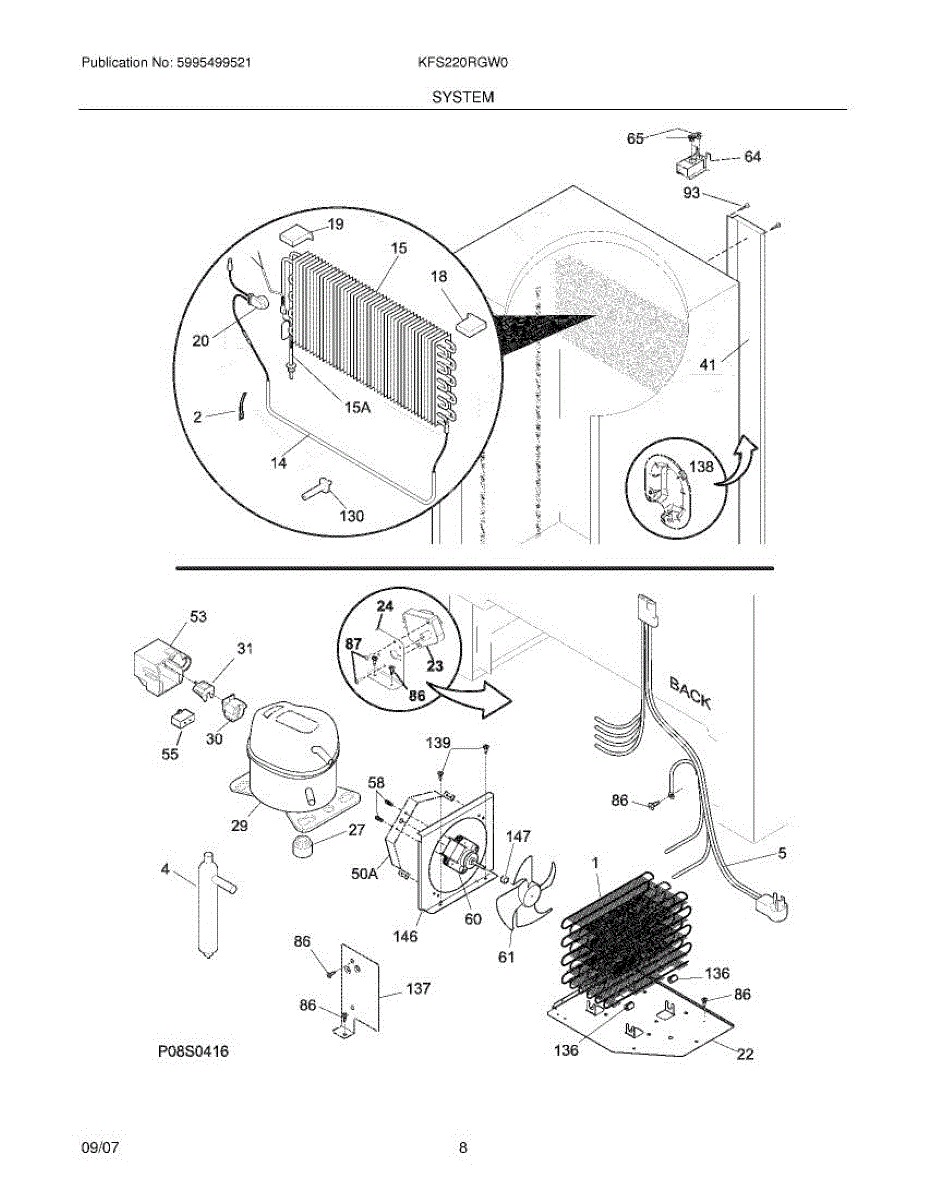

Parts for Kelvinator KFS220RGW0: 07 - System Parts

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

Includes service line.

The Defrost Heater is an OEM part for Frigidaire refrigerators, playing a critical role in the appliance's defrost system. This component is designed to melt away frost and ice that accumulate on the evaporator coils, ensuring that air can flow freely and the appliance maintains optimal cooling efficiency.

Causes of failure might include a burnt-out heating element, damage to the heater's electrical connections, or a malfunction in the control system that fails to activate the heater during the defrost cycle.

Symptoms of a bad Defrost Heater include:

• Frost build-up on the evaporator coils, leading to reduced cooling efficiency.
• The freezer or refrigerator compartment is too warm.
• The appliance is constantly running in an attempt to maintain the set temperature.
• Pools of water or ice on the floor of the freezer compartment due to incomplete defrosting.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This evaporator coil assembly circulates refrigerant and absorbs heat inside the freezer section so the appliance can maintain cold temperatures and keep food frozen. Replaces a worn or damaged coil to restore proper cooling performance. What it does:

• Absorbs heat from inside the freezer so refrigerant can carry heat away
• Works with the compressor and condenser to complete the cooling cycle
• Commonly linked to symptoms like a warm freezer, frost buildup, or excessive run time
• Helps maintain even freezer temperatures when functioning correctly

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the coil carefully to avoid bending fins or damaging connections

The Defrost Thermostat is an OEM replacement part for Frigidaire refrigerators. This component plays a crucial role in the defrost system, monitoring and regulating the temperature to ensure proper defrosting of the evaporator coils.

Causes of a faulty defrost thermostat can include normal wear and tear over time, exposure to excessive temperature fluctuations or moisture, or electrical malfunctions.

Symptoms of needing to replace the defrost thermostat include:

• Improper defrosting or lack of defrosting
• Frost buildup on the evaporator coils
• The refrigerator running constantly or cycling frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

This starter relay helps start the refrigerator compressor so the unit can cool properly. It replaces a worn or failed relay to restore reliable compressor start-up and reduce repeated clicking or humming. What it does:

• Provides the initial kick to start the compressor motor
• Stops the compressor from stalling during startup
• Commonly used when the fridge hums but doesn't cool or the compressor only clicks on and off
• Helps prevent extended run attempts that can overload the compressor

• One starter relay

• Disconnect power to the appliance before servicing
• Replace only when unit is fully powered down and components are cool to the touch
• Inspect the compressor terminal area for damage or corrosion and clean before installing

This run capacitor helps the refrigerator compressor start and run smoothly, restoring normal operation when a weak or failed capacitor causes the compressor to struggle. Replacing a faulty capacitor can reduce humming and improve cooling performance. What it does:

• Provides continuous phase-shift to the compressor motor for stable running.
• Helps maintain proper compressor speed and efficiency during operation.
• Commonly replaced when the compressor hums, won't stay running, or cooling is inconsistent.
• Reduces risk of repeated motor cycling caused by a weak or open capacitor.

• Always disconnect power to the appliance before accessing electrical components.
• Discharge the capacitor before handling; capacitors can hold a charge even when powered off.
• Observe terminal orientation and mounting location; replace with the same type and ratings.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

The Condenser Fan Motor Kit is an OEM part for Frigidaire refrigerators. This kit includes the motor and necessary components to replace the existing condenser fan motor in your appliance. It is responsible for circulating air through the condenser coils to dissipate heat outside the refrigerator, helping to maintain the internal temperature and keep the compressor cool.

Causes of damage to the condenser fan motor can include wear and tear over time, dust and debris buildup that obstructs fan movement or damages the motor, and electrical issues such as shorts or surges that can burn out the motor.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator overheating or not cooling efficiently
• Unusual noises coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or running longer than normal

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Condenser Motor Fan Blade is an OEM part for Frigidaire refrigerators. This component is essential for cooling the condenser coils by drawing air through them, which helps in maintaining the optimal temperature inside the refrigerator.

Over time, the condenser motor fan blade can become worn or damaged due to regular use or accidental impact. Factors such as debris accumulation, physical obstructions, or motor malfunctions can contribute to the deterioration of the fan blade.

Symptoms of a bad condenser motor fan blade include:

• Unusual noises coming from the refrigerator
• Overheating of the compressor
• Decreased cooling efficiency
• The refrigerator cycling on and off frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This vent directs airflow and helps channel exhaust air from the appliance to improve ventilation and maintain proper operation. Durable replacement restores correct air flow and reduces hot spots or moisture buildup. What it does:

• Channels exhaust or circulating air from the appliance to the cabinet or exterior
• Helps maintain even internal temperatures by directing airflow where needed
• Reduces build-up of heat or moisture that can affect performance
• Replaces worn, cracked, or missing vents that may cause rattling or poor airflow

• One replacement vent

• Basic hand tools may be required; verify screw/clip locations before removal
• Disconnect power to the appliance before starting work for safety
• Handle gently to avoid damaging mounting tabs or surrounding trim

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This support is a small mounting bracket used inside the appliance to hold an interior component, such as a shelf or basket. Replacing a cracked or missing support restores a secure, level fit and helps prevent wobbling or dropping.

• Provides a stable mounting point for a shelf, basket, rail, or panel
• Keeps interior components aligned and level
• Common symptoms: shelf/basket tilts, won't seat, or falls; visible cracks or missing support
• Replace if broken, deformed, or worn to restore proper fit

• Disconnect power and clear the work area before starting
• Remove the affected shelf/basket/panel to access the mounting point
• Release the damaged support (snap tabs or remove screw), align, and install the new support
• Reinstall the component and verify it sits level and secure

Color: Black. Rubber. Holds tube/wire

The Condenser Motor Fan Blade is an OEM part for Frigidaire refrigerators. This component is essential for cooling the condenser coils by drawing air through them, which helps in maintaining the optimal temperature inside the refrigerator.

Over time, the condenser motor fan blade can become worn or damaged due to regular use or accidental impact. Factors such as debris accumulation, physical obstructions, or motor malfunctions can contribute to the deterioration of the fan blade.

Symptoms of a bad condenser motor fan blade include:

• Unusual noises coming from the refrigerator
• Overheating of the compressor
• Decreased cooling efficiency
• The refrigerator cycling on and off frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation
