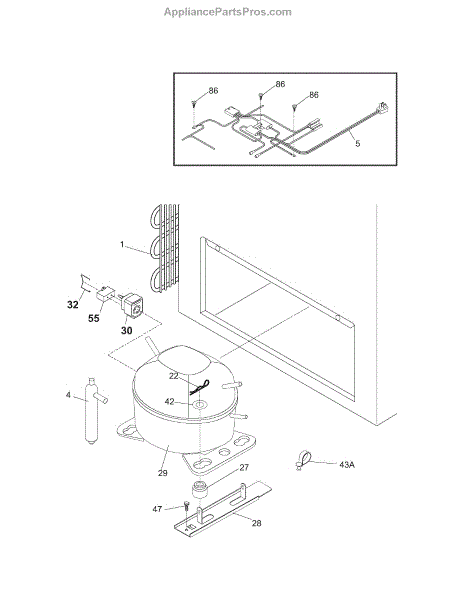

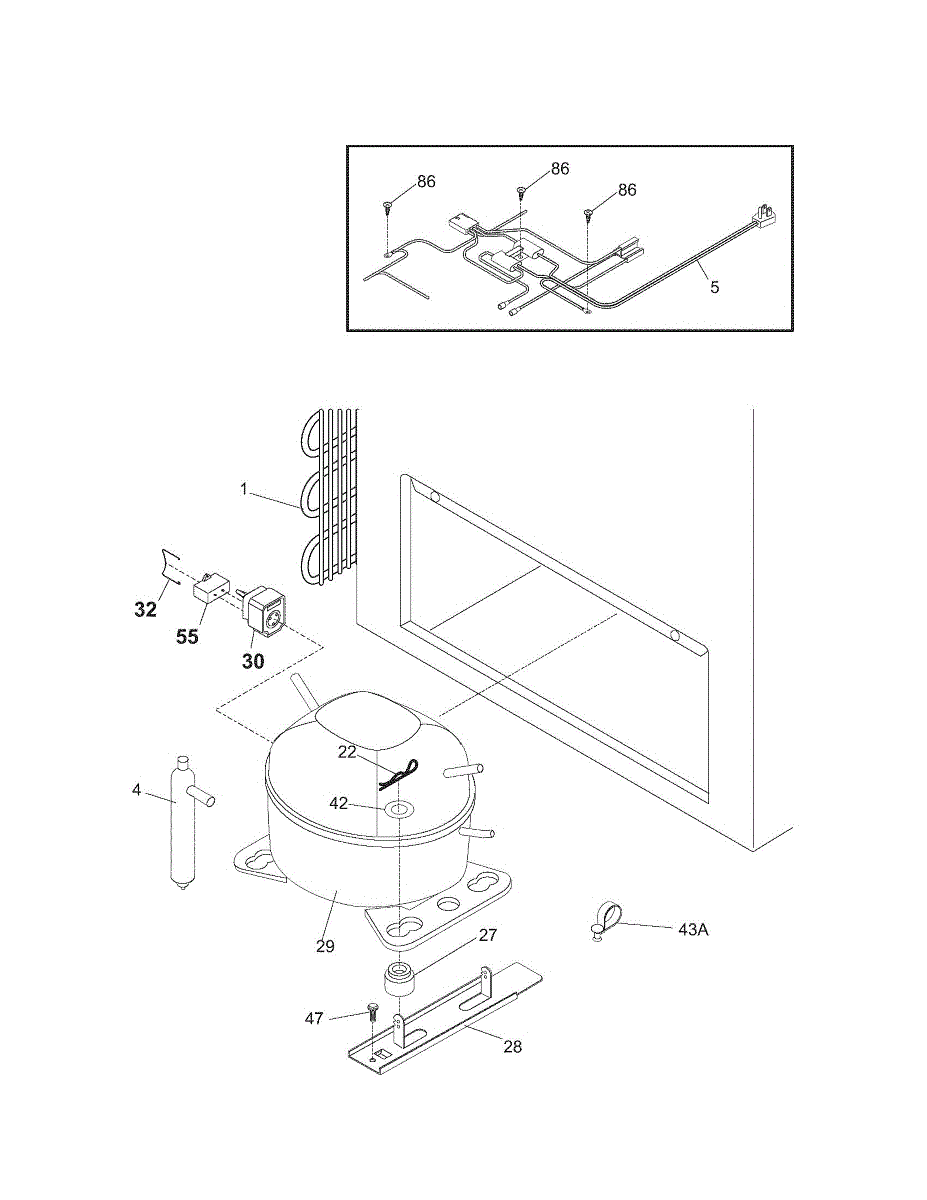

Parts for Kenmore 253.14582100 (25314582100, 253 14582100): System Parts

Includes service line.

Replaces a damaged or frayed main wire harness in your chest freezer. Essential when the original harness is broken, cracked, or showing exposed wires.

Secures compressor to mounting bracket in your refrigerator. Replace if clip is broken, loose, or causing vibration noise. Verify fit with your model number.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

This controller kit is the appliance's main electronic control. It reads inputs from the user interface and sensors to power and coordinate key components. Replacing a failed controller restores responsive controls and consistent, reliable operation.

• Interprets commands from the keypad and sensors to manage operation
• Controls relays powering motors, fans, compressor, or valves as designed
• Coordinates modes and cycle timing for proper performance
• Common symptoms: dead or blank display, unresponsive buttons, won't start, intermittent shutdowns, or error codes

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the board with ESD precautions; avoid touching connectors and components
• Photograph/label wire connections and transfer them one at a time to the new board
• After installation, verify any model-specific settings per the service documentation before testing

Secures interior trim and panels in your refrigerator. Replace when trim becomes loose or rattles. Verify fit with your model number before ordering.

Hex washer head screw secures hinges, panels, and trim to your freezer or refrigerator. Replace missing, stripped, or corroded screws for stable parts.

Wiring harness for freezers. Connects electrical components inside the cabinet. Replace if wires are frayed, connectors are damaged, or harness is broken.
