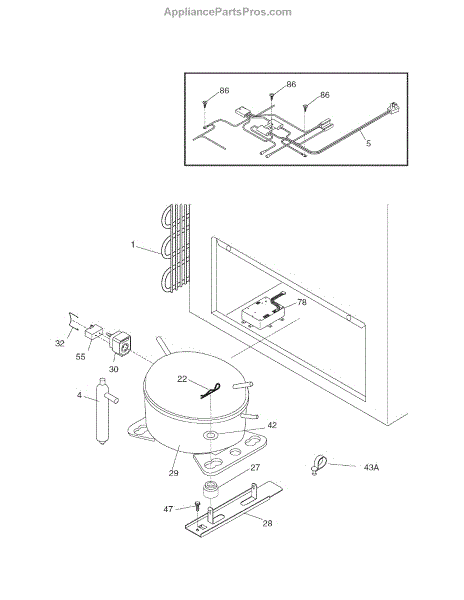

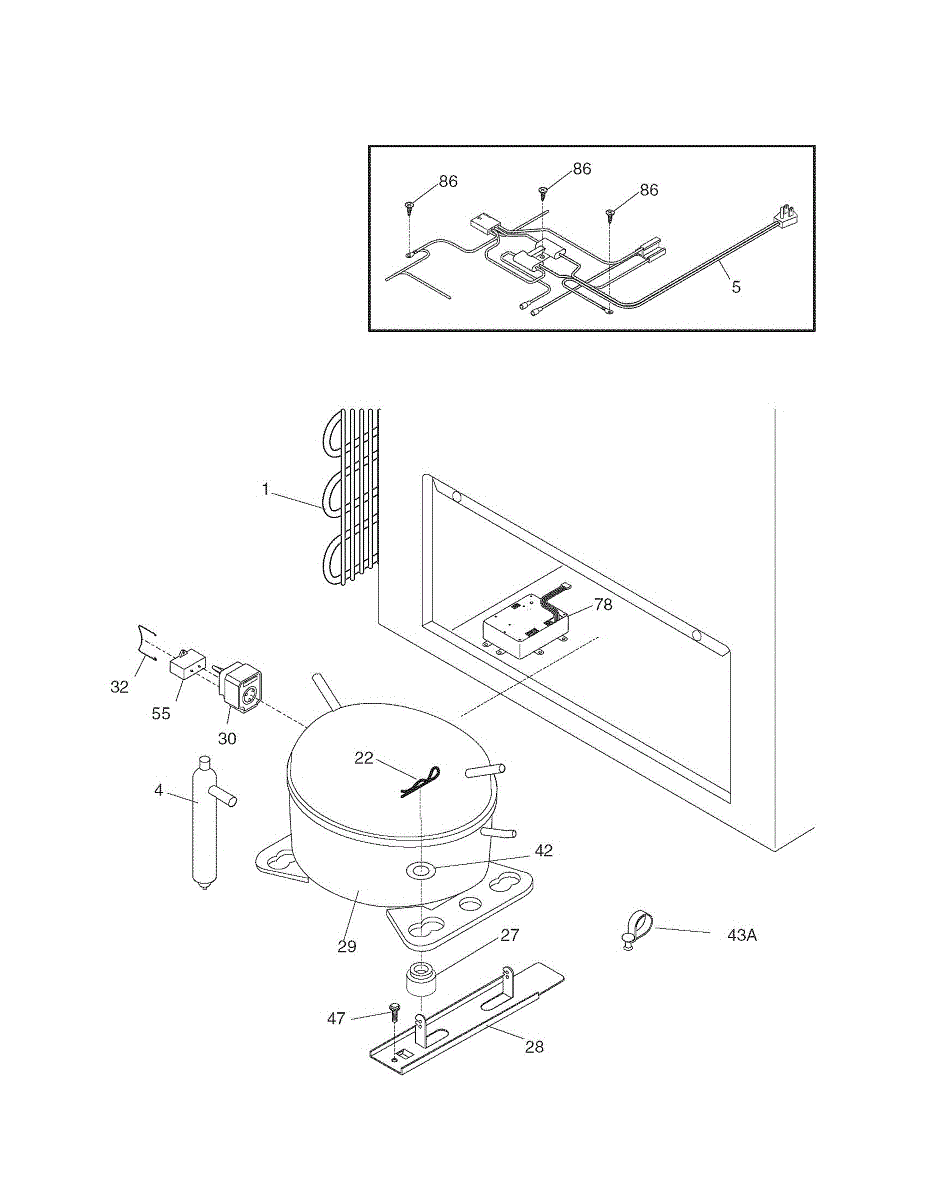

Parts for Kenmore 253.16082102 (25316082102, 253 16082102): System Parts

Includes service line.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Freezer not cooling or running constantly? This compressor kit circulates refrigerant through the system. Advanced repair requires refrigerant handling.

This electronic control board manages core cooling functions in your appliance, including compressor/fan operation and the automatic defrost cycle. Replacing a failing board can restore stable temperatures and more reliable, frost-free performance.

• Regulates compressor and evaporator fan operation to maintain the set temperature
• Controls and times the automatic defrost cycle to reduce frost buildup
• Interprets inputs from sensors and user controls to coordinate system responses
• Common symptoms of a failed board: inconsistent temperatures, continuous running or short cycling, heavy frost/ice on coils, or unresponsive/intermittent controls

• Disconnect power before servicing; handle the board with ESD precautions
• Note connector locations; transfer any mounting brackets or covers from the original as needed
• Seat all connectors fully and secure the board before restoring power
• After installation, monitor temperature and defrost operation

Secures interior trim and panels in your refrigerator. Replace when trim becomes loose or rattles. Verify fit with your model number before ordering.

Hex washer head screw secures hinges, panels, and trim to your freezer or refrigerator. Replace missing, stripped, or corroded screws for stable parts.

Freezer won't start or compressor hums but doesn't run? A failed run capacitor is often the cause. DIY-friendly repair, typically done in under an hour.

This is the electronic control board that governs the appliance's cooling system. It interprets sensor input and user settings to run key components, helping maintain consistent temperatures when the original controller becomes faulty or erratic.

• Monitors temperature sensor feedback and executes cooling cycles to hold the selected setpoint
• Controls major components on applicable models
• May manage additional functions like defrost timing or alarms depending on model design
• Failure can present as warm or unstable temperatures, unit not starting, short-cycling/running constantly, or unresponsive temperature adjustments

• Disconnect power before service; observe ESD precautions and handle the board by its edges
• Note wire/plug locations; transfer connectors to the new board one at a time
• Secure the board in its mounting and ensure all harnesses are fully seated
• Reassemble covers/panels before restoring power and checking operation
