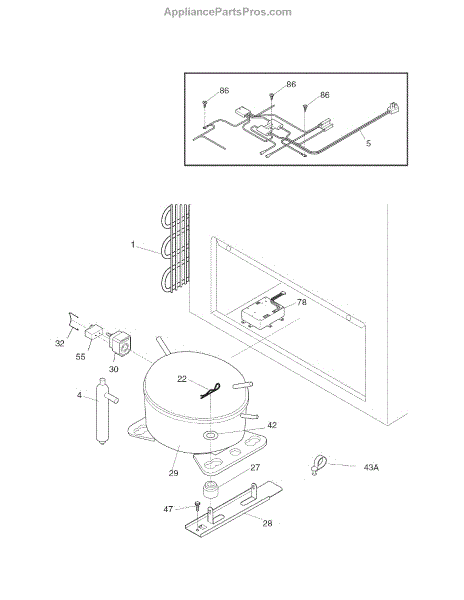

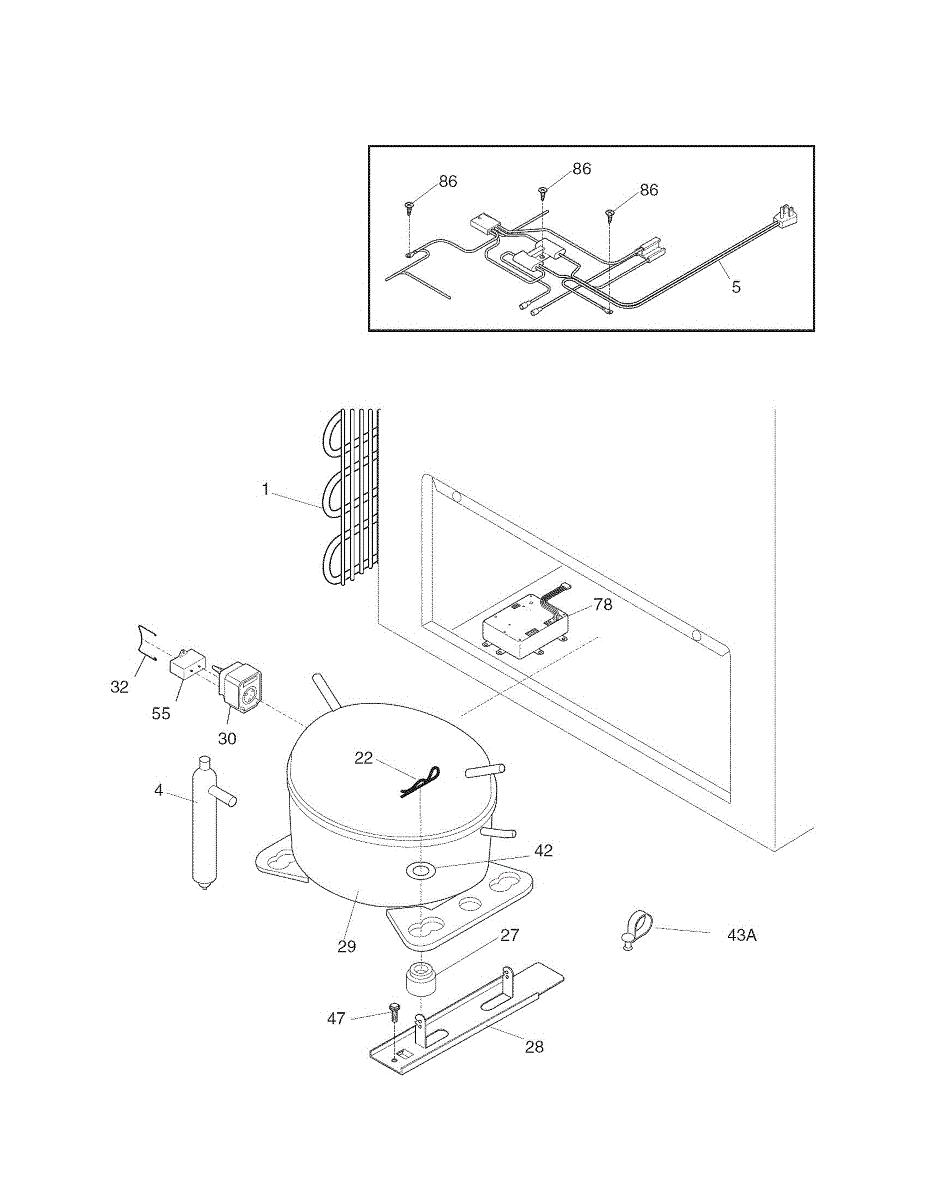

Parts for Kenmore 253.16082105 (25316082105, 253 16082105): System Parts

Includes service line.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Rubber grommet for freezers. Cushions and seals components where wires or tubes pass through panels. Replace if cracked, worn, or missing.

Freezer not cooling or running constantly? This compressor kit circulates refrigerant through the system. Advanced repair requires refrigerant handling.

This electronic control board serves as the appliance's controller, managing cooling functions, sensor inputs, and status indicators. Replacing a faulty controller can restore stable temperatures and reliable operation.

• Regulates cooling based on temperature-sensor feedback to maintain the set point
• Switches major loads (such as compressor and fan) on and off as designed
• Interfaces with user controls and any status lights/alarms, when equipped
• Common failure symptoms: no cooling or overcooling, constant running, erratic cycling, or unresponsive/intermittent controls or indicators

• Disconnect power before servicing; electrical shock risk
• Handle the board by the edges and use ESD protection to prevent static damage
• Note/photograph all wire connectors before removal; transfer any mounting brackets or covers from the original part
• After reassembly, restore power and allow temperature to stabilize before final evaluation

Secures interior trim and panels in place to eliminate gaps and rattling. Replace when clips break or go missing. Confirm fit with your model number.

Hex washer head screw secures hinges, panels, and trim to your freezer or refrigerator. Replace missing, stripped, or corroded screws for stable parts.

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage

This is the electronic control board that governs the appliance's cooling system. It interprets sensor input and user settings to run key components, helping maintain consistent temperatures when the original controller becomes faulty or erratic.

• Monitors temperature sensor feedback and executes cooling cycles to hold the selected setpoint
• Controls major components on applicable models
• May manage additional functions like defrost timing or alarms depending on model design
• Failure can present as warm or unstable temperatures, unit not starting, short-cycling/running constantly, or unresponsive temperature adjustments

• Disconnect power before service; observe ESD precautions and handle the board by its edges
• Note wire/plug locations; transfer connectors to the new board one at a time
• Secure the board in its mounting and ensure all harnesses are fully seated
• Reassemble covers/panels before restoring power and checking operation

Fix a freezer that runs continuously or displays incorrect temperature readings. This defrost thermostat monitors temperature cycles to prevent overcooling.
