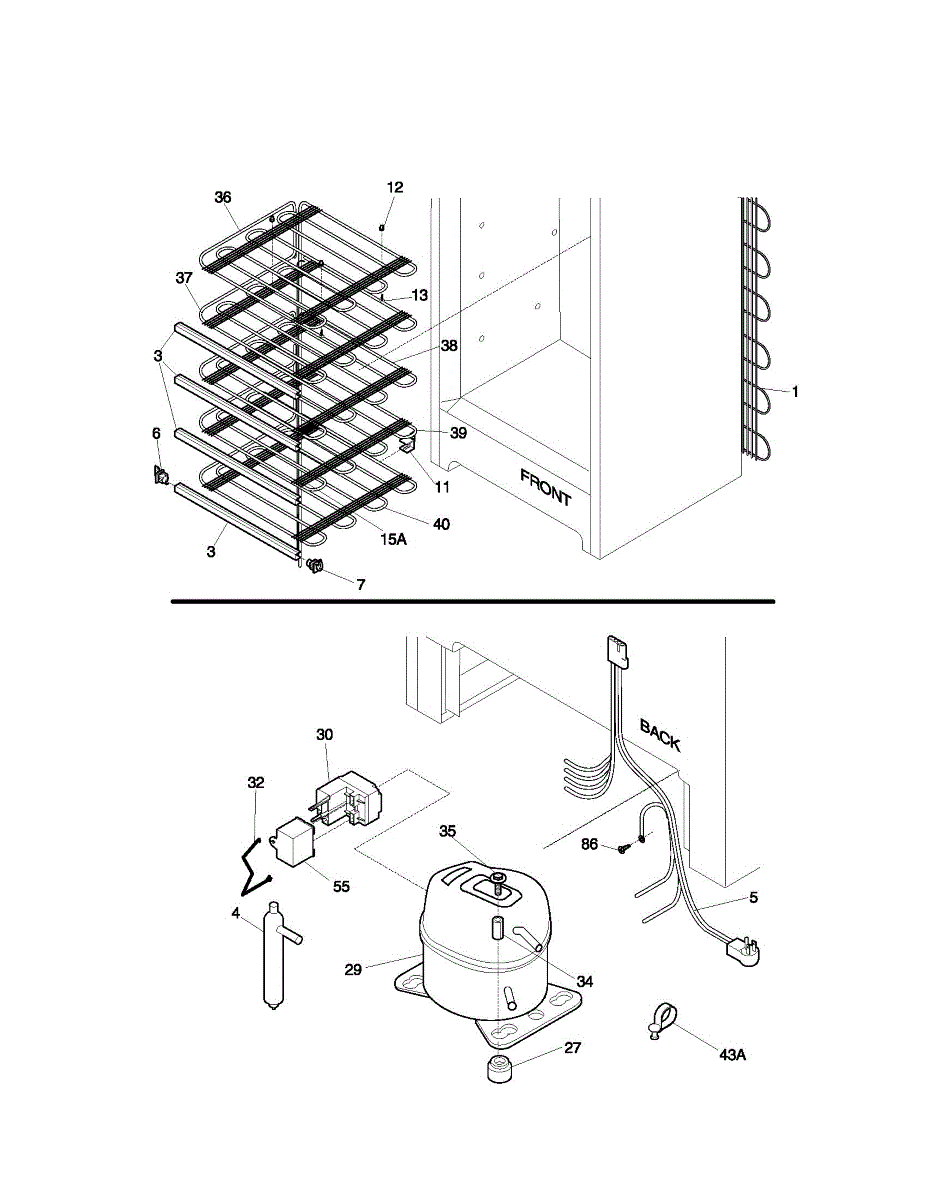

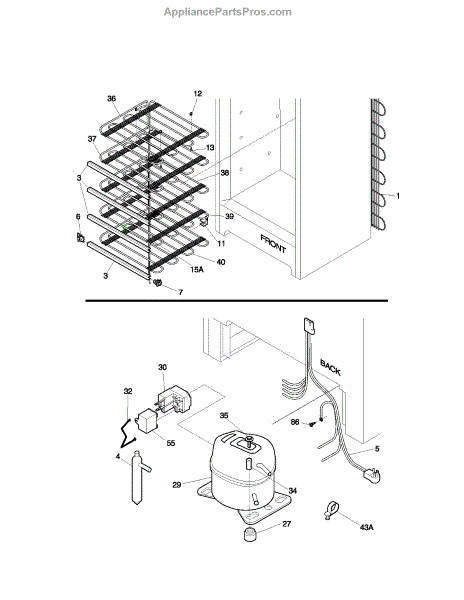

Parts for Kenmore 253.21111102 (25321111102, 253 21111102): System Parts

Includes service line.

This main wiring harness routes power and signal connections between the refrigerator control board and key components, restoring electrical continuity for proper appliance operation. What it does:

• Delivers power and control signals to components like compressors, fans, lights and ice systems
• Replaces damaged or frayed wiring that can cause intermittent operation or component failure
• Helps resolve symptoms such as loss of lights, fans not running, ice maker not cycling, or no cooling when due to wiring faults
• Preserves factory connector interfaces for a plug-and-play replacement when the harness is an exact match

• One main wiring harness as specified

• Disconnect power to the appliance before beginning any work
• Handle connectors by the housings; avoid pulling on wires to prevent damage
• Route and secure the harness following factory clips and channels; do not cut or splice unless explicitly instructed by a service manual

Replacement shelf support bracket for freezers. Secures and stabilizes freezer shelves. Replace if broken, cracked, or missing due to heavy loads or age.

The Support-Shelf is an OEM part for Frigidaire freezers, designed to provide sturdy and reliable support for the freezer shelves. This part ensures that the shelves remain level and secure under the weight of stored items.

Causes of a bad Support-Shelf can range from overloading shelves beyond their weight capacity, to normal wear and tear from years of use.

Symptoms of a bad Support-Shelf include:

• Shelves sagging or not sitting level, which can lead to inefficient storage and the risk of items falling.
• Cracks or breaks in the support, compromising the stability of the entire shelving system.
• Difficulty installing or removing shelves, indicating that the supports may be damaged or misshapen.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replacement spacer for the front of the top grid in your freezer. Needed when original spacer is cracked, broken, or missing to properly support shelf.

Mounting screw that secures the top grid assembly inside your refrigerator. Replace if the original screw is stripped, missing, or damaged during maintenance.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

A replacement compressor kit designed to restore the refrigeration system's ability to cool by replacing failed compressor components. Use this kit when the compressor assembly needs service or replacement. What it does:

• Replaces failed compressor components to help restore normal cooling performance
• Stops intermittent or complete loss of cooling often caused by compressor failure
• Helps address loud humming, grinding, or continuous running tied to compressor problems
• Supports proper refrigerant flow when installed and serviced

• Disconnect power and unplug the appliance before beginning any repairs
• Compressor and sealed-system service (evacuation, vacuum, refrigerant charging) must be performed
• Use proper handling and tools for refrigerant-containing components to avoid leaks and injury

This controller kit is the appliance's main electronic control. It reads inputs from the user interface and sensors to power and coordinate key components. Replacing a failed controller restores responsive controls and consistent, reliable operation.

• Interprets commands from the keypad and sensors to manage operation
• Controls relays powering motors, fans, compressor, or valves as designed
• Coordinates modes and cycle timing for proper performance
• Common symptoms: dead or blank display, unresponsive buttons, won't start, intermittent shutdowns, or error codes

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the board with ESD precautions; avoid touching connectors and components
• Photograph/label wire connections and transfer them one at a time to the new board
• After installation, verify any model-specific settings per the service documentation before testing

Used to hold the original electrical components to the side of the compressor.

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Plastic spacer that maintains proper gap between freezer door and cabinet. Replace if cracked, broken, or missing to restore correct door alignment.
