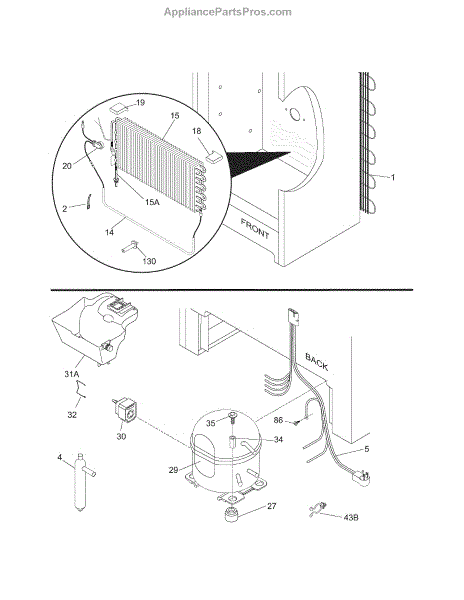

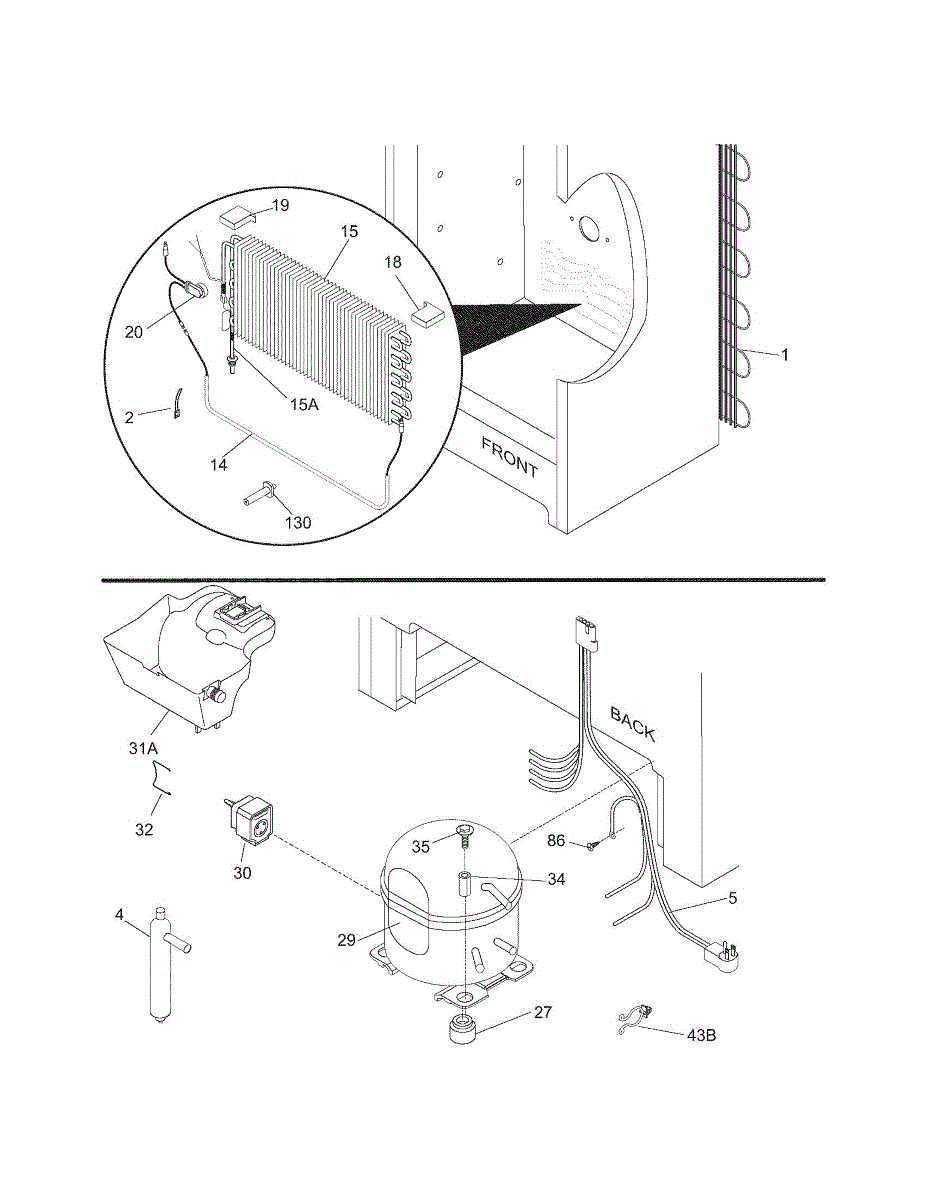

Parts for Kenmore 253.26742103 (25326742103, 253 26742103): System Parts

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Replace your freezer's main wire harness if wiring is damaged, frayed, or connectors are broken. Restores proper electrical connections throughout the unit.

Fixes frost buildup on evaporator coils causing warming or ice accumulation. Test with multimeter for continuity. DIY-friendly repair component.

Freezer not maintaining temperature or running constantly? This heat exchanger assembly transfers heat to restore proper cooling and efficient operation.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Freezer not cooling or running constantly? This compressor kit restores proper cooling. Professional installation required by EPA-certified technician.

This electronic controller is the central board that governs your unit's cooling system. It processes temperature inputs and controls key components so the freezer maintains set temperature when the original board fails.

• Regulates temperature by processing sensor/thermostat inputs and issuing commands to cooling components
• Directs compressor and fan operation to maintain the setpoint
• On applicable models, manages defrost timing and cycles
• Common failure symptoms include no cooling or intermittent cooling, unit won't start, runs constantly, unresponsive controls, or erratic temperatures

• Disconnect power before service; observe ESD precautions and handle the board by its edges
• Photograph/label wire connections; transfer any mounting clips/brackets from the original board
• Seat all connectors fully without forcing; avoid touching component pins
• Restore power and allow time for temperatures to stabilize; verify normal operation

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.

Suction line plug seals the refrigerant line connection in your freezer's compressor system. Replace if cracked, damaged, or missing to maintain proper seal.
