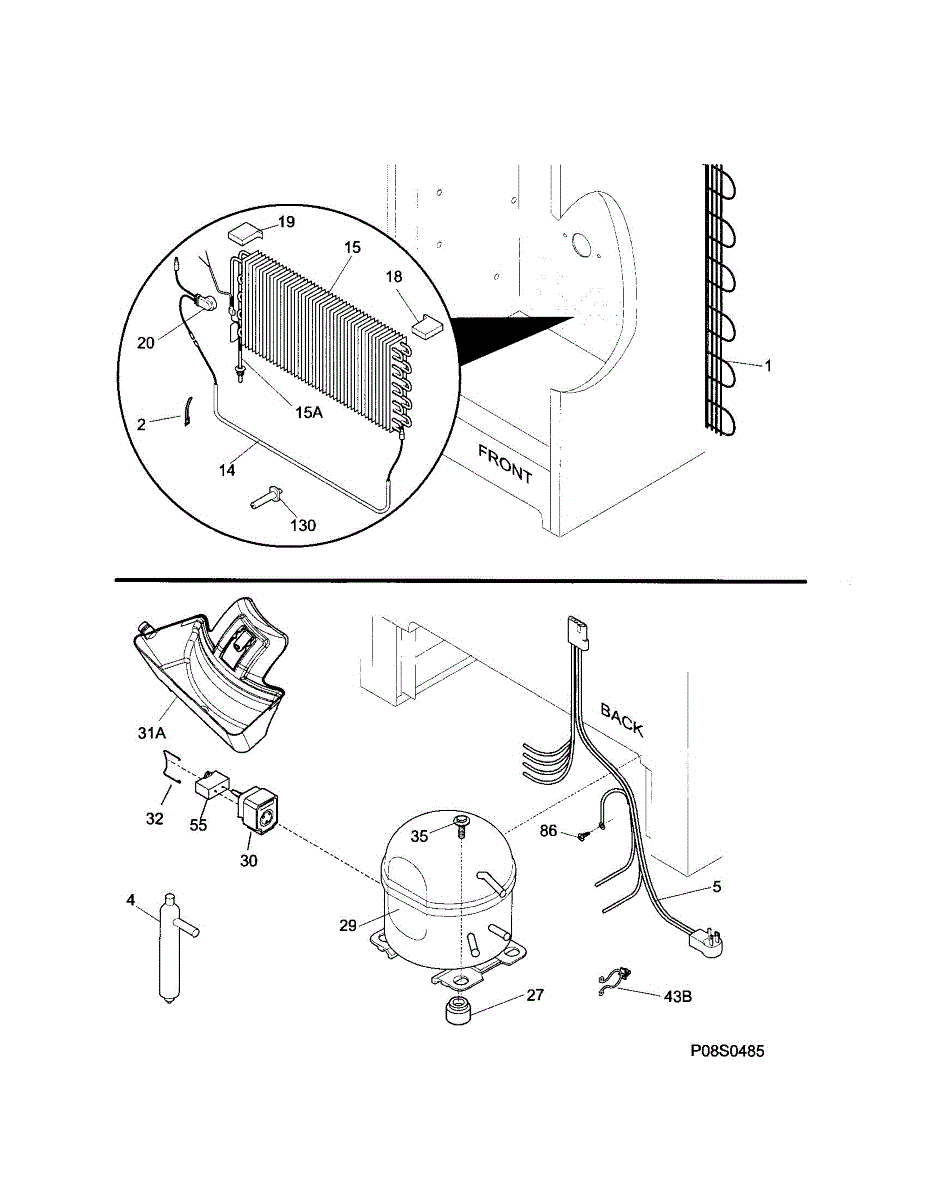

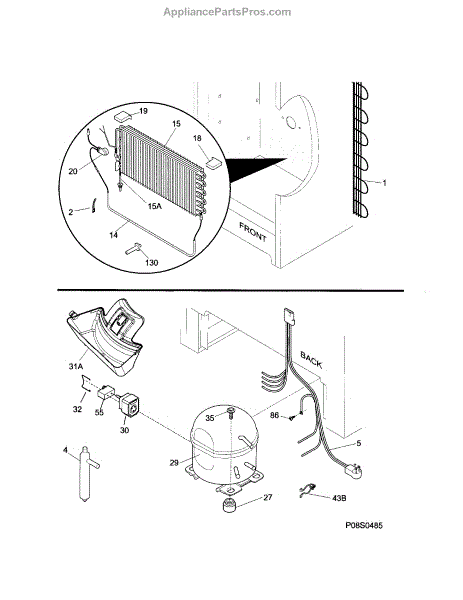

Parts for Kenmore 253.28792800 (25328792800, 253 28792800): System Parts

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Service data sheet manual for upright freezers. Technical reference guide with wiring diagrams and part locations. Replace missing or damaged documentation.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Suction line plug seals the refrigerant line connection in your freezer's compressor system. Replace if cracked, damaged, or missing to maintain proper seal.

Fix error code E8, high temp alarms, or irregular defrost cycles. This thermistor monitors evaporator temperature. DIY repair typically under 15 minutes.

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet

Fixes frost buildup on evaporator coils causing warming or ice accumulation. Test with multimeter for continuity. DIY-friendly repair component.

Freezer won't stay cold or runs too cold? A faulty heat exchanger disrupts refrigerant flow. Requires professional brazing and refrigerant recharge.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Freezer not cooling or running constantly? This compressor kit restores proper cooling. Professional installation required by EPA-certified technician.

Drain pan collects defrost water beneath your freezer. Replace if cracked, warped, or missing to prevent leaks and water damage on your floor.

Replacement mounting clip for freezers and refrigerators. Secures interior panels and trim to prevent rattling. Replaces broken or missing clips.

Secures the compressor to the mounting bracket in your refrigerator or freezer. Replace if missing, stripped, or corroded during compressor service.

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.
