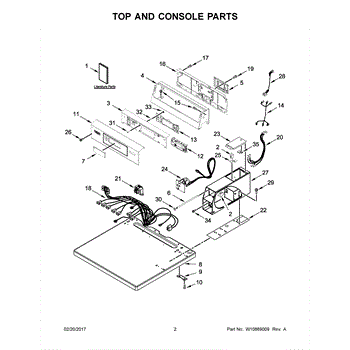

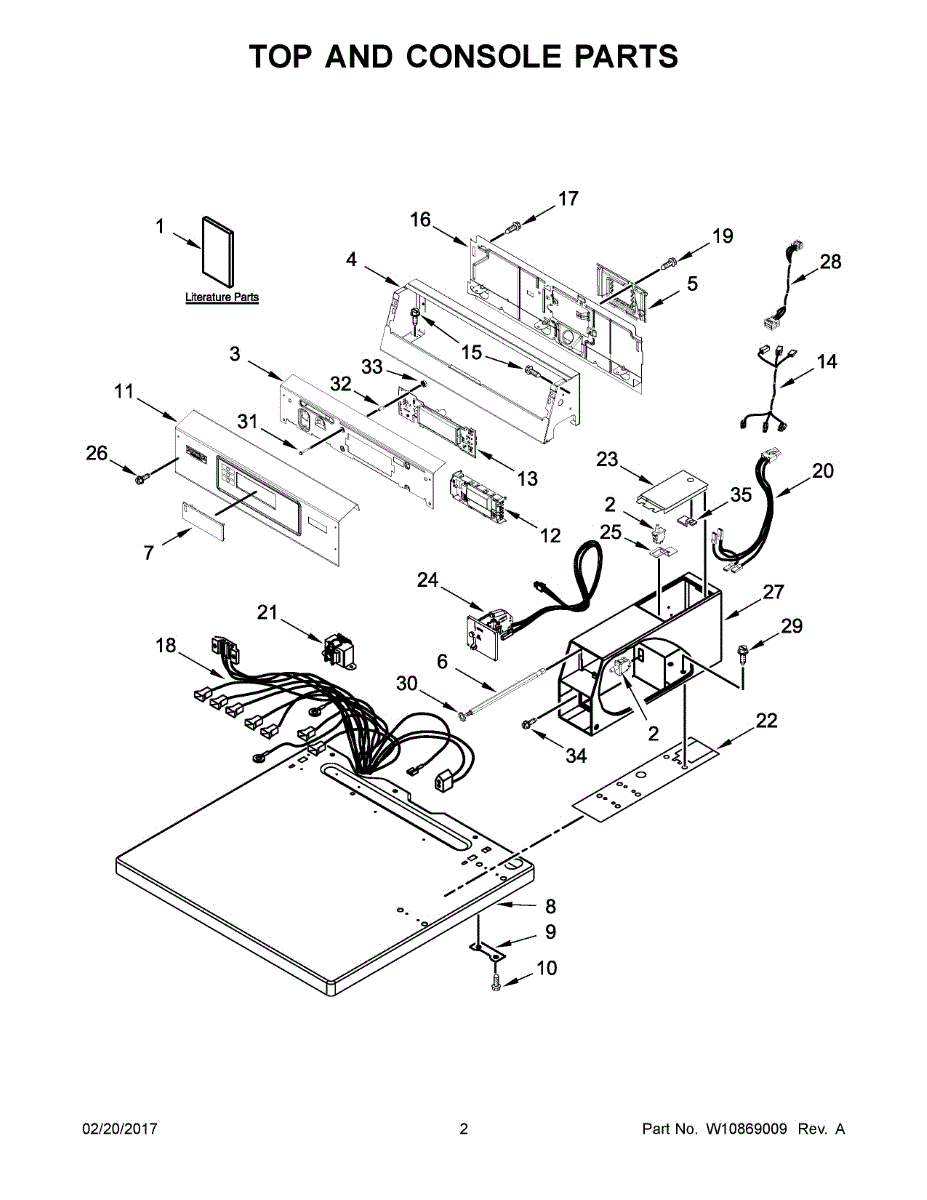

Parts for Maytag MDE20PDAZW0: 02 - Top And Console Parts

This control panel is the console assembly that houses the oven/range user controls and display, restoring responsive button input and clear status feedback for normal operation. It replaces a worn, cracked, or unresponsive console to return reliable control. What it does:

• Provides the front-facing buttons, touch controls and display interface used to select bake, broil, timers and settings
• Routes user commands to the oven control board so cycles and temperature changes start correctly
• Commonly replaces panels that are cracked, faded, or have unresponsive buttons or missing indicators
• Helps resolve intermittent or no-response control inputs when the panel hardware is the failed component

• One control panel (console assembly) as shown

• Disconnect power to the appliance at the breaker before starting; electric shock hazard
• Handle the assembly carefully to avoid damaging the display, ribbon cables, and connectors
• Some models require removing trim, screws, or the oven door for access; keep fasteners organized
• If you see additional electronic damage or error codes after swap, verify the main control board and wiring harness

This terminal cover protects and conceals the appliance's electrical wire terminals for safer handling and cleaner internal appearance. It helps reduce accidental contact with live connections and keeps wiring organized. What it does:

• Covers exposed wire terminals to help prevent accidental contact and shorting
• Keeps wiring routed and held in place for improved serviceability
• Protects terminals from dust and debris that can affect connections
• Supports safer access during diagnostics and repairs

• One terminal cover, as shown

• Disconnect power to the appliance before attempting any service
• Remove outer panels as needed to access the terminal area; use manufacturer service guide for panel removal steps
• Align cover over the terminal block and secure per factory mounting points; do not force or modify
• If terminals or wiring appear damaged or corroded, replace or repair those components before reinstalling the cover

This is a 10-32 threaded bolt used to fasten and secure appliance components. It provides a simple, reliable replacement for stripped or missing fasteners to keep panels and assemblies held in place. What it does

• Secures panels, brackets, or assemblies where a 10-32 threaded fastener is required
• Stops loose parts that can vibrate, rattle, or shift during operation
• Restores proper fit and alignment for affected components
• Matches common OEM fastener function for a direct-replacement fit

• Use the correct screwdriver or socket to avoid stripping the head
• Tighten to snug condition; do not over-torque—excessive force can strip threads
• Replace any damaged mating nut or threaded insert for reliable fastening
• Disconnect power and follow appliance-specific safety procedures before servicing

This replacement commercial cover protects internal components and restores the appliance's exterior appearance. It keeps wiring and controls shielded from debris and accidental contact so the unit operates safely and looks finished. What it does:

• Shields internal controls and wiring from dust, spills, and accidental contact
• Restores damaged or missing exterior panels for a clean, professional appearance
• Helps prevent short circuits and component exposure caused by cracked or broken covers
• Useful when the original cover is dented, cracked, or no longer secures properly

• One commercial cover

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Basic hand tools are typically required; follow the service manual for fastener locations and order
• Inspect mounting tabs and surrounding components; replace any broken fasteners for a secure fit

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Control transformer that provides stable low-voltage power to the washer's control and user interface, ensuring reliable electrical signaling so cycles start and the machine operates correctly. What it does:

• Supplies the control board and user controls with the required control voltage.
• Restores power to displays, timers, and electronic controls when the transformer has failed.
• Common symptom: machine is dead, display is blank, or cycles won't start.
• Can cause intermittent power or control glitches before full failure.

• Disconnect power before servicing to avoid shock—follow lockout/tagout if required.
• Compare part number and mounting style to the original before installation.
• Handle terminals and wiring carefully; secure all connections and mounting hardware.

This is the factory replacement microwave door assembly. It restores a smooth, secure door closure and proper operation so the unit can open and close reliably and look like new. What it does:

• Provides a complete, aligned door to open/close the cavity smoothly
• Ensures latch hooks engage properly so the appliance can operate
• Replaces doors that are cracked, warped, or have broken handle mounts
• Addresses issues like the unit not starting unless the door is pressed, or stopping when the door is moved
• Helps resolve sparking/arcing around the door opening caused by a damaged door choke or screen

• One door assembly

• Disconnect power at the breaker before servicing; microwaves contain high-voltage components
• For over-the-range units, support or remove the microwave from the wall to safely access and handle the door
• Transfer any reusable hardware/hinge pins/trim from the original door as needed
• Align the hinges and verify the door closes, latches, and opens smoothly before remounting

The Coin Drop Assembly is an OEM replacement part for Whirlpool washers. It allows users to insert coins and activate the machine on commercial or coin-operated washers.

A bad coin drop assembly can be caused by wear and tear over time or damage due to excessive use or mishandling. If you notice issues such as the coin mechanism not working, coins getting stuck, or the machine not starting when coins are inserted, it may be time to replace the coin drop assembly.

Symptoms of a faulty coin drop assembly include:

• Coins not being accepted or not registering
• Coins getting jammed or stuck in the mechanism
• Inability to start the washer with the coin insertion

Restore the function of your Whirlpool commercial washer by replacing the old or damaged coin drop assembly with this genuine OEM part.

This part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
