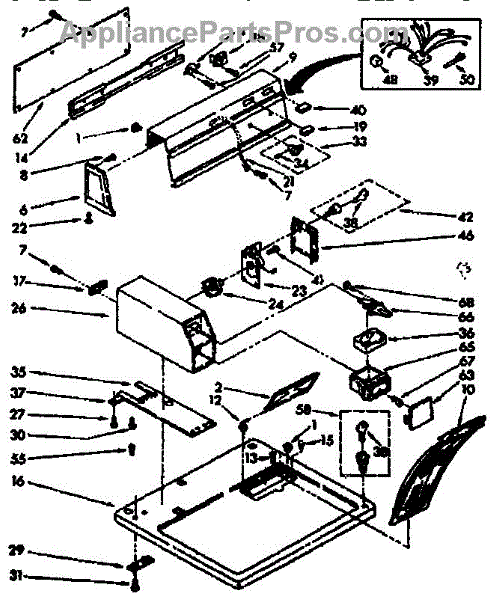

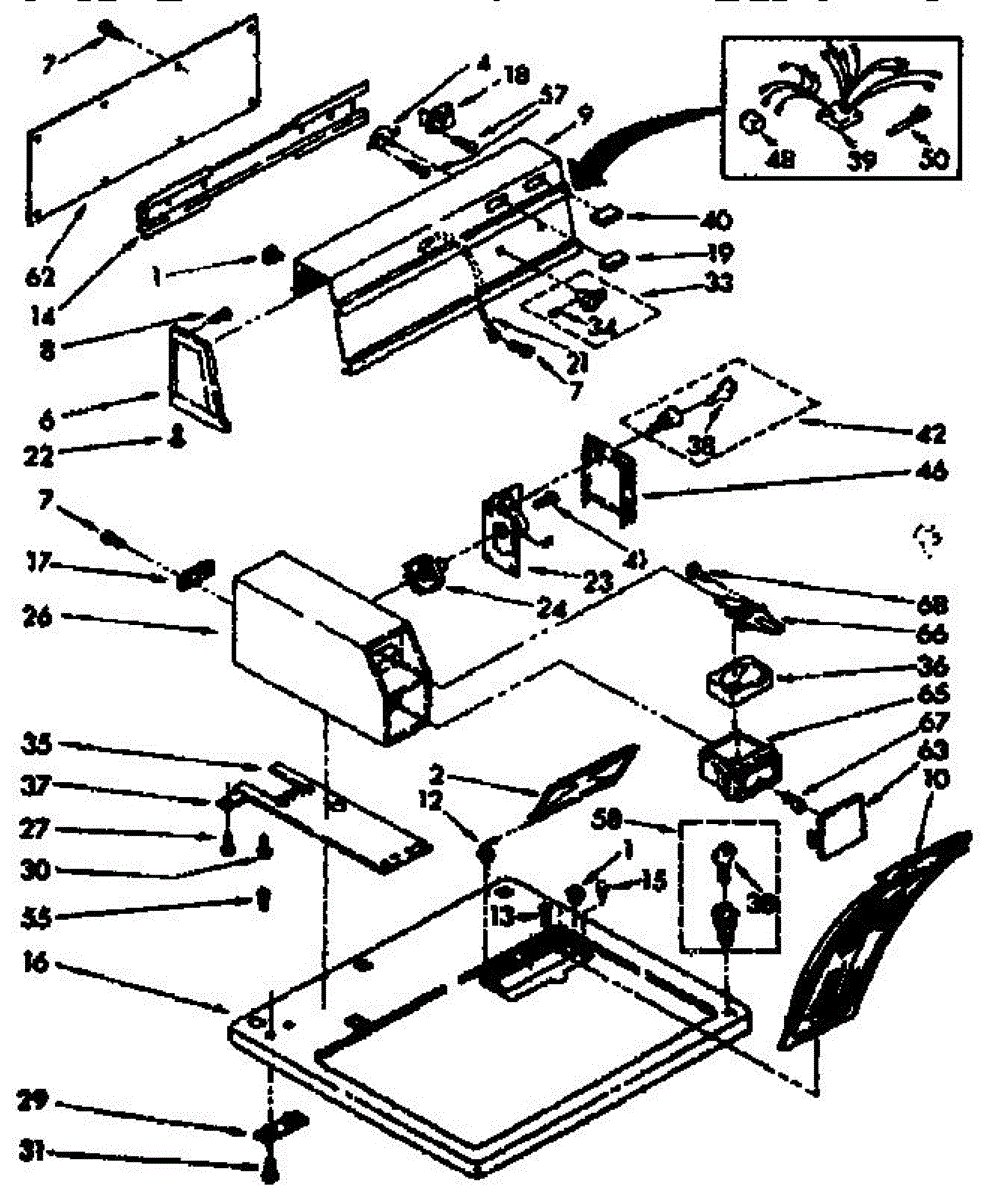

Parts for Sears 11077409430: Top And Console Parts

Captures lint and debris during drying to maintain airflow and prevent vent clogs. Replace if torn, frayed, or handle is broken. Verify fit by model number.

Right handed Hinge

Connects lint screen lid to dryer, enabling smooth opening and secure closing. Replace when bent, cracked, or broken to restore proper lid operation.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

This dryer door hinge bumper provides cushioning where the door meets the dryer cabinet when closing. It prevents metal-on-metal contact and reduces noise while protecting the finish. Replace if the door slams shut, makes noise when closing, or shows scratches around the hinge area.

Dryer won't advance through cycles or keeps running after finishing? This timer controls cycle sequencing and shutoff. Typical DIY repair in 15 minutes.

12 Pin 15 Minute

6 Pin 30 minute

Dryer timer stuck or not advancing through cycles? The timing cam controls cycle progression. Worn cams cause timers to stall mid-cycle or fail to move.

Channels coins from the coin slide into the collection box on coin-operated laundry equipment. Replace if cracked, damaged, or missing to restore flow.

This replacement key engages the appliance's keyed lock or actuator so the mechanism can be operated or secured. It restores function when the original key is lost, worn, or broken, helping keep the unit safe and usable.

• Engages a keyed lock or control as designed by the manufacturer
• Allows operation or release of the keyed mechanism when inserted and turned
• Helps prevent unintended use when removed
• Common symptoms: missing key, damaged key, lock won't turn or engage

• Disconnect power before servicing and ensure the appliance is at rest
• Align the key with the lock/actuator; insert fully and turn as indicated on the product
• Do not force; if binding occurs, inspect the lock cylinder for damage or obstruction
• Store a spare key in a safe location

This replacement security lock cam engages the dishwasher door latch to help the door lock securely during a cycle, restoring proper door closure and safety interlock function. It's a direct-fit actuator cam used in the latch assembly. What it does:

• Rotates the latch mechanism to engage or release the door lock during start and cycle operation
• Helps the door stay closed and maintain the dishwasher's safety interlock
• Can cause door-lock related errors or prevent the dishwasher from starting if worn or broken
• Works as a mechanical replacement for a damaged or stripped latch cam

• Disconnect power to the appliance before beginning any repair.
• Access the door latch assembly per your model's service manual; this cam typically installs on the latch mechanism and secures with screws or clips.
• Handle small components carefully and confirm correct cam orientation before reassembly.

For mating terminal use WP94614.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch up paint for appliances with chips, scratches, or worn spots. Includes brush applicator. Restores finish on damaged surfaces. 0.6 fl oz.

Touch-up paint for appliances in new avocado color. Covers chips, scratches, and worn spots on exterior surfaces. Includes brush applicator.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
