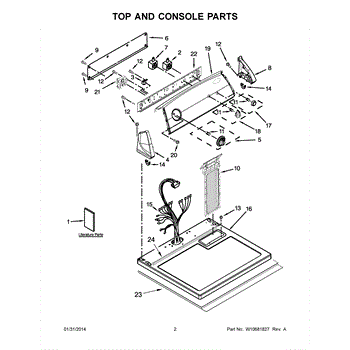

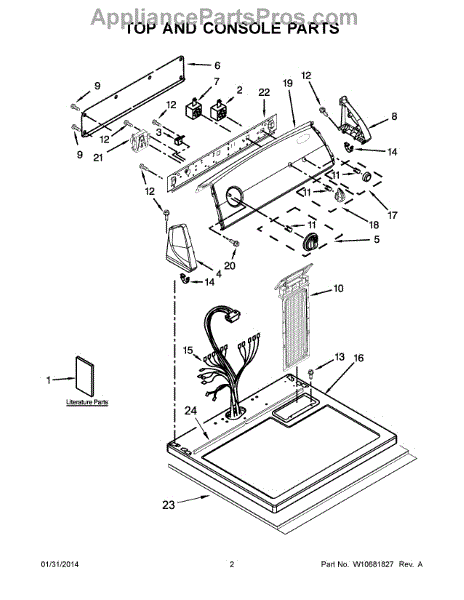

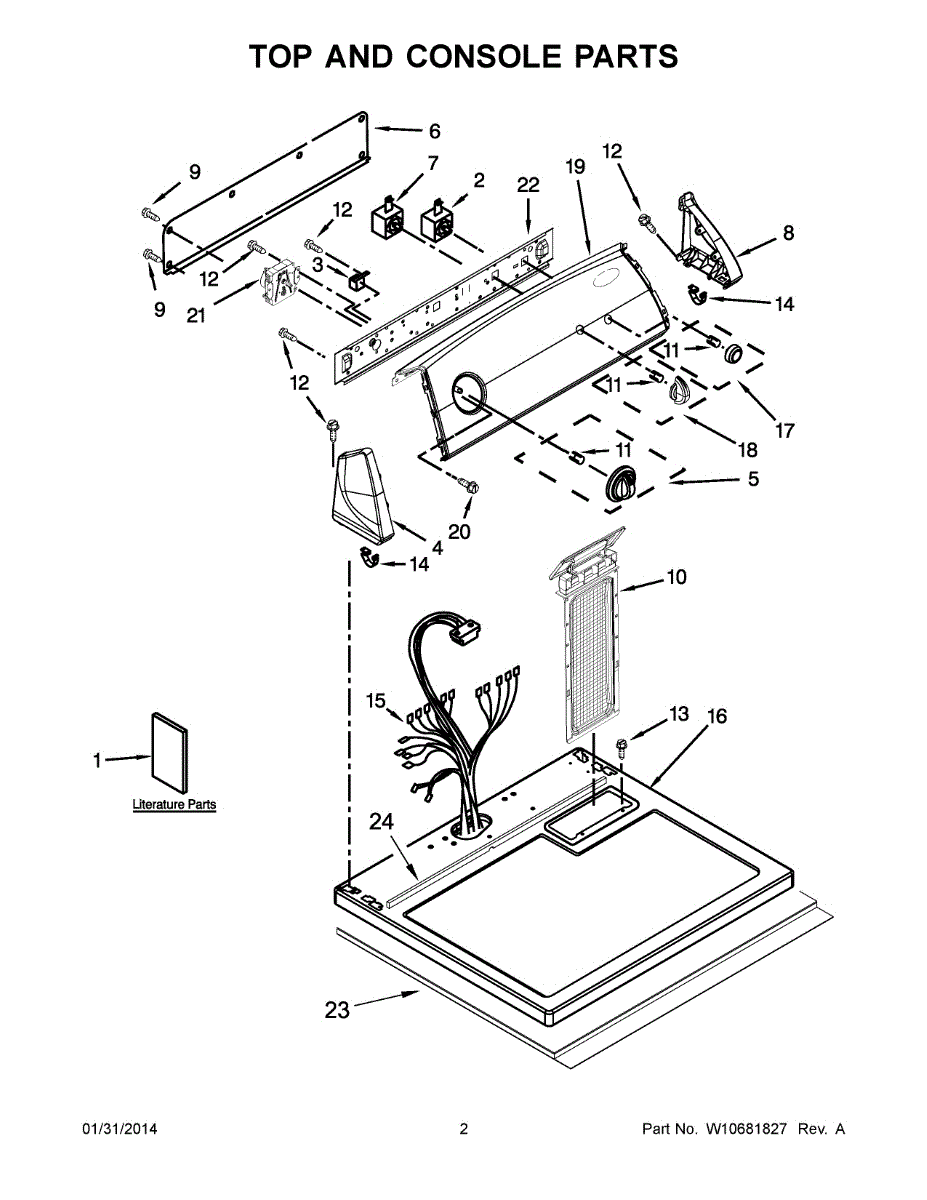

Parts for Whirlpool 7MWGD1601AW3: 02 - Top And Console Parts

Dryer won't start when button pressed? The push to start switch sends the signal to begin the cycle. Simple 10-minute fix with basic tools.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This left end cap assembly replaces a damaged or missing left-side trim piece to restore the appliance's finished appearance and protect internal components from debris. It fits where a left end cap mounts on the control/door edge. What it does:

• Covers and protects the left edge of the control panel/door area from impacts and dirt
• Restores the factory appearance when the original end cap is cracked, broken, or missing
• Helps secure adjacent trim and prevents gaps that can catch clothing or allow debris
• Prevents vibration or rattling caused by a loose or damaged end cap

• One left end cap assembly

• Disconnect power (unplug or shut off breaker) before beginning work
• Removal/installation typically requires removing nearby trim or screws; handle clips gently to avoid breakage
• Use existing mounting hardware unless replacement hardware is explicitly specified

This timer knob assembly attaches to the timer shaft and lets you accurately select cycle settings. Replace a cracked, missing, or slipping knob to restore smooth, reliable control of your appliance's timer.

• Interfaces with the timer's keyed shaft to select cycle and time settings
• Provides a solid grip to turn the timer without slipping
• Typical symptoms: knob cracked, falls off, spins freely, or won't reliably turn the timer
• Helps restore proper user control without affecting internal timer function

• Disconnect power before servicing
• Pull the old knob straight off the timer shaft; if your model uses a retaining clip or dial skirt, remove carefully for reuse
• Align the flat/keyed opening with the shaft and press on by hand until fully seated
• Rotate through settings to engage

Rear panel for dryers. Covers the back of the cabinet. Replace if cracked, damaged, or missing to restore the outer appearance and structure.

Fix a dryer that won't stop running when the cycle ends. This end of cycle switch signals the timer to stop. Simple DIY repair for most models.

Endcap trim piece that covers the console edge on your dryer. Replace if cracked, broken, or missing for a finished appearance and proper coverage.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Captures lint during each cycle to maintain airflow and prevent overheating. Replace if torn, warped, or damaged. Verify fit using your model number.

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Main top panel assembly that forms the finished top surface of your dryer. Replace if cracked, discolored, damaged, or worn to restore appearance.

Control panel knob for dryers. Installs on the front panel to select cycle settings. Replace if cracked, broken, or missing to restore control functionality.

Color: white. Measures about 2 inches in diameter.

10 - 16 x 1/2

Dryer won't shut off or stops mid-cycle? A faulty timer disrupts cycle control. This part restores proper timing and automatic shutoff functionality.

Sound absorber insulation pad for dryers. Installs inside cabinet to dampen noise and vibration. Replace if torn, compressed, or missing.

This is a foam seal that fits along the control panel area of a dryer, creating a barrier against moisture, lint, and air leaks. It helps protect internal control components from heat and debris. Replace this seal if it is cracked, compressed, or missing, which can allow lint buildup near controls or cause air leaks that reduce drying efficiency.
