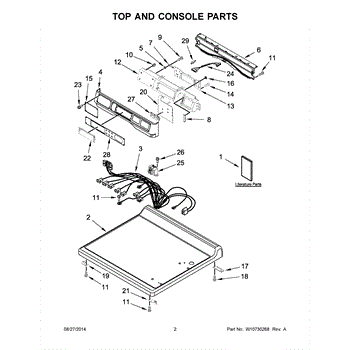

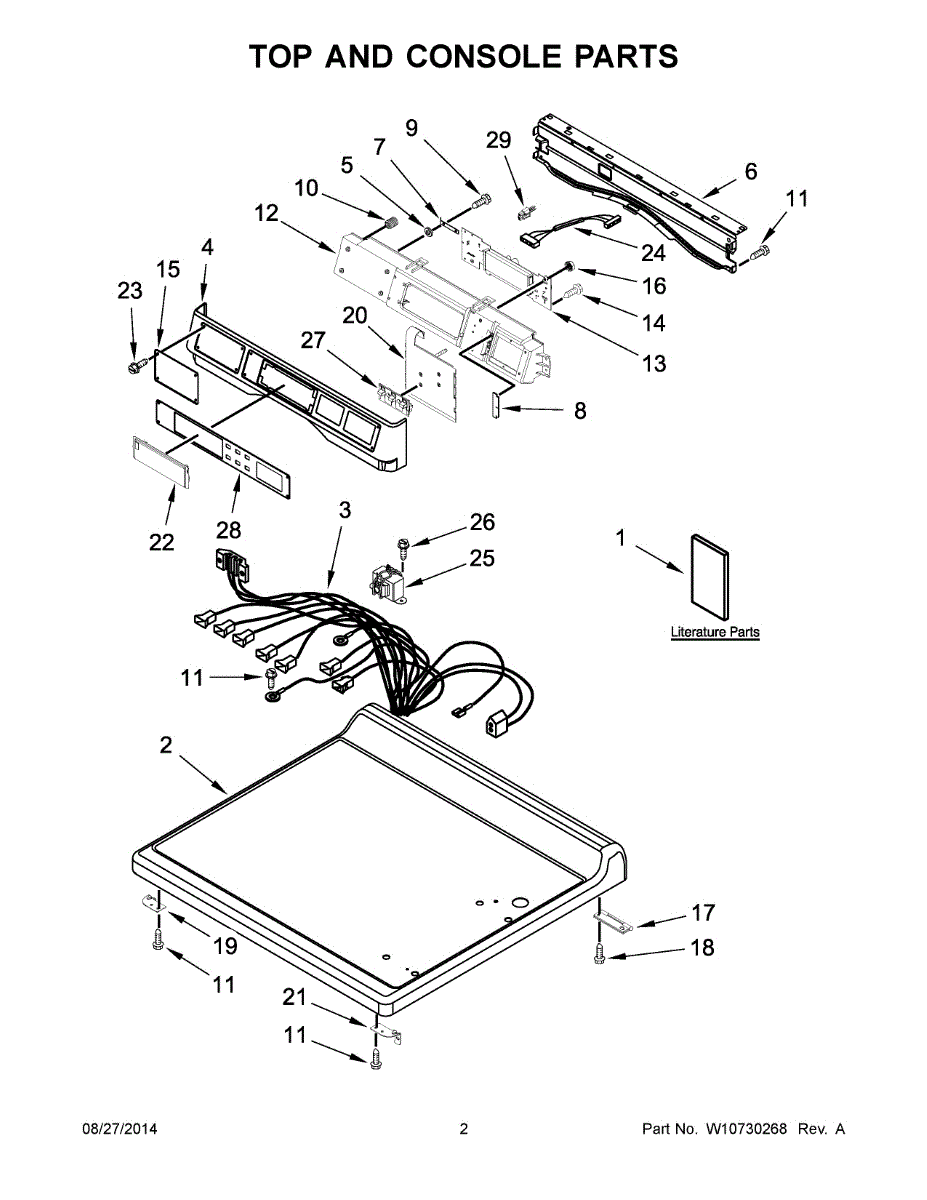

Parts for Whirlpool CED9060AW0: 02 - Top And Console Parts

This wire harness routes power and signals between the appliance control and its components, restoring reliable electrical connections for proper operation. It replaces damaged or frayed wiring to help a unit regain responsive controls and consistent power. What it does:

• Connects control board, switches, and sensors to supply power and communication paths
• Replaces worn, cracked, or burned wires that can cause intermittent or no power to controls
• Helps resolve symptoms like unresponsive buttons, control display issues, or electrical faults
• Provides factory-style plug-and-play connectors for correct fit and function

• Disconnect all power before starting; follow manufacturer service manual steps
• Inspect connectors and routing; match connector shapes and pin counts before installing
• Secure harness away from heat sources and moving parts to prevent future damage

Size: 8-32 x 1/4 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A hinge pin assembly that secures and aligns an appliance door to its cabinet, restoring proper fit and smooth opening and closing while reducing hinge noise. What it does:

• Secures the door pivot and maintains proper door alignment for a consistent seal.
• Can correct door sag, uneven gaps, or doors that stick, scrape, or fail to close fully.
• Can reduce grinding, clicking, or binding noises caused by worn or bent hinge pins.
• Replaces worn, broken, or bent hinge components that affect door motion.

• Disconnect power to the appliance before beginning any repair.
• Support the door (use a helper or suitable block) to prevent it from dropping when removing the hinge.
• Basic hand tools are typically required; follow the manufacturer's service instructions for safe removal and reinstallation.
• Inspect adjacent hinge mounts and fasteners during installation; replace damaged mounting hardware as needed.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This replacement switch restores dependable on/off control for the specific function it serves in your appliance. It helps resolve unresponsive, stuck-on, or intermittent operation of the associated light, fan, motor, or heating element.

• Opens and closes the circuit to start or stop the designated component in your model
• Failure can cause the function to not turn on, stay on, or work only intermittently
• Address issues like a loose/broken actuator or burnt internal contacts
• Direct-fit replacement designed to accept the original wiring and mounting

• Disconnect power at the breaker or unplug the appliance before servicing
• Note wire positions or take a photo; move wires to the new switch one at a time
• Ensure terminals are fully seated and the switch is securely mounted
• Restore power and test operation before final reassembly

This replacement commercial cover protects internal components and restores the appliance's exterior appearance. It keeps wiring and controls shielded from debris and accidental contact so the unit operates safely and looks finished. What it does:

• Shields internal controls and wiring from dust, spills, and accidental contact
• Restores damaged or missing exterior panels for a clean, professional appearance
• Helps prevent short circuits and component exposure caused by cracked or broken covers
• Useful when the original cover is dented, cracked, or no longer secures properly

• One commercial cover

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Basic hand tools are typically required; follow the service manual for fastener locations and order
• Inspect mounting tabs and surrounding components; replace any broken fasteners for a secure fit

This commercial-grade screw secures appliance panels and components to restore proper fit and reduce vibration. Use it to replace a missing, stripped, or damaged fastener and keep parts aligned for safe, stable operation. What it does:

• Fastens panels, brackets, or trim to the appliance chassis
• Prevents rattling or movement caused by loose or missing screws
• Restores secure attachment of control housings and access panels
• Helps maintain proper alignment of parts to avoid wear or interference

• Use the matching driver and do not overtighten to avoid stripping threads
• Replace only with the same screw type and size for secure fit
• Disconnect power and follow appliance safety precautions before servicing
• If threads are damaged, replace the mating nut or insert as needed

Control transformer that provides stable low-voltage power to the washer's control and user interface, ensuring reliable electrical signaling so cycles start and the machine operates correctly. What it does:

• Supplies the control board and user controls with the required control voltage.
• Restores power to displays, timers, and electronic controls when the transformer has failed.
• Common symptom: machine is dead, display is blank, or cycles won't start.
• Can cause intermittent power or control glitches before full failure.

• Disconnect power before servicing to avoid shock—follow lockout/tagout if required.
• Compare part number and mounting style to the original before installation.
• Handle terminals and wiring carefully; secure all connections and mounting hardware.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement button restores a clean, responsive press on your appliance's control. Replace a cracked, worn, or missing button cap so the underlying switch or mechanism can be activated reliably again.

• Provides the user-facing actuator for a specific control or feature
• Transfers your press to the switch behind the console or panel
• Helps correct sticking, binding, or inconsistent feel when pressed
• Typical signs include a cracked or missing cap, loose fit, or difficulty engaging the function

• Disconnect power to the appliance before servicing
• Access the control area; release retaining tabs or fasteners and note orientation
• Transfer any reusable hardware from the original part
• Reassemble and test the button for proper travel and function before finalizing
