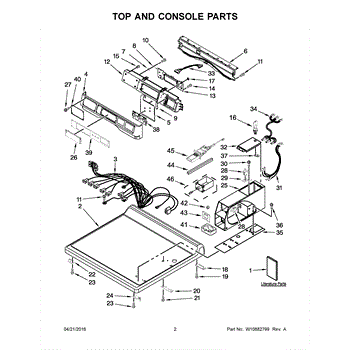

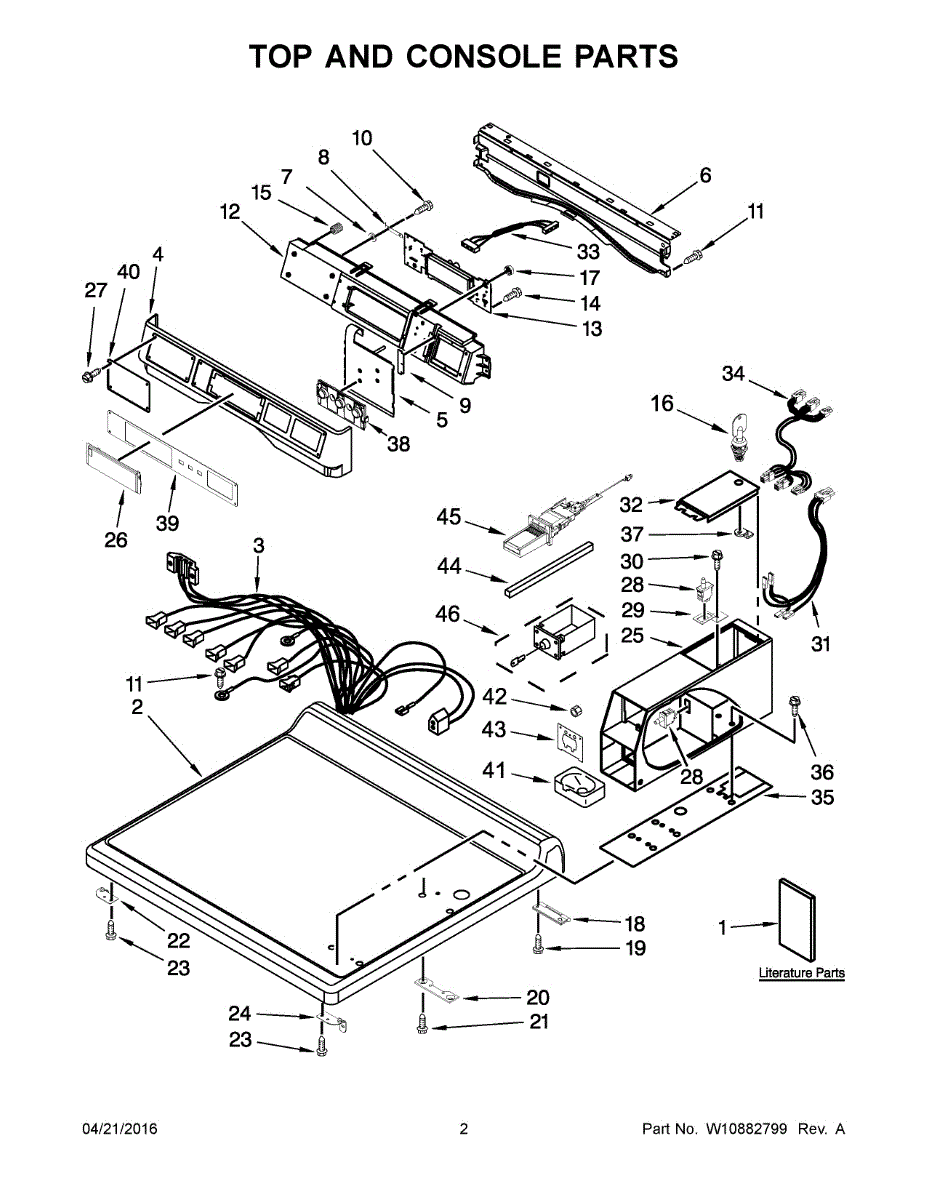

Parts for Whirlpool CGD9050AW1: 02 - Top And Console Parts

This replacement switch restores dependable on/off control for the specific function it serves in your appliance. It helps resolve unresponsive, stuck-on, or intermittent operation of the associated light, fan, motor, or heating element.

• Opens and closes the circuit to start or stop the designated component in your model
• Failure can cause the function to not turn on, stay on, or work only intermittently
• Address issues like a loose/broken actuator or burnt internal contacts
• Direct-fit replacement designed to accept the original wiring and mounting

• Disconnect power at the breaker or unplug the appliance before servicing
• Note wire positions or take a photo; move wires to the new switch one at a time
• Ensure terminals are fully seated and the switch is securely mounted
• Restore power and test operation before final reassembly

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This electronic control board manages the oven/dryer console functions and user interface so options, timers and cycle commands are processed reliably. It restores control responsiveness and feature selection when the board is the root cause. What it does:

• Controls user inputs, display updates and cycle logic for the appliance console.
• Sends signals to start/stop cycles and to other modules based on selected settings.
• Common symptom indicator: unresponsive buttons, blank or erratic display, or inability to start cycles.
• Replaces a failed console circuit board to restore normal control operation.

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock.
• Handle the board by edges and avoid touching components; use ESD precautions if available.
• Installation typically requires removing the control console using basic hand tools; keep fasteners for reassembly.

This lock cam is a small actuator that drives the appliance's door-lock mechanism. It translates the lock actuator's movement into a positive latch, helping the door lock securely when required and release correctly so cycles start and finish properly.

• Interfaces with the lock actuator and latch to engage and release the lock
• Wear, cracking, or rounding can cause the lock not to engage or to stick
• Common symptoms include a door/lid that won't lock or unlock, loose lock lever, clicking without latching, or door/lock-related error messages
• Restores proper linkage travel and switch actuation when the original cam is worn or damaged

• Disconnect power to the appliance before servicing
• Access the lock mechanism per your model; note the cam's orientation and any springs/linkages
• Install the new cam fully seated and ensure it engages the actuator and latch smoothly
• Reassemble, restore power, and test lock operation

A hinge pin assembly that secures and aligns an appliance door to its cabinet, restoring proper fit and smooth opening and closing while reducing hinge noise. What it does:

• Secures the door pivot and maintains proper door alignment for a consistent seal.
• Can correct door sag, uneven gaps, or doors that stick, scrape, or fail to close fully.
• Can reduce grinding, clicking, or binding noises caused by worn or bent hinge pins.
• Replaces worn, broken, or bent hinge components that affect door motion.

• Disconnect power to the appliance before beginning any repair.
• Support the door (use a helper or suitable block) to prevent it from dropping when removing the hinge.
• Basic hand tools are typically required; follow the manufacturer's service instructions for safe removal and reinstallation.
• Inspect adjacent hinge mounts and fasteners during installation; replace damaged mounting hardware as needed.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement commercial cover protects internal components and restores the appliance's exterior appearance. It keeps wiring and controls shielded from debris and accidental contact so the unit operates safely and looks finished. What it does:

• Shields internal controls and wiring from dust, spills, and accidental contact
• Restores damaged or missing exterior panels for a clean, professional appearance
• Helps prevent short circuits and component exposure caused by cracked or broken covers
• Useful when the original cover is dented, cracked, or no longer secures properly

• One commercial cover

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Basic hand tools are typically required; follow the service manual for fastener locations and order
• Inspect mounting tabs and surrounding components; replace any broken fasteners for a secure fit

This commercial-grade screw secures appliance panels and components to restore proper fit and reduce vibration. Use it to replace a missing, stripped, or damaged fastener and keep parts aligned for safe, stable operation. What it does:

• Fastens panels, brackets, or trim to the appliance chassis
• Prevents rattling or movement caused by loose or missing screws
• Restores secure attachment of control housings and access panels
• Helps maintain proper alignment of parts to avoid wear or interference

• Use the matching driver and do not overtighten to avoid stripping threads
• Replace only with the same screw type and size for secure fit
• Disconnect power and follow appliance safety precautions before servicing
• If threads are damaged, replace the mating nut or insert as needed

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

This is the factory replacement microwave door assembly. It restores a smooth, secure door closure and proper operation so the unit can open and close reliably and look like new. What it does:

• Provides a complete, aligned door to open/close the cavity smoothly
• Ensures latch hooks engage properly so the appliance can operate
• Replaces doors that are cracked, warped, or have broken handle mounts
• Addresses issues like the unit not starting unless the door is pressed, or stopping when the door is moved
• Helps resolve sparking/arcing around the door opening caused by a damaged door choke or screen

• One door assembly

• Disconnect power at the breaker before servicing; microwaves contain high-voltage components
• For over-the-range units, support or remove the microwave from the wall to safely access and handle the door
• Transfer any reusable hardware/hinge pins/trim from the original door as needed
• Align the hinges and verify the door closes, latches, and opens smoothly before remounting

This coin funnel channels coins from the coin slide/drop into the collection box on coin-operated laundry equipment. Replacing a damaged or missing funnel restores smooth coin flow and helps prevent jams and lost coins inside the cabinet.

• Guides coins from the slide/drop into the collection/coin box
• Helps prevent coins from spilling into the cabinet and causing jams
• Cracks, warping, or misalignment can cause coin back-ups or coins showing up inside the machine
• Visible damage or frequent coin jams indicate the funnel should be replaced

• Disconnect electrical power before servicing; for gas dryers, also shut off gas supply
• Remove coin box and open the meter case/console to access the funnel
• Reuse existing mounting hardware; install the new funnel in the same orientation
• Clear debris and test coin travel by hand before reassembly and returning to service

Size: 10-32

This replacement funnel guides dryer airflow from the drum into the lint screen housing. Replacing a cracked or missing funnel helps restore a tight air path for efficient drying and keeps lint contained inside the proper ductwork.

• Directs exhaust air from the drum into the lint screen/duct path
• Helps prevent lint blowback and cabinet contamination
• A damaged or warped funnel can cause longer dry times and poor airflow
• Contribute to excess lint in the drum or overheating symptoms

• Disconnect power; for gas models, also shut off the gas supply
• Access is typically through the top or front panel; remove lint duct fasteners as needed
• Transfer and reuse existing mounting hardware and any seals
• Clean lint from mating ducts and ensure an airtight fit before reassembly

This 1/4-20 bolt secures appliance panels, brackets, and components to keep assemblies stable and aligned. It's a direct-fit fastener used where a standard 1/4-20 machine screw is required. What it does:

• Fastens panels, mounting brackets, and internal components to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises
• Restores proper alignment for components that won't sit flush or move under load
• Replaces corroded, stripped, or missing hardware that can cause loose assemblies

• One 1/4-20 bolt

• Disconnect power to the appliance before performing any repairs
• Use the correct socket or wrench for a secure fit; avoid rounded fasteners
• Tighten snugly but avoid over-torquing to prevent thread damage or stripped holes
• Ensure mating threads are clean and free of debris

This coin chute guides coins from the slide into the coin mechanism so the machine can register payment and begin a cycle. Keeping the chute intact and aligned helps prevent jams and misfeeds in coin-operated laundry equipment.

• Directs coins from the slide to the coin mechanism to register payment
• Helps ensure smooth coin drop, reducing bounce-back and misfeeds
• Common fix when coins jam, fall into the cabinet, or the unit won't start after payment
• Replace if cracked, bent, corroded, or missing

• Disconnect power; shut off gas before service
• Open the coin housing/slide assembly and retain existing hardware
• Install the new chute in the same orientation; align with slide and mechanism, then secure
• Test with sample coins to ensure proper drop and operation before returning to service

The Coin Box is an OEM replacement part for Whirlpool combo washer/dryers. It provides a storage space for coins used to operate the unit. The coin box slots ensure collected change remains safe and secures payments for laundry cycles.

Causes of a bad coin box can be normal wear from hundreds of deposits, minerals clogging slots, or physical damage compromising security.

Symptoms of a bad coin box include:

• Coins not being accepted or properly collected
• Box distorting shape or developing cracks over time
• Change falling out or going missing

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.
