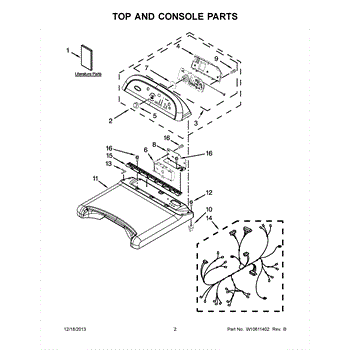

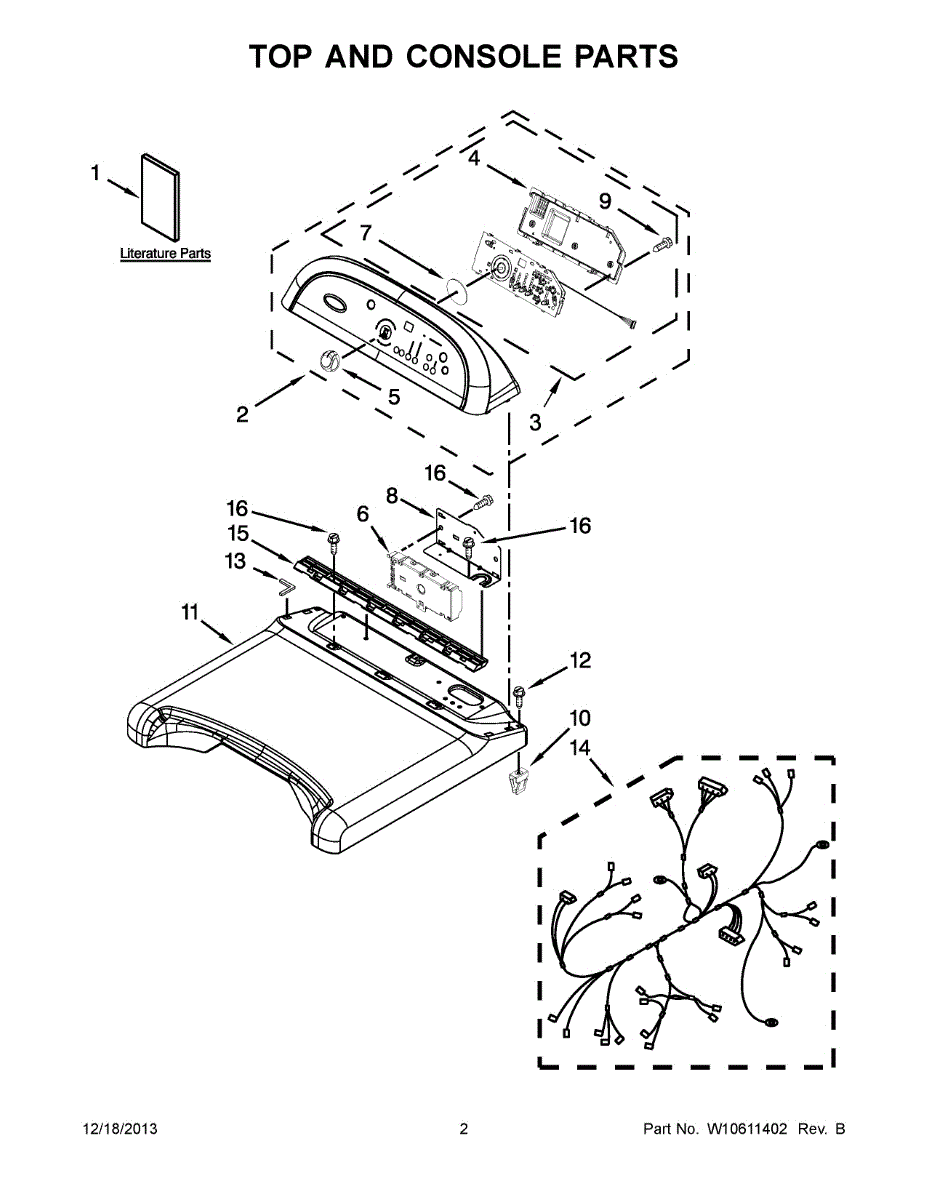

Parts for Whirlpool WED8500BR0: 02 - Top And Console Parts

This is a dryer control board. This component is one of the most important in the dryer since it controls many of the important features of the appliance. For instance, it determines the time and temperature for a cycle of clothes going through the drying process. This part can be damaged over time or through regular use and may need to be replaced.If the control board is malfunctioning, it might cause the dryer to stop heating, alter cycle length, or prevent the appliance from starting at all. Start the process by making sure the dryer is unplugged. A set of tools and work gloves will be useful for the process. Unscrew and remove the top panel before disconnecting the control panel housing. The wires are connected to the control board before disconnecting them. Reattach them to the new component and reassemble the appliance.This is a dryer control board for Whirlpool appliances. It is sold as an authentic OEM replacement part that is sourced directly from the manufacturer. This part is sold on an individual basis.

This electronic control board coordinates the appliance's operations by processing inputs and sending power to critical components. Replacing a failed board can restore reliable performance when the unit won't start, stops mid-cycle, shows error codes, or behaves unpredictably.

• Directs cycle timing and power to motors, valves, heaters, and other loads
• Interprets user interface commands and sensor feedback to run selected programs
• Manages safety checks and built-in diagnostics
• Failure symptoms include: won't start/respond, cycle won't advance, stops mid-cycle, error codes, or intermittent/erratic operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD precautions and handle the board by the edges
• Transfer any brackets, covers, or jumpers from the original board if required
• Label or photograph wiring, then move one connector at a time to the matching terminals

Screw for control panel.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
