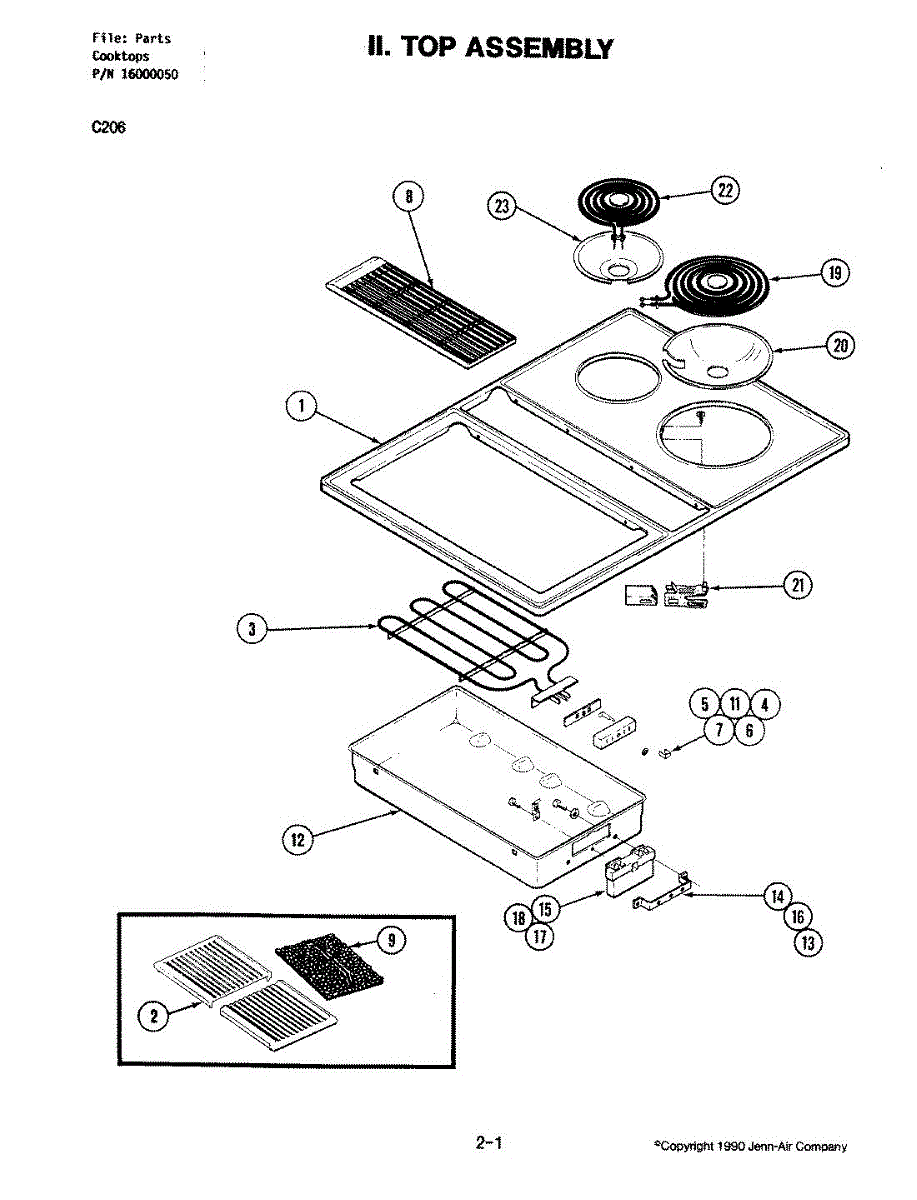

Parts for Jenn-Air C206B: 04 - Top Assembly Parts

This part has been discontinued and is no longer available.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

Stamped metal retaining clip that secures screws to panels and trim. Replace if clip is bent, broken, or missing to properly fasten covers and components.

Includes one rock plate. 2 used per unit. For the support order 700819.

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection

This surface burner replaces a damaged or worn cooktop burner to restore even heating on gas ranges. It's a direct-fit cooking element that helps maintain consistent flame distribution for safe, reliable stovetop use. What it does:

• Replaces a faulty surface burner to restore normal flame and heating performance
• Provides a stable base for cookware and consistent heat spread across the cooking zone
• Helps stop uneven cooking, weak or irregular flames, and intermittent ignition issues tied to a damaged burner
• Matches the OEM shape and mounting points for proper alignment and operation

• Turn off gas supply and disconnect power to the appliance before servicing
• Replace only when the range is cool; handle with care to avoid bending or damaging mounting tabs
• Verify gas connections and check for leaks after installation before using

Hex head sheet metal screw secures appliance panels, brackets, and trim. Replace missing, stripped, or damaged screws to keep covers firmly attached.

This ceramic receptacle provides the electrical connection point for a plug-in heating element on a range or cooktop. It mounts inside the cooktop surface and receives the element's terminal prongs to deliver power. Replace this part if the element fails to heat, heats intermittently, or if the receptacle shows signs of burning, arcing, or melting.

This small metal grounding clip attaches to internal components of the range to ensure a proper electrical ground connection. It helps maintain safe operation by preventing static buildup and electrical faults. Replace this clip if it is bent, broken, or missing, which could lead to intermittent electrical issues or safety concerns.

Screw: 8-16 x 3/8 inch.

Burner not heating or heating intermittently? This 8-inch surface element restores your cooktop. Easy DIY repair—just unplug the old, plug in the new.

Burner not heating or heating intermittently? This 8-inch surface element restores your cooktop. Easy DIY repair—just unplug the old, plug in the new.

This 8 inch drip pan installs under coil burners to catch spills and protect your cooktop. Replace cracked, rusted, or heavily stained pans to restore appearance.

This electrical connection kit provides secure terminals where your range's surface heating elements plug into the cooktop. It ensures proper electrical contact and power delivery to the burners. Replace when burner elements don't heat properly, connections appear burned, or elements won't stay securely in place.

Burner not heating or working on your range? This surface heating element restores cooking performance. Simple plug-in replacement in under 10 minutes.

Replacement 6-inch drip pan for electric ranges and cooktops. Installs under burner element to catch spills and debris. Replace if cracked or warped.

This rock plate support is used on many of the Jenn-air grill cartridge rock plates.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
