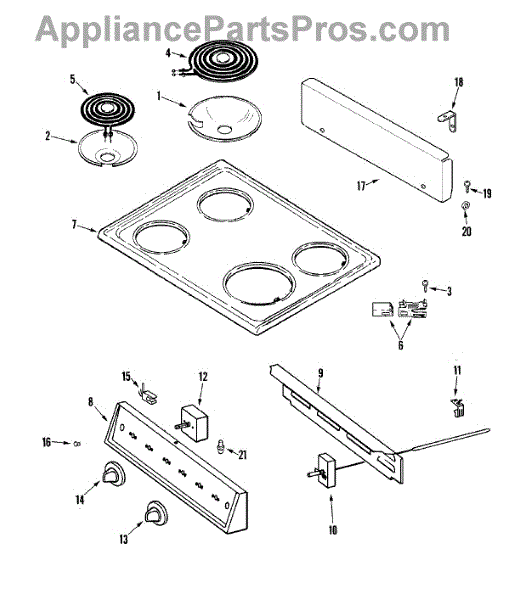

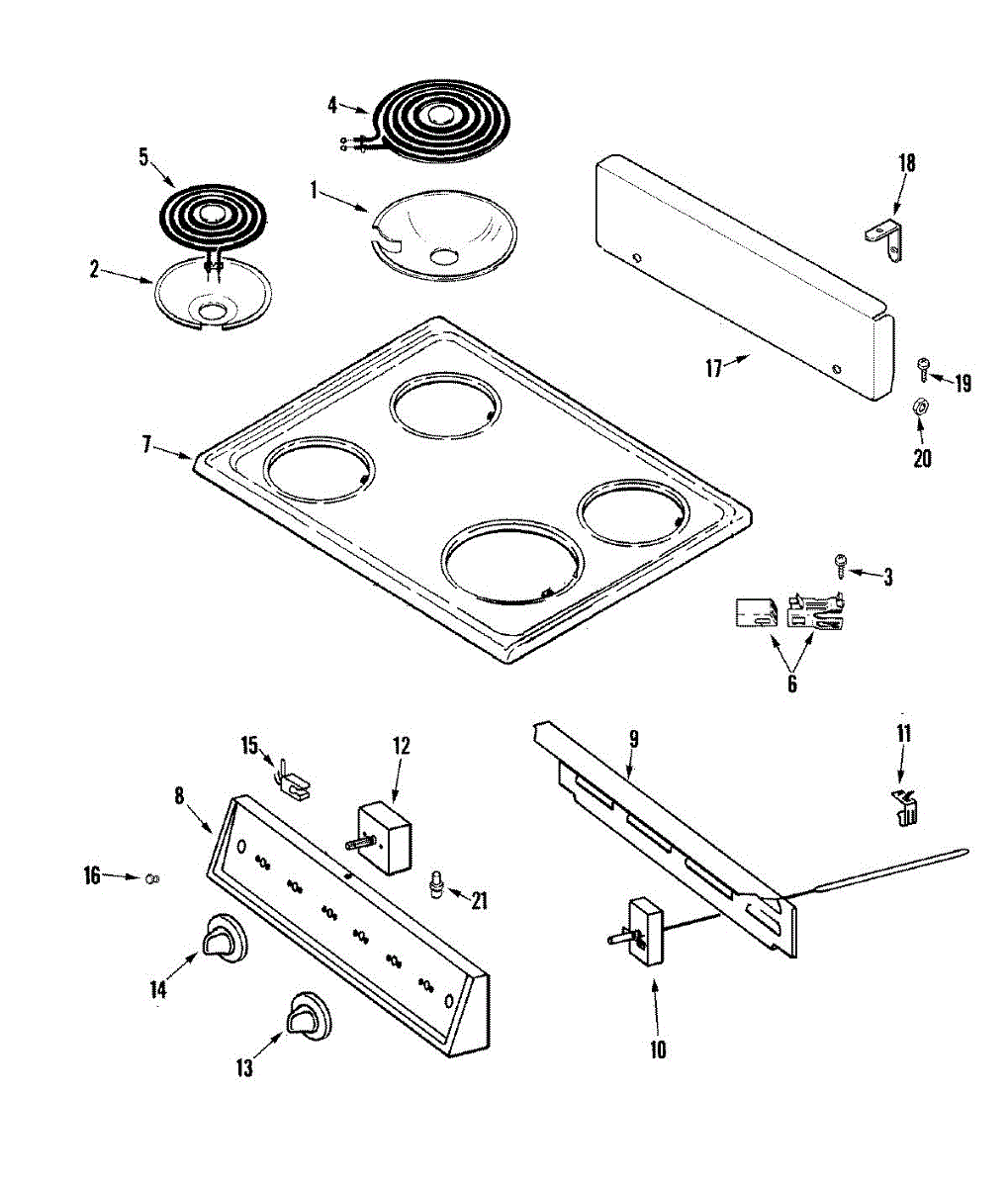

Parts for Magic Chef CEL1115AAW: 04 - Top Assembly / Control Panel(Aaq / Aaw) Parts

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This Surface Element is an OEM part for Whirlpool cooktops and ranges. It is responsible for generating heat, which is essential for various cooking tasks. This is the 8-inch element with 4 turns. For the 6-inch element, you will need part number WPW10345407.

Causes of a faulty surface element can include wear and tear over time, electrical component failure, or damage due to overheating or impact. These factors can result in the element not heating up properly, uneven heat distribution, or the element not working at all.

Symptoms of a bad surface element may include:

• No heat or inadequate heat generated
• Uneven cooking or hotspots on the cookware
• The element not turning on or functioning intermittently

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Note: For the Receptacle Kit, order part number 330031.

Restore steady cooking performance with this surface element coil. The 6-inch, 1250-watt burner replaces a worn or open coil so your range heats properly for everyday simmering, sautéing, and boiling.

• Generates heat on a 6-inch cooking zone for boiling, sautéing, and simmering
• Fixes a burner that won't heat or only heats intermittently
• Addresses uneven heating or unusually slow warm-up
• Helps when the coil shows visible breaks, blistering, or burned spots

• Disconnect power at the breaker and let the cooktop cool completely
• Remove the old coil and inspect the receptacle/terminal block; replace if burnt or loose
• Align prongs and press the new coil fully into the receptacle; ensure the support bracket seats in the drip pan notch
• After installation, test the burner with a pan to ensure even heating

The Terminal Block Kit is an OEM part for Whirlpool cooktops. It is a crucial component that provides a secure connection point for electrical wires and cables within the appliance's control system.

Symptoms of a faulty terminal block kit:

• Intermittent power supply or electrical issues
• Burnt or melted wires or connectors
• Appliance not receiving or responding to electrical signals correctly
• Visible damage or corrosion on the terminal block

Causes of a bad terminal block kit include excessive heat exposure, loose connections, moisture or water damage, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This thermostat is a temperature-sensitive safety switch for range and wall-oven systems. It opens or closes its electrical contacts at a set temperature to help regulate heat, protect components, and keep the appliance operating safely and reliably.

• Senses temperature and opens/closes the circuit at its calibrated threshold
• Helps prevent overheating by interrupting power when excessive heat is detected
• Automatically resets once temperatures drop, depending on design and application
• Common failure signs include no heat, heat dropping out during preheat/bake, or no continuity through the thermostat when cool

• Disconnect power at the breaker; if gas, also shut off the gas supply before servicing
• Access the part per your model; photograph wiring and move connectors to the new thermostat one at a time
• Reinstall in the original orientation and location so it senses heat correctly; do not alter factory routing
• After installation, run a brief test cycle to confirm normal operation

This mounting clip secures a thermostat, temperature sensor, or capillary bulb in the correct position so it can sense temperature accurately and control the appliance. Replacing a damaged or missing clip helps prevent loose components and erratic readings. What it does:

• Holds the thermostat or sensor firmly against its mounting surface for proper thermal contact
• Helps maintain stable, accurate temperature regulation
• Replaces a bent, broken, or missing clip that won't hold securely
• Common symptoms include a dangling sensor/bulb, rattling, or inconsistent temperature response

• 1 clip

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely before service
• Access the thermostat/sensor area and note original orientation and routing
• Move the component into the new clip and secure it at the original mounting location
• Avoid kinking a capillary tube or damaging sensor leads; the clip is fully seated

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

Infinite switch that controls the top surface burner's heat range, restoring adjustable temperature settings and proper burner response. Replace a failed switch when a surface element won't heat or loses variable control. What it does:

• Regulates power to a surface element so you can select low-to-high heat; failure can cause no heat or only high heat.
• Provides stepped/infinite heat selection for smooth temperature changes; intermittent or erratic heating often indicates switch wear.
• Completes the circuit between the control knob and the burner element; an unresponsive or cycling burner can point to a bad switch.
• Physical symptoms may include a loose knob, inability to hold selected settings, or a surface element that won't turn on.

• Disconnect power at the breaker before servicing and work only on a cool cooktop.
• Access may require removing the element or lifting the cooktop.
• Match and secure wire terminals exactly; do not bend or force terminals. Confirm all connections are correct before restoring power.

Infinite switch (6") replaces the rotary control that regulates power to an electric cooktop or range surface element, restoring adjustable heat control so burners respond correctly when you change the knob. What it does:

• Regulates variable power to a surface heating element, allowing smooth, stepped heat adjustments.
• Replaces a failed or worn control that causes a burner to not heat or only heat on certain settings.
• Can correct symptoms like no heat, burner stuck on one setting, or inconsistent element behavior.
• Operates as the user-facing control behind the range knob for manual temperature selection.

• Disconnect electrical power at the breaker before servicing to prevent shock.
• Access is usually from the back or front control panel; remove knobs and any backguard per your service manual.
• The replacement switch matches the old part's shaft length and terminal layout before installation.

Color: White

This replacement white infinite-switch knob restores precise temperature control for electric surface burners. It fits standard shaft-style infinite switches and provides a simple, visible control for cooktop heating adjustments. What it does:

• Replaces a worn, cracked, or missing infinite-switch control knob to regain reliable burner control
• Slides onto the stove or range infinite switch shaft to adjust heat settings smoothly
• Helps resolve symptoms like loose spinning knobs, difficulty selecting heat levels, or missing pointer alignment
• Matches original appearance for a clean, factory-look control panel

• One white infinite-switch control knob

• Remove power to the appliance before servicing to avoid risk of shock
• Pull the old knob straight off the switch shaft; push the new knob fully onto the shaft until seated
• No special tools typically required;

Replacement indicator light for control panels that restores visible status and cycle feedback. Ideal when the control-panel light is dim, cracked, or not illuminating—helps active functions and cycle progress at a glance. What it does:

• Illuminates to indicate active functions and cycle/status information on the control panel.
• Replaces a cracked, burnt-out, dim, or non-functioning indicator light.
• Common symptoms it can fix: a dark, flickering, or intermittently working panel indicator.

• Disconnect power (unplug or shut off the circuit breaker) before servicing the appliance.
• Access may require removing the control panel or lens; follow the owner's manual or service guide for panel removal.
• Handle the light and lens carefully to avoid damage; avoid touching bulb surfaces with bare hands.

This replacement light lens covers the appliance's bulb, protecting it from contact, moisture, and splashes while diffusing illumination. Replacing a cracked or missing lens restores safe, even lighting and keeps the bulb properly shielded. What it does:

• Shields the bulb from contact, moisture, and debris
• Diffuses light for more even illumination with reduced glare
• Helps protect the socket area from contamination
• Typical symptoms: cracked, warped, or missing lens; discoloration; exposed bulb; harsh or uneven lighting

• Includes: 1 light lens

• Disconnect power to the appliance before servicing; allow the lamp/area to cool completely
• Wear gloves and eye protection when handling an old or broken lens
• Remove retaining screws, tabs, or clips and note lens orientation for reassembly
• Reuse existing hardware if required; do not overtighten; restore power and test light operation
