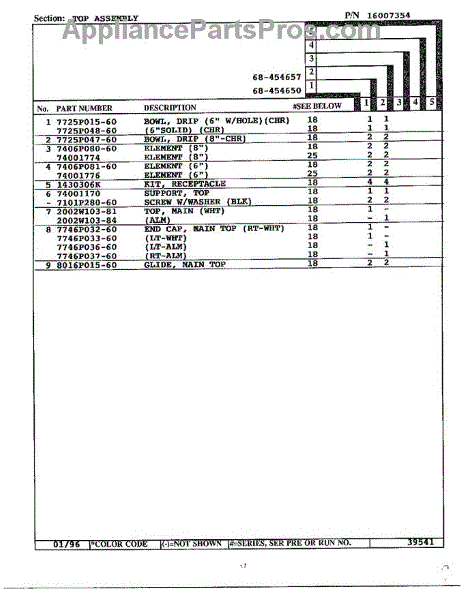

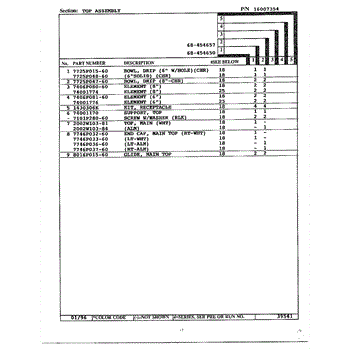

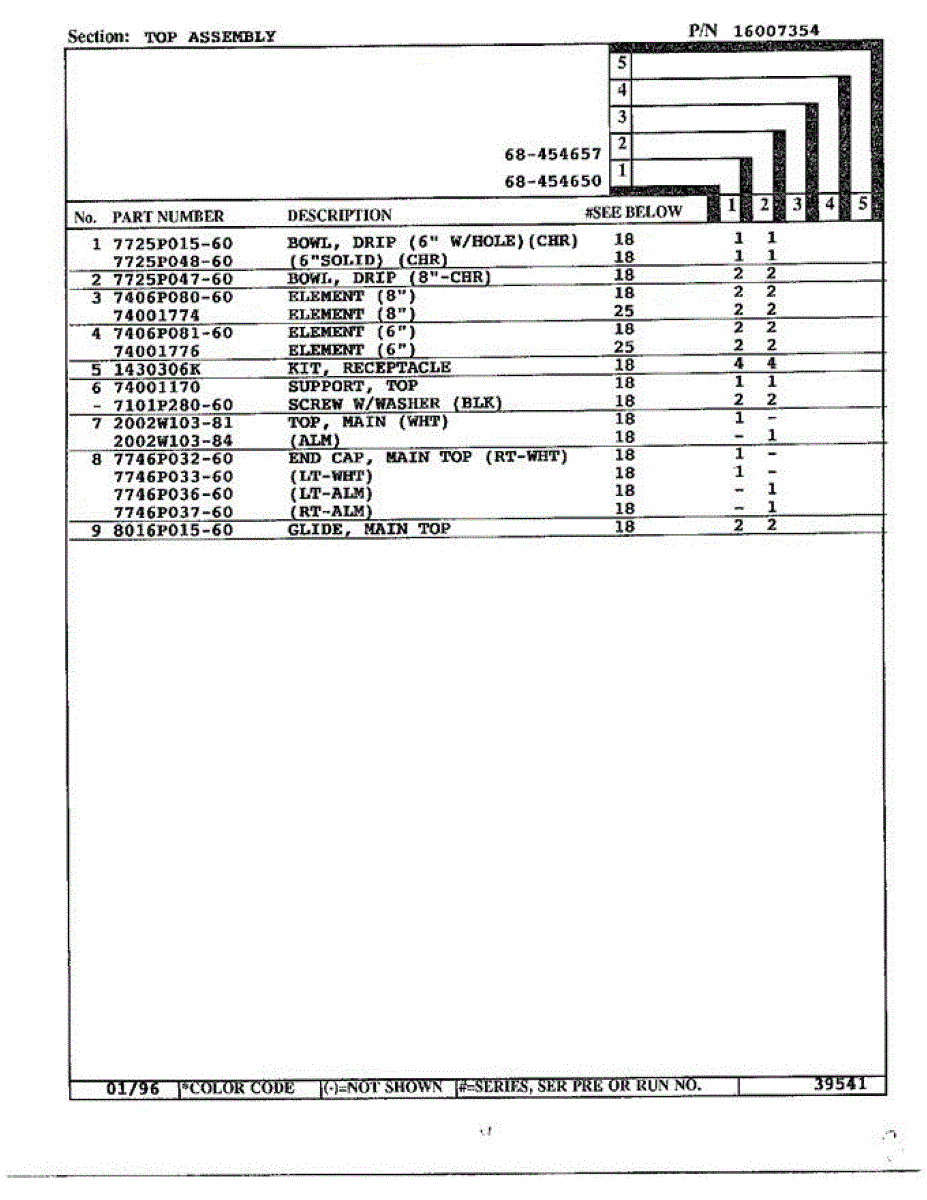

Parts for Magic Chef 68-454650: Top Assembly Page 2 Parts

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

This 8-inch surface element kit restores reliable heat on your electric range or cooktop. Replace a failed burner so pots heat evenly and settings respond as expected across your 8-inch cooking zone.

• Heats the 8-inch surface burner for everyday boiling, simmering, and frying
• Replaces a burned-out or damaged element to restore consistent performance
• Helps eliminate weak, uneven, or intermittent heating
• Common symptoms: surface burner won't heat, heats inconsistently, or shows obvious damage

• Disconnect power at the breaker or unplug the appliance before servicing; allow all components to cool completely
• Note wire/terminal positions and transfer any mounting parts from the old element if required
• Ensure terminals are fully seated and the element is properly supported/seated before use
• After installation, test on low and high settings to confirm proper operation

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

The Terminal Block Kit is an OEM part for Whirlpool cooktops. It is a crucial component that provides a secure connection point for electrical wires and cables within the appliance's control system.

Symptoms of a faulty terminal block kit:

• Intermittent power supply or electrical issues
• Burnt or melted wires or connectors
• Appliance not receiving or responding to electrical signals correctly
• Visible damage or corrosion on the terminal block

Causes of a bad terminal block kit include excessive heat exposure, loose connections, moisture or water damage, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This main top glide supports the dryer drum and reduces friction for smooth rotation, helping prevent drum wear and noisy operation. It replaces a worn glide to restore proper drum tracking and quieter drying cycles. What it does:

• Provides a low-friction bearing surface for the dryer drum to ride on
• Helps maintain correct drum alignment and smooth rotation
• Reduces squeaks, scraping noises, and uneven drum wear
• Protects the drum and cabinet contact points from damage

• One main top glide

• Use basic hand tools; access requires opening the dryer cabinet per your model's service manual
• Inspect matching bottom glides/rollers and replace as needed for best results
• Disconnect power (and gas supply if applicable) before beginning repairs
