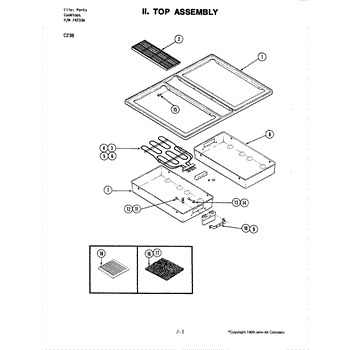

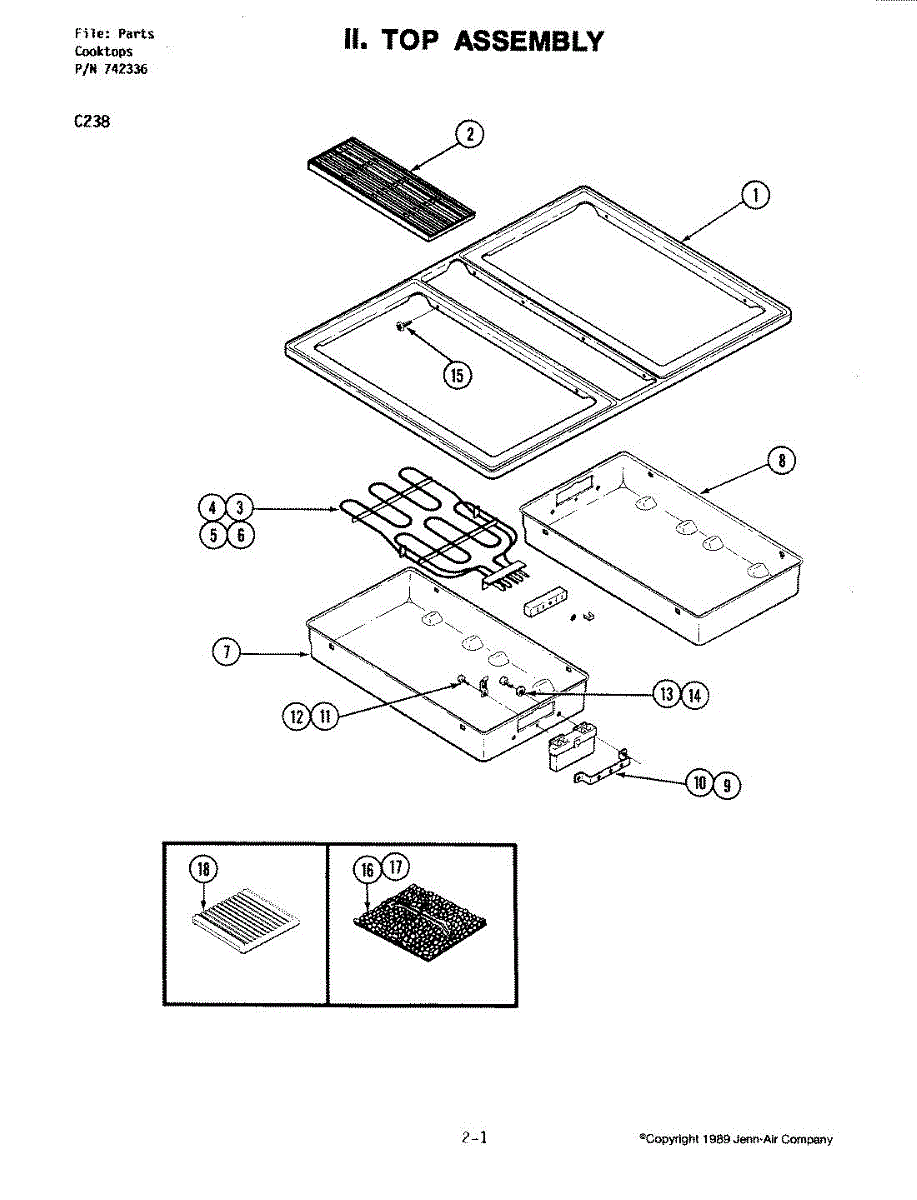

Parts for Jenn-Air C238: 04 - Top Assembly Parts

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This speed nut is a stamped metal retaining clip designed to hold screws or fasteners securely to appliance panels and trim. It provides a simple, vibration-resistant connection that keeps covers and components in place. What it does:

• Secures screws to thin sheet metal or panel edges where a threaded hole isn't available
• Provides a firm, vibration-resistant attachment for panels, trim, or small components
• Helps prevent screws from loosening or backing out during normal use
• Commonly used where a captive nut or clip is required for assembly or repair

• One speed nut / retaining clip

• Disconnect power and unplug the appliance before starting any repair
• Position the clip over the panel edge or hole so the screw can engage the clip's thread; press or tap gently until seated
• Use the correct screw size and avoid over-tightening to prevent deforming the clip or striping threads
• Wear gloves and eye protection when handling sharp sheet metal edges

This wire harness, also called a contact wire assembly, restores reliable factory connections between the appliance's controls and components. Replacing a damaged harness helps resolve intermittent or failed operation caused by burnt, brittle, or loose wiring and terminals.

• Provides the electrical pathway between controls, switches, and related components
• Can help address intermittent operation or a component that won't run/respond
• Replaces wiring with burned, melted, cut, or corroded insulation/terminals
• Restores proper routing and insulation to reduce shorts, arcing, or overheating

• Disconnect power at the breaker before servicing; also shut off gas supply
• Access the harness by removing necessary panels/knobs; label or photograph connections for reference
• Route the new harness in the original clips/grommets, away from sharp edges and hot or moving parts
• Push connectors on fully until secure; reassemble and test operation

This is a high-heat ceramic light receptacle used in select appliances. It provides a safe, insulated socket for the appliance light bulb so you can reliably see inside during use or service.

• Holds and insulates the bulb in high-temperature areas
• Restores lighting when the bulb is good but the light won't turn on
• Helps correct loose, flickering, or intermittent interior light
• Common signs include a cracked/scorched socket or arcing at the bulb base

• Disconnect power before servicing; allow the appliance to cool completely
• Access may be from inside the cavity or from the rear panel, depending on model
• Transfer wires one at a time to the new receptacle to maintain correct connections
• Install only the bulb type and wattage specified by the appliance manufacturer

This clip secures appliance panels or small components to maintain alignment and reduce vibration, restoring the original fit where a worn or broken fastener allows movement or rattling. Simple, direct-fit replacement when the original clip fails. What it does:

• Holds trim, panels, or small components in position to prevent rattling and shifting.
• Replaces broken or missing fasteners that allow loose or misaligned parts.
• Helps keep wiring harnesses or insulation routed and secured in assemblies.
• Small, inexpensive part commonly used wherever a retaining clip is specified.

• Always disconnect power (unplug or shut off circuit) before servicing the appliance.
• Remove panels or trim per the manufacturer service sheet to access the clip; note the clip orientation before removal.
• Use appropriate tools (needle-nose pliers, trim tool) and avoid over-bending the clip or adjacent parts.
• Replace them with the correct OEM-specified clips for reliable fit.

Screw: 8-16 x 3/8 inch.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Includes one rock plate. 2 used per unit. For the support order 700819.

This rock plate support is used on many of the Jenn-air grill cartridge rock plates.

Color: Black. Includes two grates.
