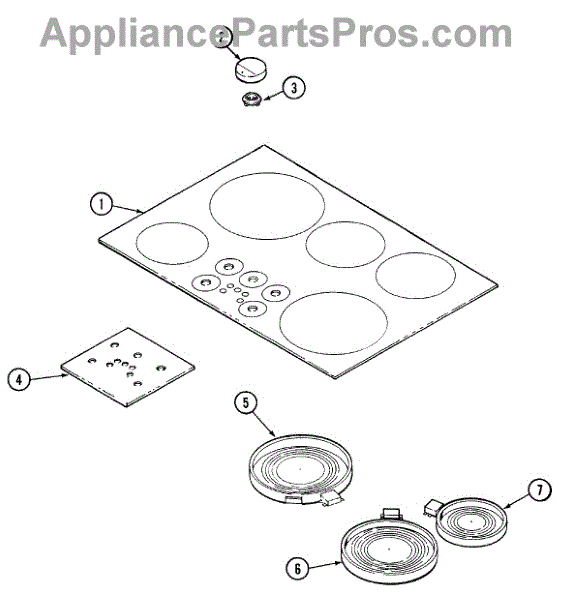

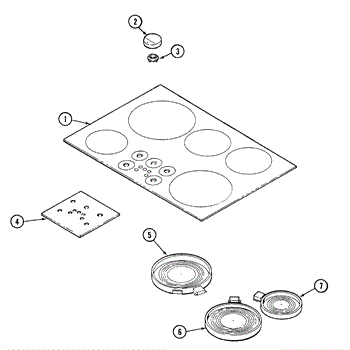

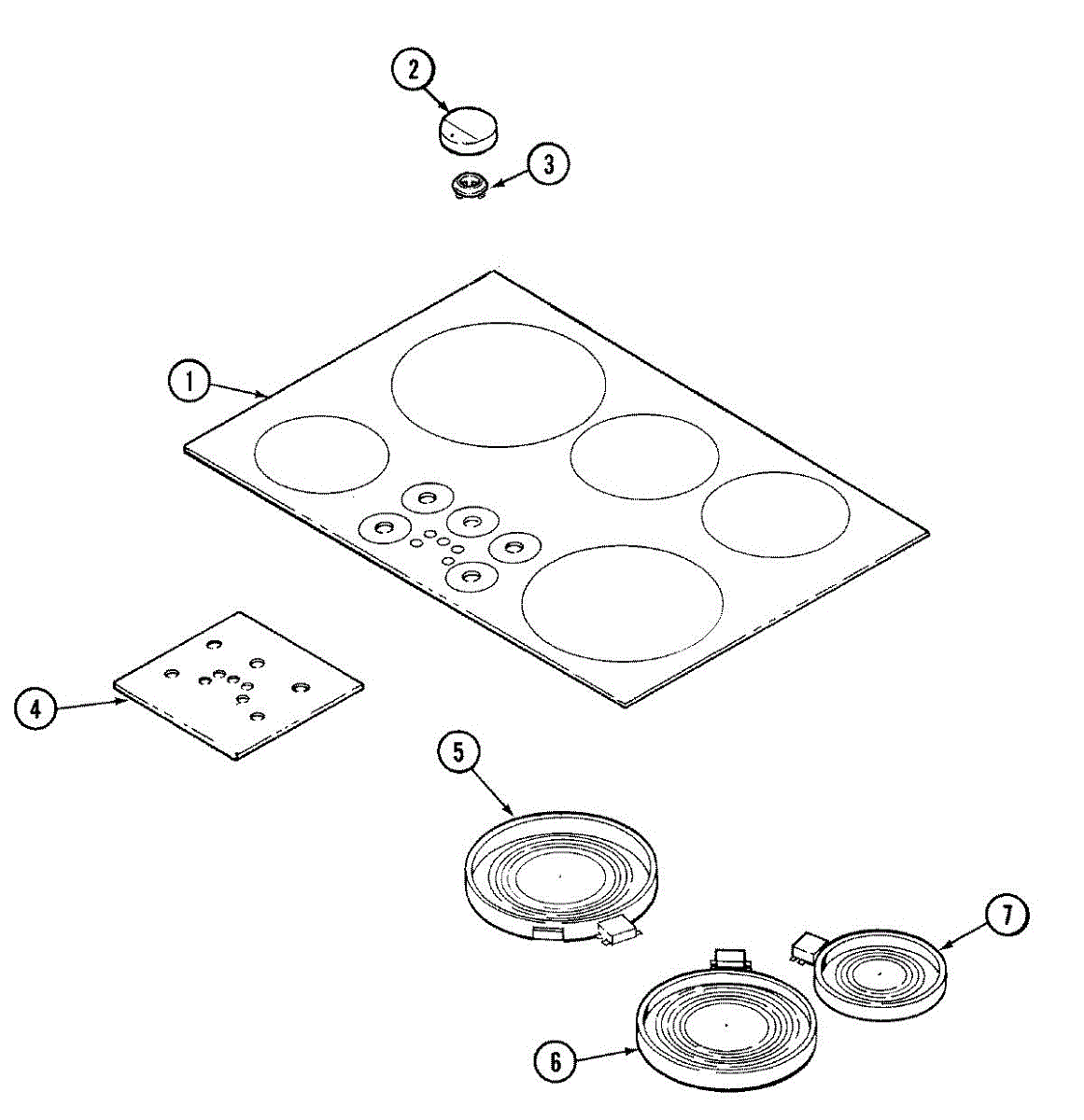

Parts for Jenn-Air CCE3531W: 02 - Top Assembly Parts

Color: black. It measures about 1 inch in diameter.

This surface heating element restores reliable heat to an electric cooktop burner so pots and pans warm evenly and predictably. Replace a failed element to bring consistent performance back to your range or smooth-top cooktop.

• Supplies heat to a single cooking zone on an electric range or glass-top cooktop
• Replaces an element that is open, shorted, or intermittently heating
• Common symptoms: burner won't heat, heats unevenly, or only part of the zone glows
• Helpful when there is visible damage or hot spots on the element

• Disconnect power at the breaker; allow the cooktop to cool completely
• Access the element by lifting/removing the cooktop or from below
• Move wires one at a time to matching terminals; reuse any mounting clips/brackets as required
• Support the glass top during service and avoid stressing or scratching the surface

This surface heating element restores reliable heat to an electric range or cooktop's top burner. Replace a failed or damaged element to bring back even, responsive heating for everyday cooking. What it does:

• Supplies heat to the selected surface burner when the control is turned on
• Can correct no-heat, weak or intermittent heat, or overheating due to internal failure
• Replaces elements with visible damage such as breaks, burn marks, or hot spots
• Helps restore consistent temperature control across the cooking zone

• 1 surface heating element

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element per your model; note wire locations and any brackets before removal
• Transfer wires and any retaining hardware to the new element in the same positions
• Avoid stressing the element or insulation; ensure it sits level and clear of glass/trim before reassembly

This surface heating element powers one of your range's top burners, restoring steady, responsive heat for everyday cooking. Replace a failed element to bring your cooktop back to consistent performance when boiling, simmering, or sautéing.

• Provides heat to the selected surface burner when the control is turned on
• Works with the burner switch to reach and maintain set temperatures
• Common symptoms of failure: burner won't heat, heats unevenly or intermittently, or shows visible damage/hot spots
• Helps resolve long heat-up times and inconsistent cooking results

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing.
• Access and mounting vary by model; note wire locations and transfer any brackets/clips from the original element.
• Inspect terminals and connectors; replace any heat-damaged wiring or receptacles before reconnecting.
• Handle by the frame and avoid stressing the element; ensure secure electrical connections before testing.
