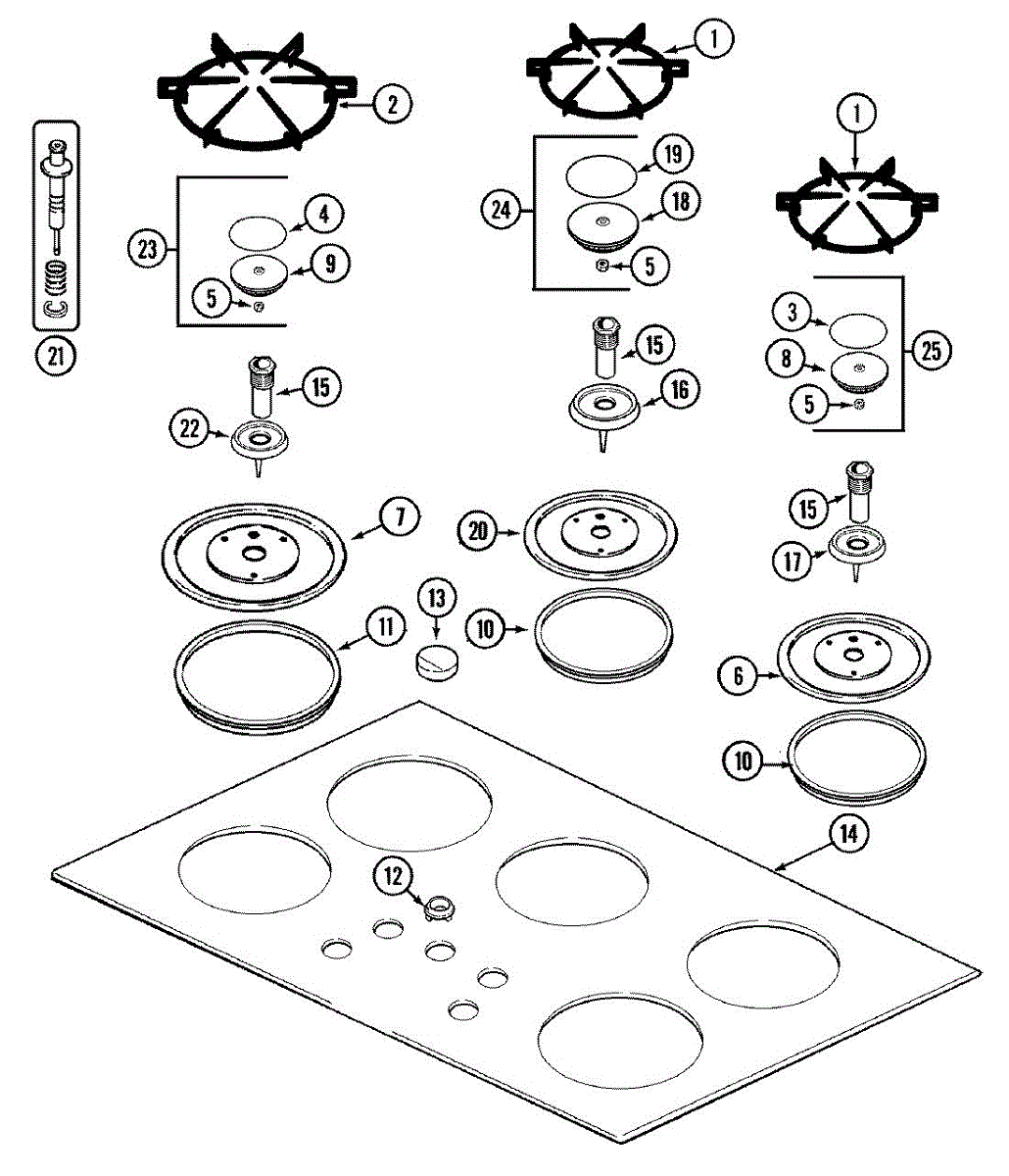

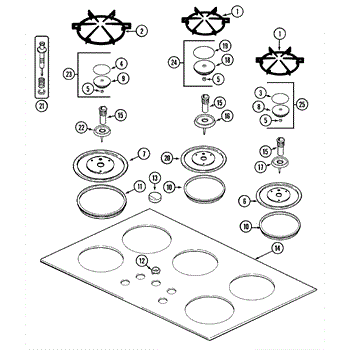

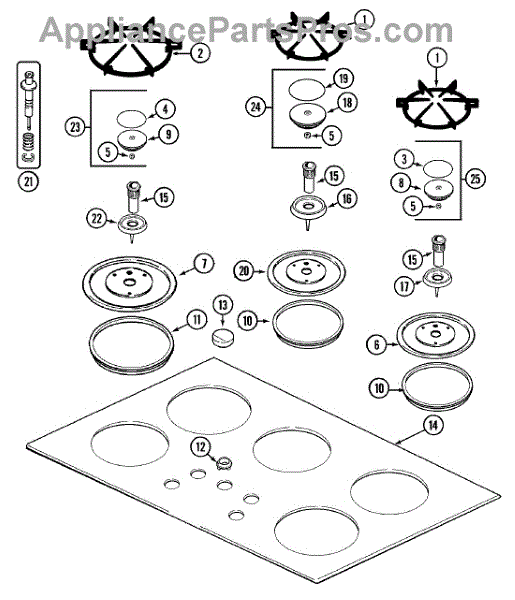

Parts for Jenn-Air CCG2522B: 02 - Top Assembly Parts

This replacement hex nut secures appliance components, helping keep panels, assemblies or fasteners firmly in place so parts stay aligned and vibration is reduced. It's a simple, direct fastener for repair or reassembly. What it does:

• Threads onto a matching bolt or stud to hold parts together
• Helps stop rattling or loosening when a fastener has backed off or gone missing
• Used where a secure, removable connection is required
• Common service fix when assemblies wobble or trim becomes loose

• One replacement hex nut

• Disconnect power and/or gas and move the appliance to a safe, stable work area before servicing
• Match nut thread size and pitch to the existing bolt or stud—do not force mismatched threads
• Tighten snugly but avoid overtightening; use appropriate hand tools
• Ensure proper torque and inspection for corrosion

This small pan seal replaces a worn or damaged sump/pan gasket to help stop leaks and keep water inside the appliance's drain area. It restores a proper seal so the appliance can drain without pooling or seepage. What it does:

• Seals the small pan/sump area to prevent water from leaking onto the floor
• Helps maintain proper drainage and reduces pooling under the appliance
• Restores a tight gasket where cracks, compressions, or wear allow seepage
• Commonly used when you see water under the unit, drips after cycles, or visible gasket damage

• Disconnect power and water supply before servicing the appliance
• Remove access panels and clean the mating surfaces before installing the new seal
• Press the seal into place evenly; ensure it sits flush in the pan/sump channel
• Inspect surrounding parts for damage and replace any brittle or warped components

A flexible pan seal that helps keep the refrigerator's drain pan and base area sealed to reduce leaks and contain condensation. Replaces a worn or damaged gasket to help prevent water pooling and odors. What it does:

• Seals the drain/condensate pan to the cabinet base to limit water leaks and vapor escape
• Directs condensate toward the drain so water drains properly instead of pooling
• Helps reduce musty odors from standing water in the pan area
• Commonly replaced when you see water under the appliance, pooling inside the cabinet, or visible gasket damage

• Disconnect power to the appliance before beginning any repair
• Remove the appropriate access panels or kickplate to reach the pan area per your model's service instructions
• Clean the pan and mating surfaces thoroughly before installing the new seal for a proper fit
• Press the seal into place; do not force or use solvents/adhesives unless specified by the OEM

This grommet sits in the control panel opening around the valve/switch shaft on select ranges and cooktops. It helps seal out spills and stabilizes the control knob for a clean look and smooth operation.

• Seals the knob/shaft hole to help keep moisture, grease, and crumbs out of the control area
• Centers and supports the knob for a snug, stable feel
• Helps prevent rubbing and cosmetic wear around the panel opening
• Common signs: cracked or missing grommet, visible gap around knob, loose/wobbly knob, evidence of spills beneath the knob

• Disconnect power and, if applicable, shut off gas supply before servicing
• Pull the knob straight off the shaft and lift out the old grommet
• Clean the panel opening; press the new grommet fully into place, matching the original orientation
• Reinstall the knob and ensure smooth, unobstructed operation

Color: black. It measures about 2 inches in diameter.

This part has been discontinued and is no longer available.
