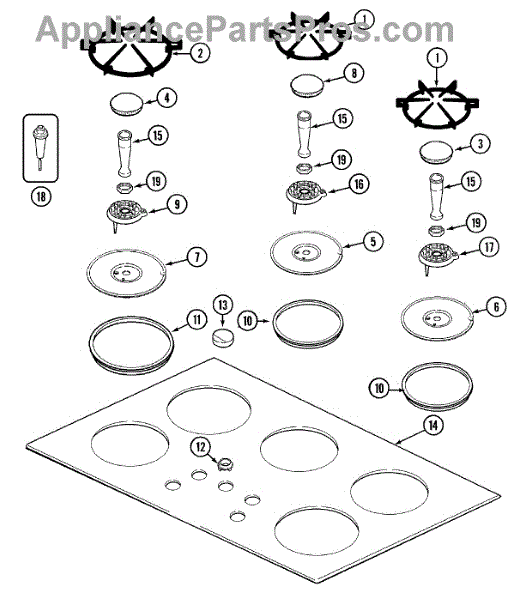

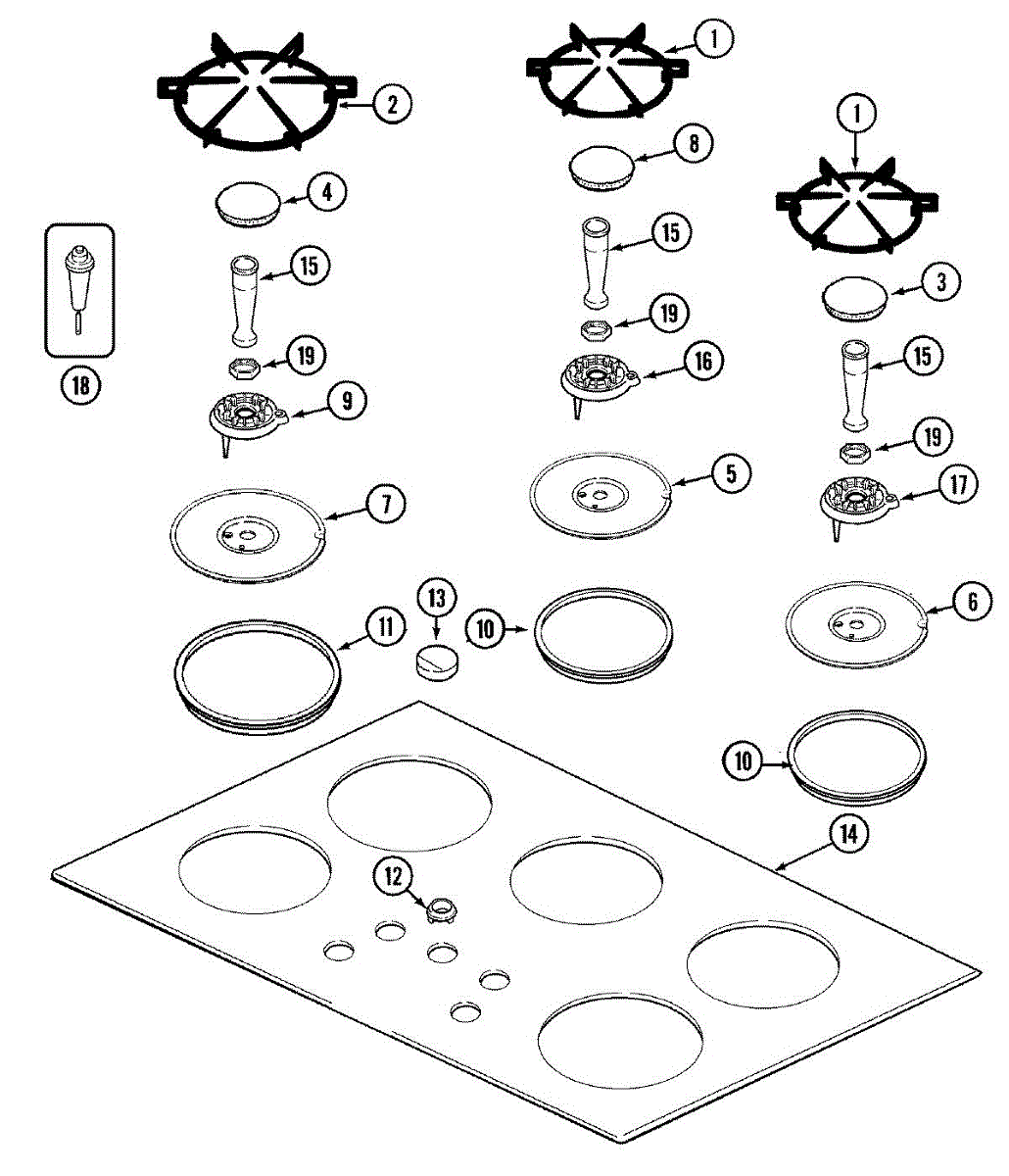

Parts for Jenn-Air CCG2523B: 02 - Top Assembly Parts

This large burner assembly provides high-heat cooking capability for your cooktop's primary cooking surface. It delivers concentrated flame or electric heat for boiling, searing, and rapid cooking tasks. Replace it if the burner won't ignite, produces uneven flames, heats poorly, or shows visible damage to the burner head or element.

This small pan seal replaces a worn or damaged sump/pan gasket to help stop leaks and keep water inside the appliance's drain area. It restores a proper seal so the appliance can drain without pooling or seepage. What it does:

• Seals the small pan/sump area to prevent water from leaking onto the floor
• Helps maintain proper drainage and reduces pooling under the appliance
• Restores a tight gasket where cracks, compressions, or wear allow seepage
• Commonly used when you see water under the unit, drips after cycles, or visible gasket damage

• Disconnect power and water supply before servicing the appliance
• Remove access panels and clean the mating surfaces before installing the new seal
• Press the seal into place evenly; ensure it sits flush in the pan/sump channel
• Inspect surrounding parts for damage and replace any brittle or warped components

A flexible pan seal that helps keep the refrigerator's drain pan and base area sealed to reduce leaks and contain condensation. Replaces a worn or damaged gasket to help prevent water pooling and odors. What it does:

• Seals the drain/condensate pan to the cabinet base to limit water leaks and vapor escape
• Directs condensate toward the drain so water drains properly instead of pooling
• Helps reduce musty odors from standing water in the pan area
• Commonly replaced when you see water under the appliance, pooling inside the cabinet, or visible gasket damage

• Disconnect power to the appliance before beginning any repair
• Remove the appropriate access panels or kickplate to reach the pan area per your model's service instructions
• Clean the pan and mating surfaces thoroughly before installing the new seal for a proper fit
• Press the seal into place; do not force or use solvents/adhesives unless specified by the OEM

Fix continuous sparking ignition caused by debris entering switches. This control knob grommet seals the panel opening around the valve shaft. 5-minute install.

Color: black. It measures about 2 inches in diameter.

Replace your cooktop's venturi mixing tube if flames are yellow, uneven, or burners won't ignite properly. Restores correct air-gas mixture for safe combustion.

Burner base for cooktops. Installs beneath the burner cap to support proper flame distribution. Replace if cracked, damaged, or corroded.

This is a spark electrode igniter used on a gas range surface burner. It generates an electric spark to ignite the gas when the burner knob is turned. Replace this part if the burner clicks but does not light, produces a weak or inconsistent spark, or if the ceramic insulator is cracked.

Secures cooktop components and holds assemblies firmly in place. Replace when loose, worn, or stripped to restore proper clamping force. Confirm fit with model.
