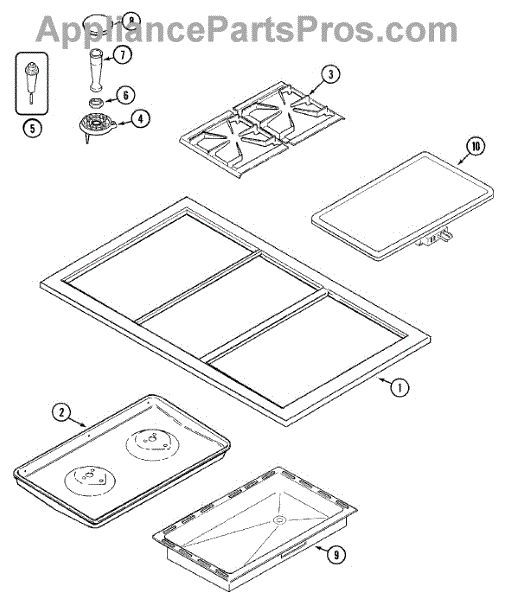

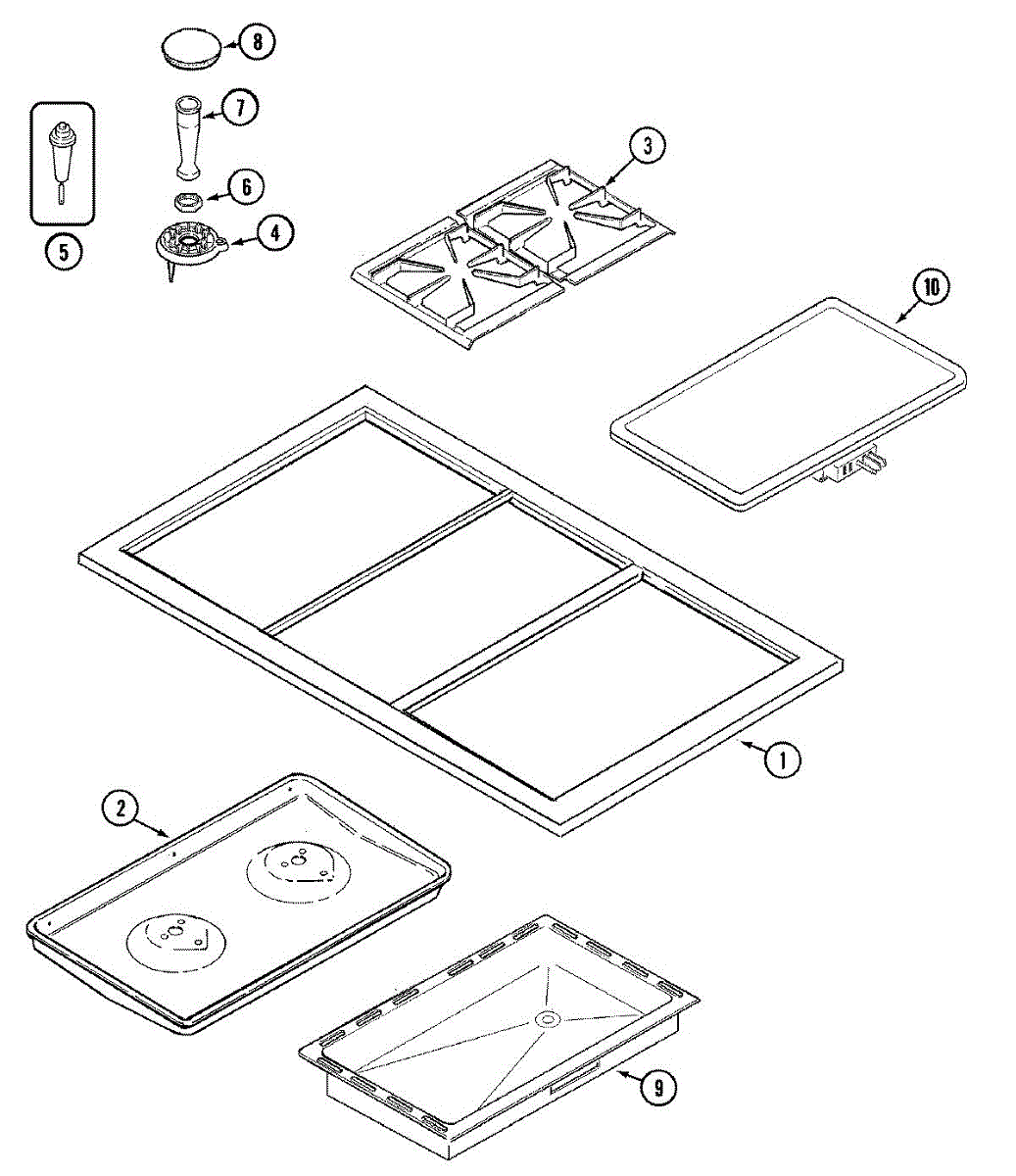

Parts for Jenn-Air CCGP2720PG: 03 - Top Assembly Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This oven igniter is the glow-bar that lights the gas for the bake or broil burner. Replacing a weak or failed igniter restores dependable ignition and consistent oven heat, solving no-heat and long preheat complaints.

• Heats to ignite the gas burner in the oven cavity
• Draws the proper current to open the oven safety valve
• Common symptoms: oven won't heat, igniter glows but no flame, delayed or intermittent ignition, extended preheat times
• Restores reliable burner lighting for baking or broiling

• Disconnect power and shut off gas supply before servicing; allow the oven to cool
• Handle the igniter by the insulated base; avoid touching the fragile element
• Mount using the correct bracket and position the tip near the burner, as on the original
• Restore power and gas, then test for prompt, steady ignition

A replacement hex nut used to secure appliance components and fasten assemblies. This small but essential fastener restores proper clamping force and helps stop loose or rattling parts for safe, reliable operation. What it does

• Secures mating parts and threaded studs to hold assemblies in place
• Restores proper tension where a missing or stripped nut allows movement
• Helps eliminate rattling, vibration, or intermittent contact caused by loose hardware
• Works where a standard hex nut is specified by the manufacturer

• One hex nut

• Turn off and unplug the appliance before attempting any repair
• Use the correct socket or wrench to avoid rounding the nut; apply moderate torque
• Replace any damaged studs or washers and use thread locker only if specified by the manufacturer

This venturi mixing tube channels and meters incoming air to the gas burner assembly to support proper combustion. Replacing a worn or damaged venturi restores consistent air/gas mixing for safer, more reliable burner performance. What it does

• Directs and mixes incoming air with gas for stable burner combustion
• Restores proper burner operation when airflow is restricted or misdirected
• Can correct weak, uneven, or inconsistent burner flames linked to venturi damage
• Helps eliminate issues caused by cracked, clogged, or misshapen venturi passages

• Shut off electrical power and gas supply before beginning any service
• Inspect adjoining seals, gaskets, and mounting points; replace any damaged hardware
• After installation, check burner operation and test for gas leaks using a safe, approved method
