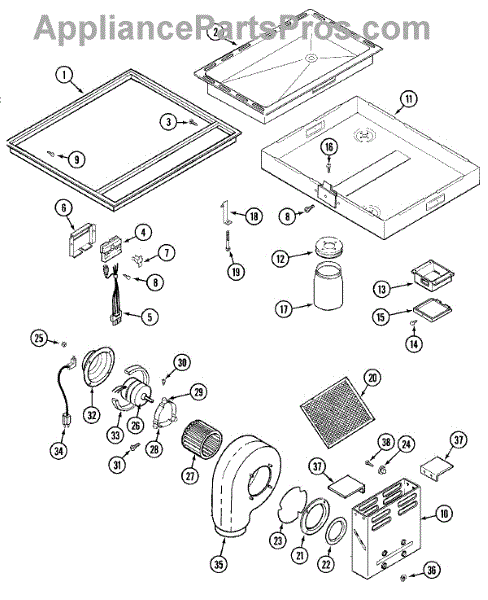

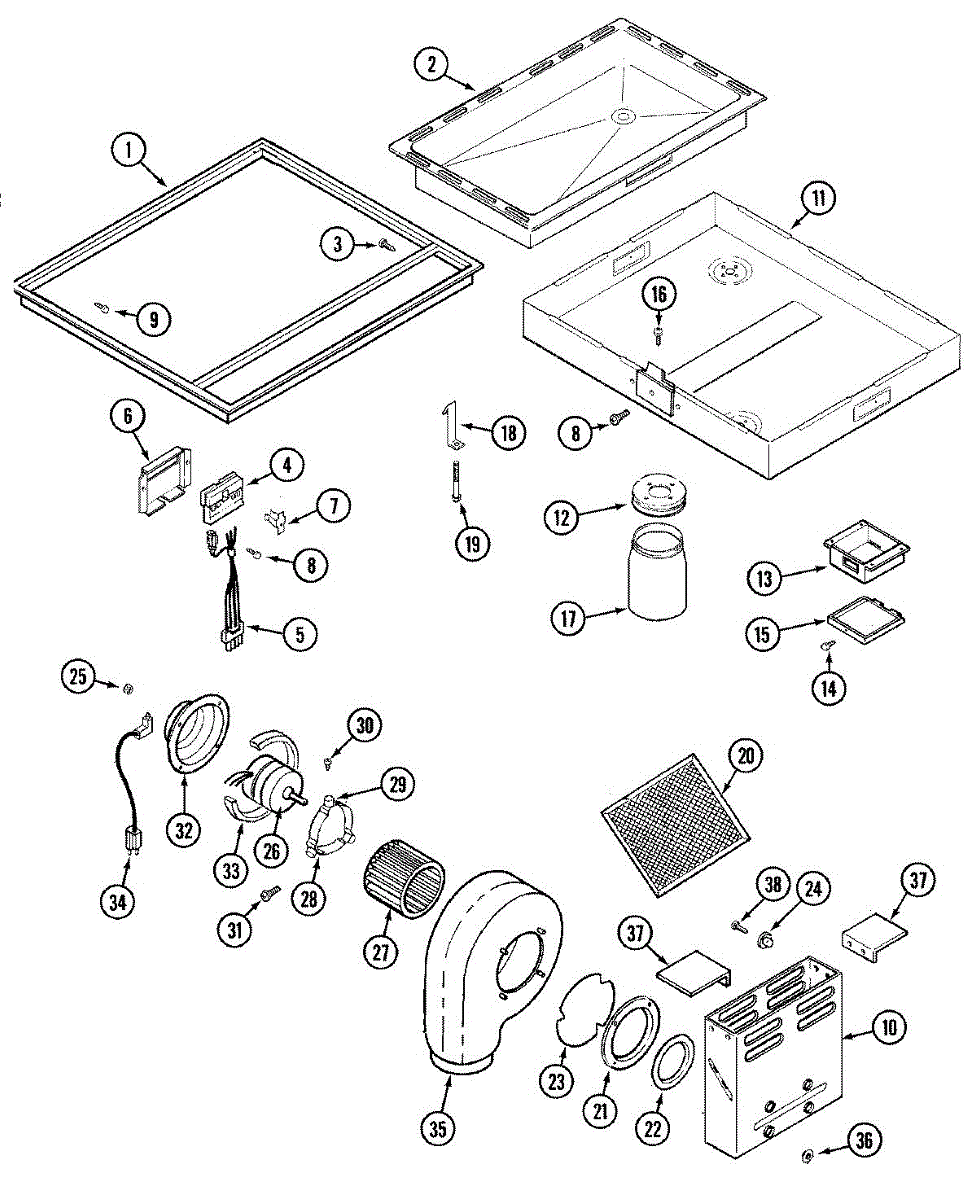

Parts for Jenn-Air CM100-E: 01 - Top Assembly Parts

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

Pop rivet secures sheet-metal panels, brackets, and burner jar lids on appliances. Replace missing, drilled-out, or damaged rivets for permanent hold.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

This is a small glass jar that attaches to the underside of a range vent hood to collect grease and cooking residue filtered from the air during use. It threads or clips into a designated opening on the hood's grease collection system. Replace this jar if it is cracked, chipped, missing, or if the threading is damaged and it no longer seats securely, which can cause grease to drip onto the cooktop below.

This 1/4-20 screw is a threaded fastener used to secure panels and components on compatible appliances, restoring proper fit and reducing vibration or movement. Easy to replace with common hand tools. What it does:

• Secures panels, brackets or components to keep parts properly aligned
• Stops rattling or vibration caused by loose fasteners
• Restores a solid attachment where a missing or damaged screw causes gaps
• Matches the standard 1/4-20 machine screw thread for correct fit

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct sized driver or socket to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid overtightening to prevent damage
• Keep removed hardware in a labeled bag for reassembly

The Ventilation Grease Filter is an OEM replacement part for Whirlpool kitchen ventilation hoods. It captures grease, odors, and smoke from cooking.  The filter measures about 16 and 1 ½ inches x 9 inches.

Causes of a faulty filter can include caked-on grease impeding airflow or physical damage compromising filtration ability after heavy use.

Symptoms of a bad ventilation grease filter include:

• Reduced ventilation effectiveness and airflow
• Grease buildup within ducts and on surrounding surfaces
• Offensive odors permeating the kitchen

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

This is a metal mounting bracket designed to secure the blower motor in place within a range or cooktop downdraft system. It provides stable support so the motor operates without excess vibration or noise. Replace this bracket if it is bent, cracked, or if the motor rattles or shifts out of position during use.

This motor isolator is a vibration-damping grommet that cushions the motor mount to reduce noise and prevent metal-to-metal contact. Replacing worn isolators helps keep the motor seated correctly and the appliance running quieter and smoother.

• Cushions the motor to minimize vibration transfer to the chassis
• Helps reduce rattling or buzzing noises during fan/blower operation
• Supports proper motor alignment and mounting stability
• A common maintenance item when rubber mounts become cracked, hardened, or missing

• Disconnect power and allow hot components to cool before service
• Access the motor mounting points; replace isolators in matched locations
• Inspect adjacent mounts and hardware; replace additional isolators as needed
• Do not overtighten fasteners—compress the grommet evenly without deforming it

Factory-style mounting screw secures panels, brackets, and trim to your appliance frame. Replaces worn, stripped, or missing screws for proper fit.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.
