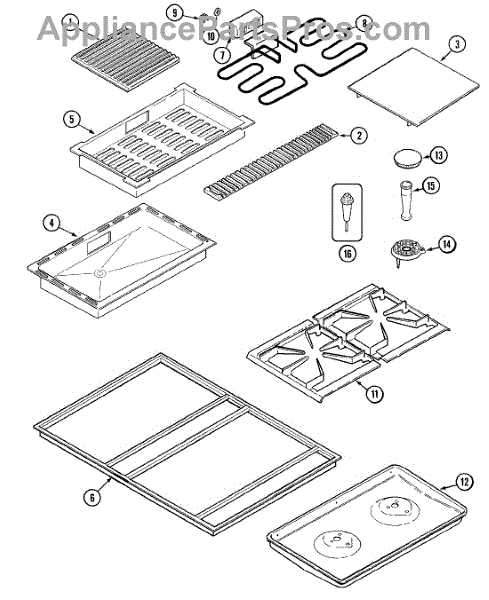

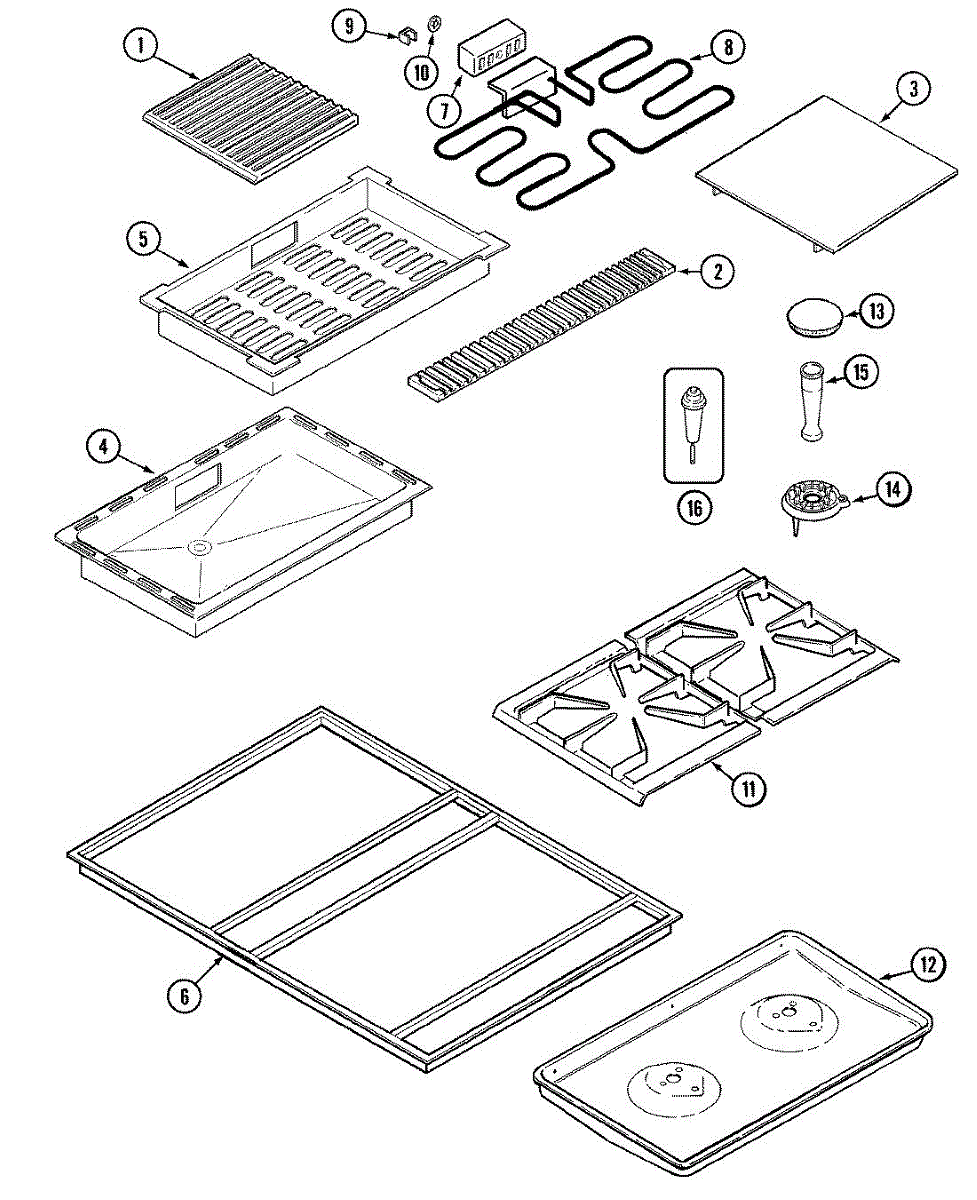

Parts for Jenn-Air CVDX4180B: 04 - Top Assembly Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

Restore dependable heat to your indoor grill module with this electric grill element. Replacing a worn or failed element brings back even cooking and consistent searing performance on compatible grill cartridges. What it does:

• Converts electrical power into radiant heat for indoor grilling
• Delivers even heat distribution across the grill area when functioning properly
• Common fix when the grill won't heat, heats slowly, or has cold spots
• Replace if the coil is cracked, blistered, or visibly damaged

• 1 electric grill heating element

• Disconnect power at the breaker or unplug the unit; allow all components to cool completely
• Remove grill grates and any shields or pans to access the element
• Lift the element straight up to disengage from the terminal block; avoid bending terminals and transfer any reusable clips/brackets if present
• Seat the new element fully in the terminals; verify secure connections before reassembly and testing

This speed nut is a stamped metal retaining clip designed to hold screws or fasteners securely to appliance panels and trim. It provides a simple, vibration-resistant connection that keeps covers and components in place. What it does:

• Secures screws to thin sheet metal or panel edges where a threaded hole isn't available
• Provides a firm, vibration-resistant attachment for panels, trim, or small components
• Helps prevent screws from loosening or backing out during normal use
• Commonly used where a captive nut or clip is required for assembly or repair

• One speed nut / retaining clip

• Disconnect power and unplug the appliance before starting any repair
• Position the clip over the panel edge or hole so the screw can engage the clip's thread; press or tap gently until seated
• Use the correct screw size and avoid over-tightening to prevent deforming the clip or striping threads
• Wear gloves and eye protection when handling sharp sheet metal edges

This venturi mixing tube channels and meters incoming air to the gas burner assembly to support proper combustion. Replacing a worn or damaged venturi restores consistent air/gas mixing for safer, more reliable burner performance. What it does

• Directs and mixes incoming air with gas for stable burner combustion
• Restores proper burner operation when airflow is restricted or misdirected
• Can correct weak, uneven, or inconsistent burner flames linked to venturi damage
• Helps eliminate issues caused by cracked, clogged, or misshapen venturi passages

• Shut off electrical power and gas supply before beginning any service
• Inspect adjoining seals, gaskets, and mounting points; replace any damaged hardware
• After installation, check burner operation and test for gas leaks using a safe, approved method

This oven igniter is the glow-bar that lights the gas for the bake or broil burner. Replacing a weak or failed igniter restores dependable ignition and consistent oven heat, solving no-heat and long preheat complaints.

• Heats to ignite the gas burner in the oven cavity
• Draws the proper current to open the oven safety valve
• Common symptoms: oven won't heat, igniter glows but no flame, delayed or intermittent ignition, extended preheat times
• Restores reliable burner lighting for baking or broiling

• Disconnect power and shut off gas supply before servicing; allow the oven to cool
• Handle the igniter by the insulated base; avoid touching the fragile element
• Mount using the correct bracket and position the tip near the burner, as on the original
• Restore power and gas, then test for prompt, steady ignition
