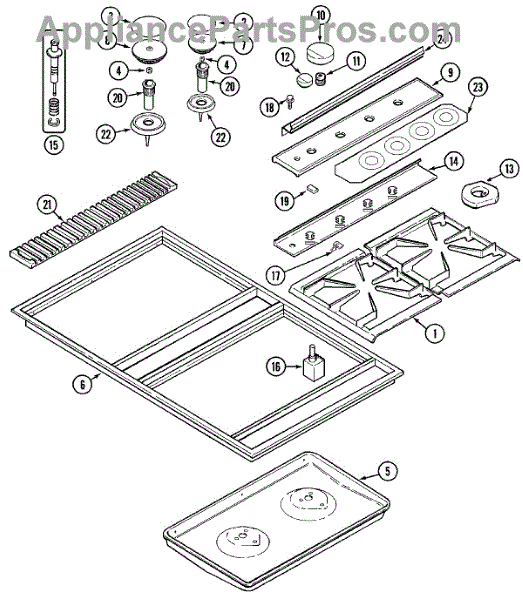

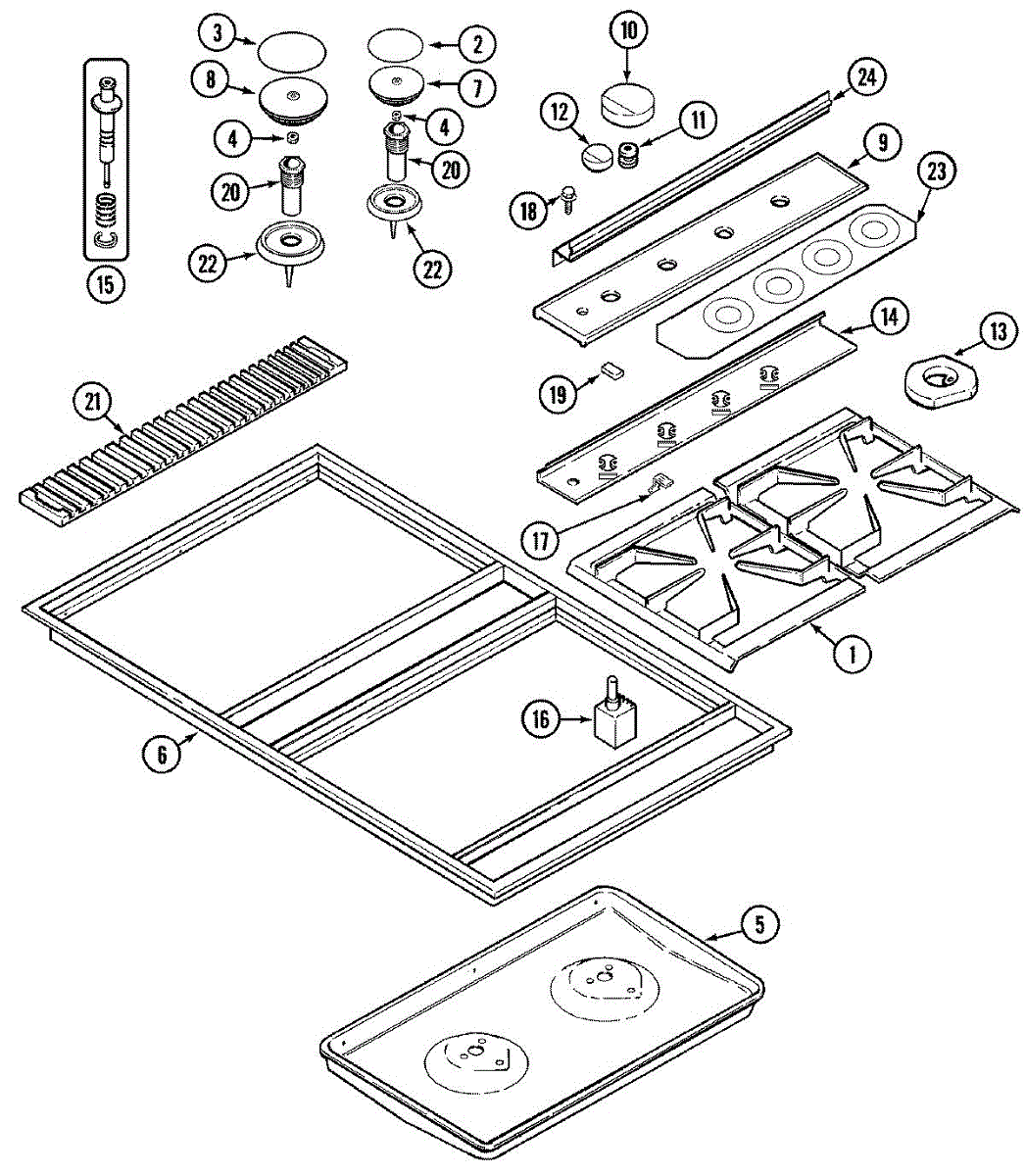

Parts for Jenn-Air CVG2420B: 03 - Top Assembly Parts

This replacement hex nut secures appliance components, helping keep panels, assemblies or fasteners firmly in place so parts stay aligned and vibration is reduced. It's a simple, direct fastener for repair or reassembly. What it does:

• Threads onto a matching bolt or stud to hold parts together
• Helps stop rattling or loosening when a fastener has backed off or gone missing
• Used where a secure, removable connection is required
• Common service fix when assemblies wobble or trim becomes loose

• One replacement hex nut

• Disconnect power and/or gas and move the appliance to a safe, stable work area before servicing
• Match nut thread size and pitch to the existing bolt or stud—do not force mismatched threads
• Tighten snugly but avoid overtightening; use appropriate hand tools
• Ensure proper torque and inspection for corrosion

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part has been discontinued and is no longer avaialble.

A replacement control knob that restores safe, reliable selection of settings on the appliance. Fits the original shaft design to provide a secure, easy-turn interface for temperature and function selection. What it does:

• Replaces cracked, stripped, missing, or loose control knobs so settings can be selected and held securely.
• Engages the control shaft spline to transmit user input to the selector or valve.
• Provides a tactile grip and clear pointer for accurate setting selection.
• Helps resolve symptoms like a knob that won't turn, won't stay set, or spins freely without engaging the control.

• Disconnect power to the appliance before starting any repair.
• Align the knob to the control shaft spline and push straight on until fully seated; do not force.
• If the knob does not seat easily, verify shaft and spline condition before proceeding.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This part has been discontinued and is no longer available.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part has been discontinued and is no longer available.

This light lens is the clear plastic cover that fits over an appliance interior light to protect the bulb and help diffuse illumination for better visibility. It restores a finished appearance and keeps the lamp shielded from food and debris. What it does:

• Protects the interior light bulb from spills, splatter and physical damage
• Diffuses and directs light for more even interior illumination
• Prevents direct contact with the hot bulb for improved safety
• Helps maintain a clean, finished look inside the appliance
• Common symptom: cracked, cloudy or missing lens causing glare, visible bulb or reduced protection

• One clear plastic light lens

• Disconnect power or unplug the appliance before replacing any light parts
• Handle the lens carefully to avoid scratches or cracking during install
• Typically snaps into place or secures with small screws—retain original fasteners
• Use correct replacement bulb and ensure the lens is seated fully before restoring power
