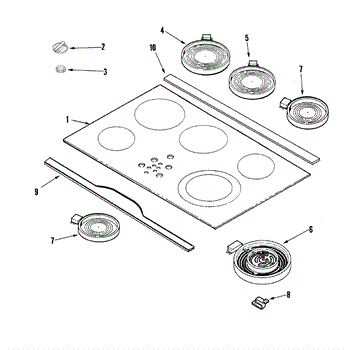

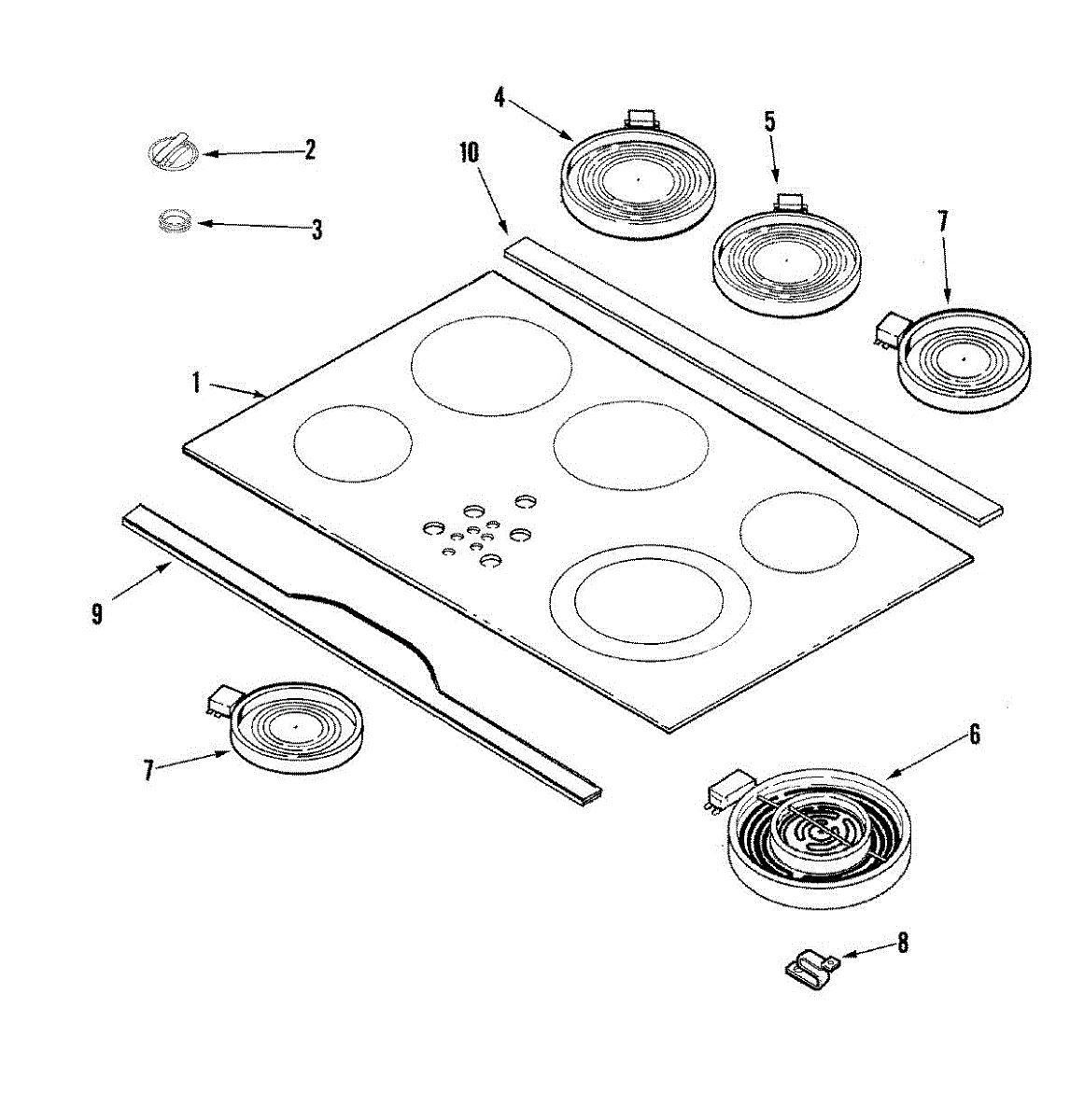

Parts for Jenn-Air JEC9530ADF: 02 - Top Assembly Parts

This adhesive-backed foam tape seals small gaps and cushions mating parts inside your appliance. Replacing worn or missing foam helps reduce noise and vibration while preventing air leaks and condensation that can lead to performance issues.

• Seals joints and gaps to help maintain proper airflow and temperature control
• Cushions panels and components to reduce rattles, buzzing, and vibration
• Helps prevent moisture intrusion that can cause condensation or frost
• Restores secure fit where original foam has compressed, torn, or fallen off

• Disconnect power (and water supply if applicable) before starting
• Remove all old foam/adhesive and clean surfaces; allow to dry fully
• Measure, cut to length, peel backing, and apply without stretching the tape
• Press firmly along the length for good adhesion; keep clear of moving parts and vents

The Knob is an OEM replacement part for Whirlpool ranges.

Causes of a bad control knob can include wear of the plastic material from constant rotation during daily cooking cycles. Repeated abrasion from users adjusting knob settings can degrade the knob surface as well.

Symptoms of a bad Knob include:

• Looseness during selection or difficulty choosing desired functions
• Knobs that fall off or no longer stay securely attached
• Text labels that fade from knob surface rendering functions illegible
• Restricted or binding knob movements rendering control panel use cumbersome

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air, and some Kenmore models

Color: black. Measures about 1-1/2 inches in diameter.

This 2000W bake element heats the oven cavity for baking and roasting, restoring oven cooking performance. It replaces a failed or damaged bake element to help your range reach and maintain proper baking temperatures. What it does:

• Heats the oven interior during bake cycles for even cooking
• Restores normal oven temperature when a broken element prevents heating
• Replaces elements with visible breaks, burning, or no heat output
• Helps resolve inconsistent baking and undercooked food when element-related

• Disconnect power to the range at the breaker before starting any repair
• Handle terminals and ceramic insulators carefully to avoid damage
• Basic hand tools typically required; follow your model's service instructions

This surface heating element replaces a damaged or non-working top burner on compatible electric ranges, restoring even cooking performance and reliable heat for everyday pots and pans. What it does:

• Provides direct heat to cookware on the cooktop so burners reach cooking temperature
• Replaces a cracked, broken, or non-heating top burner element
• Fixes symptoms like a burner that stays cool, heats intermittently, or heats unevenly
• Works as a direct replacement for the listed part when the element is the failed component

• Disconnect power to the appliance at the breaker or unplug the range before starting any work
• Allow the cooktop and element to cool completely; handle carefully to avoid cuts from edges
• Reconnect wires to the matching terminals and secure the element in the appropriate retainer;

This warming surface element keeps food warm on the cooktop until you're ready to serve. It replaces a failed or weak warming zone so leftover dishes and pans stay at serving temperature. What it does:

• Provides low, steady heat for the designated warming zone on the cooktop
• Replaces an element that no longer heats or maintains warm temperature
• Restores even, consistent warming when the zone is cool or only partially heating
• Works with the cooktop's control switch and wiring to deliver regulated warmth

• Disconnect power to the appliance before inspecting or replacing the element
• Allow the cooktop and element to fully cool before attempting removal
• Replacement typically requires lifting or removing the cooktop; follow your model's service instructions

This surface heating element powers one of your range's top burners, restoring steady, responsive heat for everyday cooking. Replace a failed element to bring your cooktop back to consistent performance when boiling, simmering, or sautéing.

• Provides heat to the selected surface burner when the control is turned on
• Works with the burner switch to reach and maintain set temperatures
• Common symptoms of failure: burner won't heat, heats unevenly or intermittently, or shows visible damage/hot spots
• Helps resolve long heat-up times and inconsistent cooking results

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing.
• Access and mounting vary by model; note wire locations and transfer any brackets/clips from the original element.
• Inspect terminals and connectors; replace any heat-damaged wiring or receptacles before reconnecting.
• Handle by the frame and avoid stressing the element; ensure secure electrical connections before testing.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

Razor blade scraper.
