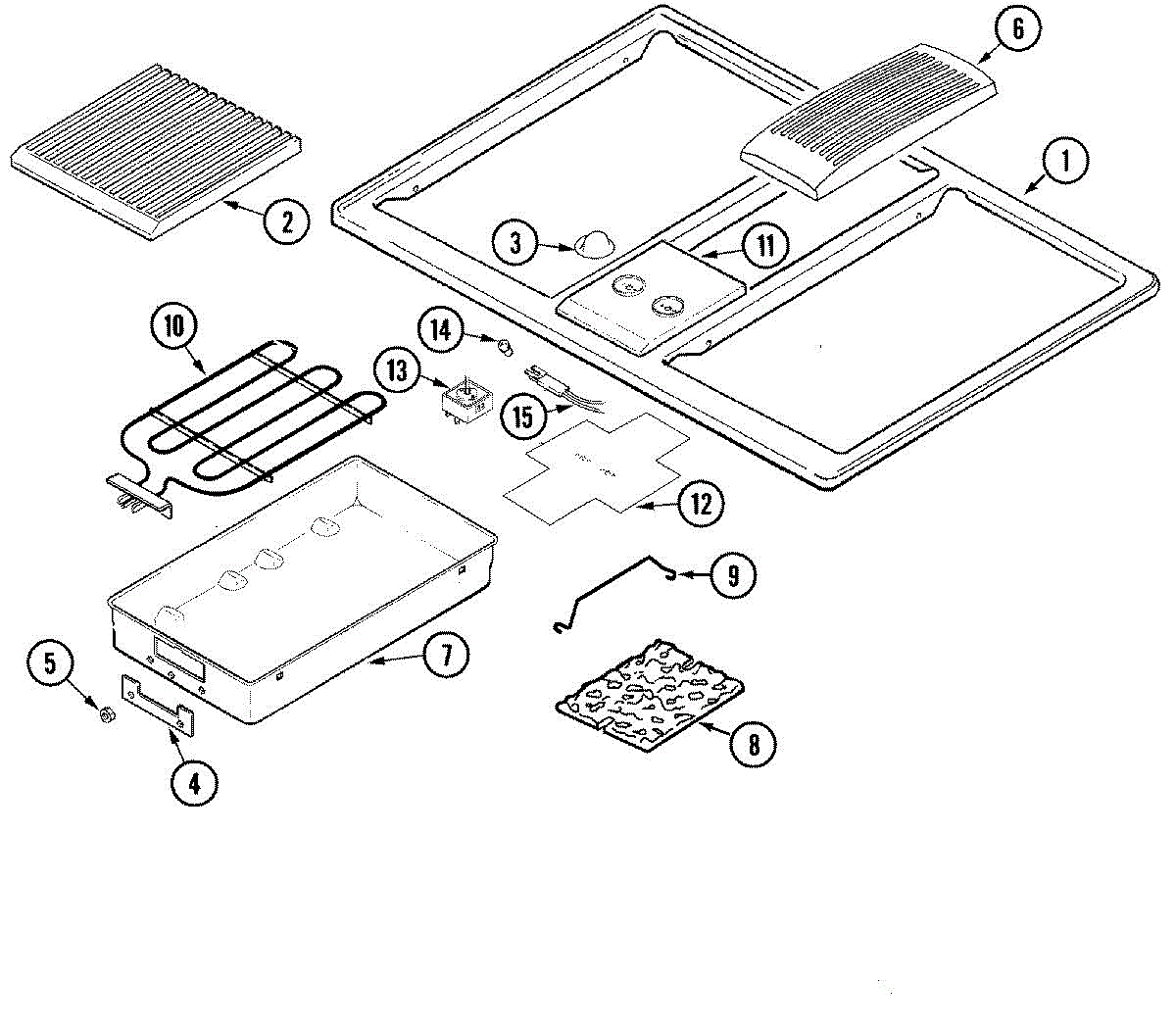

Parts for Jenn-Air JED7430AAB: 03 - Top Assembly Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement control knob that restores reliable control of your appliance's settings and provides a secure grip for changing cycles or temperatures for fast, simple repairs. What it does:

• Fits over the appliance control shaft so you can turn settings, cycles, or temperatures; replace if the knob spins freely or won't engage the control.
• Restores clear position indexing and tactile feedback; replace when the knob is cracked, broken, or the indicator no longer lines up.
• Keeps the control firmly in place during use; replace if the knob slips or won't stay seated on the shaft.

• Always disconnect power (and gas for gas appliances) before servicing controls.
• Remove the old knob by pulling straight off the control shaft; inspect the shaft for damage or debris before installing the new knob.
• Align the knob with the shaft flats/splines and press on until fully seated—do not force.
• If the knob does not seat correctly, double-check shaft type and orientation; stop.

Includes one rock plate. 2 used per unit. For the support order 700819.

This rock plate support is used on many of the Jenn-air grill cartridge rock plates.

Radiant surface element for smooth-top electric ranges that restores consistent heat to a 6-inch burner so cookware can reach and maintain proper cooking temperatures. Ideal when a burner fails to heat evenly or stops working. What it does:

• Heats cookware via the cooktop's 6-inch radiant zone for boiling, simmering, and frying.
• Replaces a worn or damaged smooth-top element to restore normal burner performance.
• Common symptoms: burner won't heat, only part of the burner heats, or the burner cycles instead of holding steady heat.
• Designed for glass/ceramic cooktops—handle carefully to avoid damage.

• Disconnect power to the range before beginning any repair to prevent electrical shock.
• Allow the cooktop to fully cool; handle the glass element carefully to avoid chipping or cracking.
• Seat electrical connectors securely and align the element in the cooktop opening; do not force.

Controls heat to a range's cooktop element. This infinite switch restores smooth, precise temperature control when a surface burner won't heat, only stays on high, or won't shut off.

• Regulates electrical power to the surface element for adjustable heat levels
• Provides a true OFF position to shut the burner down
• Common symptoms of a failed switch: no heat, stuck on high, or won't turn off
• Installs in the control panel and connects to the existing surface element circuit

• Disconnect power at the breaker before servicing
• Access the switch from the rear of the control panel; remove the knob and mounting hardware
• Transfer wires one at a time to matching terminals (or photograph the layout) to keep connections correct
• Reassemble, restore power, and test the burner through all settings
