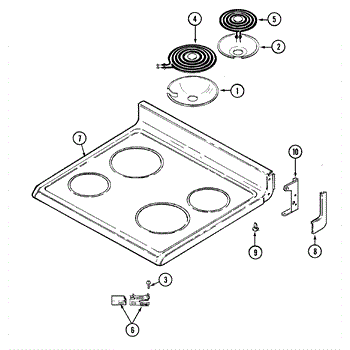

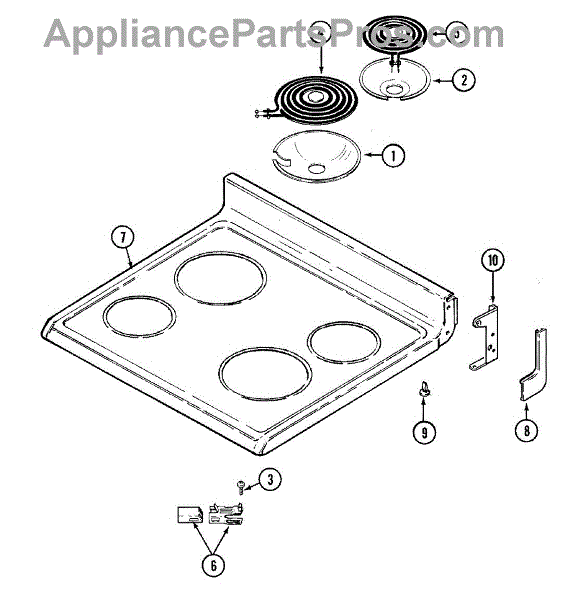

Parts for Magic Chef C3862VYV: 05 - Top Assembly Parts

The Drip Pan Kit is an OEM replacement part for Whirlpool ranges. It is located below the oven cavity to catch any grease, food debris, or condensation. The drip pan keeps the lower interior clean and prevents messes from spreading. Includes 2 large pans and 2 small pans.

Over time, drip pans can become damaged or worn due to exposure to high temperatures, spilled food, and regular cleaning. Causes of a bad drip pan can include rust, discoloration, warping, or holes developing in the pan, which can compromise its ability to catch spills.

Symptoms of a bad drip pan include:

• Grease or residue building up around the oven's base
• An unpleasant cooking odor lingering below
• Drips or food particles escaping onto nearby surfaces
• Rust or holes forming in the metal pan over time

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: If your originals were a two-piece pan and ring, the ring will no longer be used. They are one piece now.

The Drip Pan Kit is an OEM replacement part for Whirlpool ranges. It is located below the oven cavity to catch any grease, food debris, or condensation. The drip pan keeps the lower interior clean and prevents messes from spreading. Includes 2 large pans and 2 small pans.

Over time, drip pans can become damaged or worn due to exposure to high temperatures, spilled food, and regular cleaning. Causes of a bad drip pan can include rust, discoloration, warping, or holes developing in the pan, which can compromise its ability to catch spills.

Symptoms of a bad drip pan include:

• Grease or residue building up around the oven's base
• An unpleasant cooking odor lingering below
• Drips or food particles escaping onto nearby surfaces
• Rust or holes forming in the metal pan over time

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: If your originals were a two-piece pan and ring, the ring will no longer be used. They are one piece now.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This 8-inch surface element kit restores reliable heat on your electric range or cooktop. Replace a failed burner so pots heat evenly and settings respond as expected across your 8-inch cooking zone.

• Heats the 8-inch surface burner for everyday boiling, simmering, and frying
• Replaces a burned-out or damaged element to restore consistent performance
• Helps eliminate weak, uneven, or intermittent heating
• Common symptoms: surface burner won't heat, heats inconsistently, or shows obvious damage

• Disconnect power at the breaker or unplug the appliance before servicing; allow all components to cool completely
• Note wire/terminal positions and transfer any mounting parts from the old element if required
• Ensure terminals are fully seated and the element is properly supported/seated before use
• After installation, test on low and high settings to confirm proper operation

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

The Terminal Block Kit is an OEM part for Whirlpool cooktops. It is a crucial component that provides a secure connection point for electrical wires and cables within the appliance's control system.

Symptoms of a faulty terminal block kit:

• Intermittent power supply or electrical issues
• Burnt or melted wires or connectors
• Appliance not receiving or responding to electrical signals correctly
• Visible damage or corrosion on the terminal block

Causes of a bad terminal block kit include excessive heat exposure, loose connections, moisture or water damage, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This main top glide supports the dryer drum and reduces friction for smooth rotation, helping prevent drum wear and noisy operation. It replaces a worn glide to restore proper drum tracking and quieter drying cycles. What it does:

• Provides a low-friction bearing surface for the dryer drum to ride on
• Helps maintain correct drum alignment and smooth rotation
• Reduces squeaks, scraping noises, and uneven drum wear
• Protects the drum and cabinet contact points from damage

• One main top glide

• Use basic hand tools; access requires opening the dryer cabinet per your model's service manual
• Inspect matching bottom glides/rollers and replace as needed for best results
• Disconnect power (and gas supply if applicable) before beginning repairs

This part has been discontinued and is no longer available
