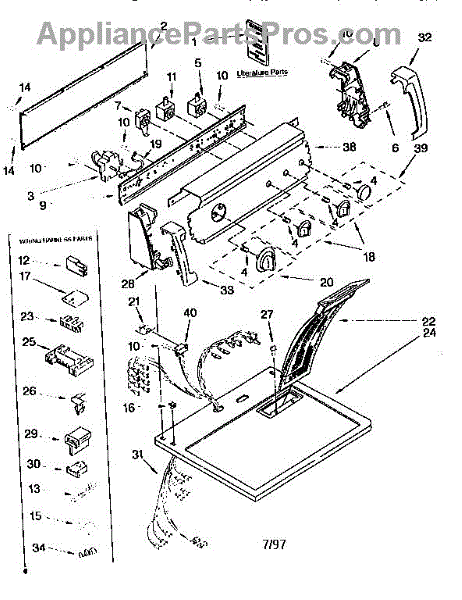

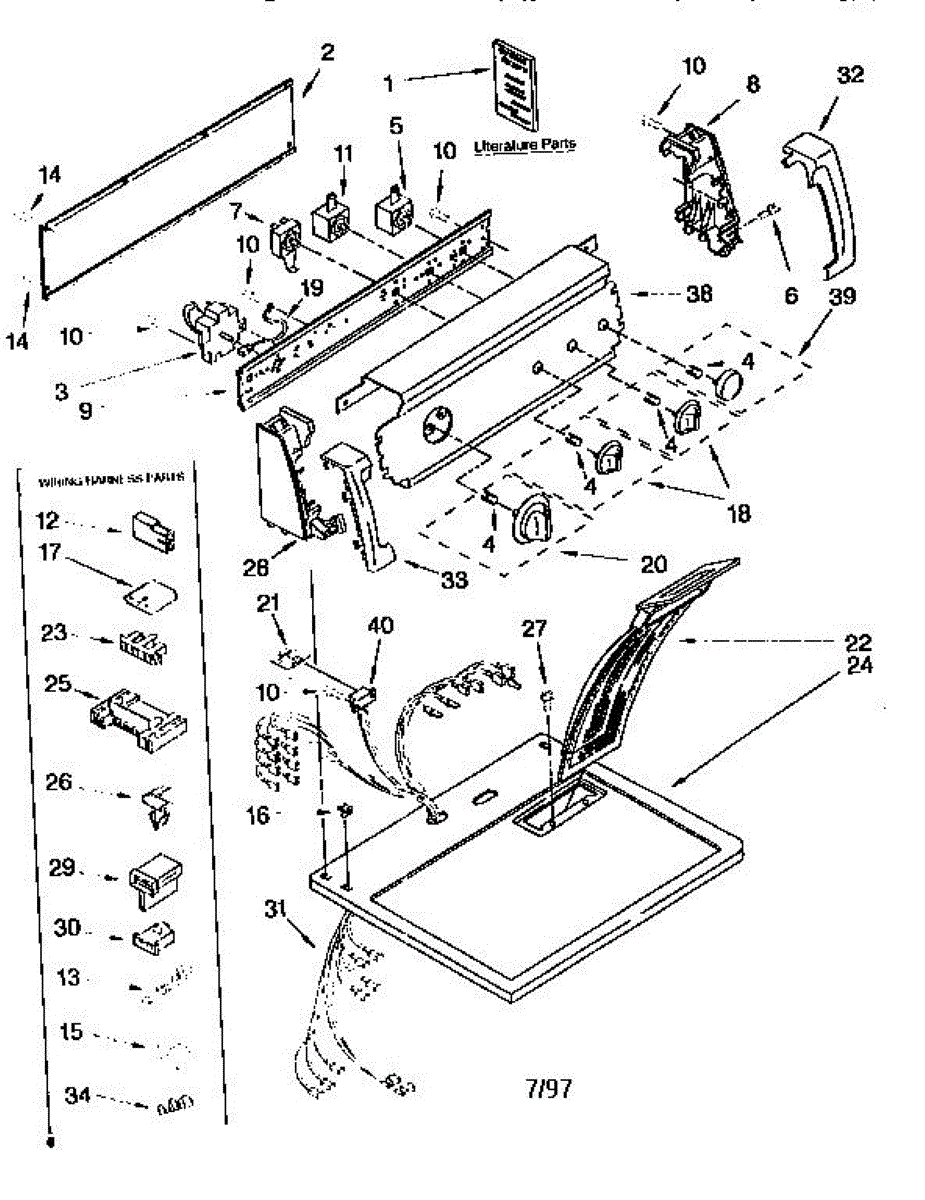

Parts for Kenmore 110.76822693 (11076822693, 110 76822693): Top Console Parts

This part has been discontinued by the manufacturer and is no longer available.

Dryer won't shut off or cycles won't advance? The timer controls cycle duration and automatic shutoff. DIY-friendly repair, typically 10-20 minutes.

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Start Switch is an OEM replacement part for Whirlpool dryers. It is an electronic component responsible for initiating the heating elements and tumble cycles upon user command from the control panel.

Causes of a bad start switch involve general wear over extended use. Failure of the internal conducting surfaces interrupts circuit activation as well.

Symptoms of a bad start switch include:

• Heating elements or tumble cycles that will not engage properly
• Dryer fails to operate or stops mid-cycle unexpectedly
• Control panel appears non-responsive to selections
• Error codes related to ignition or power delivery faults

Note: This dryer push-to-start switch has 2 terminals.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric dryer models.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

Dryer won't heat or overheats on low settings? A faulty temperature selector switch prevents proper heat control. Easy DIY fix in 10-15 minutes.

White end cap kit with left and right caps for the dryer control panel ends. Provides finished appearance and protects panel edges.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

This signal switch controls the appliance's buzzer/alert level, letting the unit sound or change beeper volume so you can hear end-of-cycle or error alerts. It replaces a failed or intermittent buzzer control for reliable audible notifications. What it does

• Sends the control board a signal to enable or adjust the buzzer/alert tones
• Restores audible end-of-cycle and error notifications when the original switch is worn or unresponsive
• Commonly replaces switches that feel loose, don't click, or fail to change the buzzer setting
• Works as the user-accessible control for enabling/disabling or adjusting buzzer functions

• One signal switch

• Disconnect power before servicing to avoid shock or damage
• Handle wiring and connectors gently; verify and match terminals before reconnecting
• Reassemble panels and test buzzer function before full reinstallation

For mating terminal use [AP31136300].

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Push-in.

This lint filter catches lint and debris during the drying cycle to maintain proper airflow through the dryer's exhaust system. A clogged or damaged filter restricts airflow, which forces longer dry times, increases energy costs, and creates a fire hazard from lint buildup in the vent system.

Replace this filter if the pull handle is broken or cracked, the mesh is torn or separating from the frame, rust or metal flakes are visible on the screen, or lint is passing through instead of being trapped. The filter is white, measures approximately 20 inches long (excluding the handle) by 8.5 inches wide, and slides directly into the lint filter slot -- no tools needed, takes under a minute. Clean the filter before every load for best performance.

This lint filter catches lint and debris during the drying cycle to maintain proper airflow through the dryer's exhaust system. A clogged or damaged filter restricts airflow, which forces longer dry times, increases energy costs, and creates a fire hazard from lint buildup in the vent system.

Replace this filter if the pull handle is broken or cracked, the mesh is torn or separating from the frame, rust or metal flakes are visible on the screen, or lint is passing through instead of being trapped. The filter is white, measures approximately 20 inches long (excluding the handle) by 8.5 inches wide, and slides directly into the lint filter slot -- no tools needed, takes under a minute. Clean the filter before every load for best performance.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

White end cap kit with left and right caps for the dryer control panel ends. Provides finished appearance and protects panel edges.

2-position wire connector for dryers. Replaces damaged, melted, or corroded connectors in electrical wiring harnesses. Essential for restoring connections.

This trim piece finishes and protects an opening or edge on your appliance's cabinet or console. Replacing a cracked or missing trim restores a clean, factory look and helps nearby components sit and operate as intended. What it does:

• Provides a clean, finished edge and covers sharp cabinet/console edges
• Helps keep adjacent parts aligned and secured around the opening
• Restores appearance when original trim is cracked, warped, discolored, or missing
• Common symptoms: loose or rattling piece, cosmetic damage, snagging edges, or poor fit of nearby parts

• 1 trim piece

• Disconnect power; if applicable, shut off gas or water. Wear cut-resistant gloves.
• Remove the existing trim by releasing clips or removing screws; note orientation and retain hardware.
• Transfer any reusable clips/inserts from the old trim to the new part.
• Align and snap/screw the new trim into place; do not overtighten.

This trim piece finishes and protects an opening or edge on your appliance's cabinet or console. Replacing a cracked or missing trim restores a clean, factory look and helps nearby components sit and operate as intended. What it does:

• Provides a clean, finished edge and covers sharp cabinet/console edges
• Helps keep adjacent parts aligned and secured around the opening
• Restores appearance when original trim is cracked, warped, discolored, or missing
• Common symptoms: loose or rattling piece, cosmetic damage, snagging edges, or poor fit of nearby parts

• 1 trim piece

• Disconnect power; if applicable, shut off gas or water. Wear cut-resistant gloves.
• Remove the existing trim by releasing clips or removing screws; note orientation and retain hardware.
• Transfer any reusable clips/inserts from the old trim to the new part.
• Align and snap/screw the new trim into place; do not overtighten.

The dryer grounding clip is a small metal fastener that maintains a secure electrical ground connection between components inside your dryer. A proper ground is essential for safe operation and helps protect against electrical shock or appliance damage. Replace this part if it is bent, corroded, or missing, especially if you are experiencing intermittent electrical issues or completing a repair that requires re-grounding internal parts.

Replace your dryer's worn, cracked, or missing control knob. Mounts on the control shaft to select cycle settings and temperatures. Restores grip and clarity.

Fix a dryer that won't start or has no power with this terminal block connector assembly. Common repair for electrical connection issues. Moderate DIY.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
