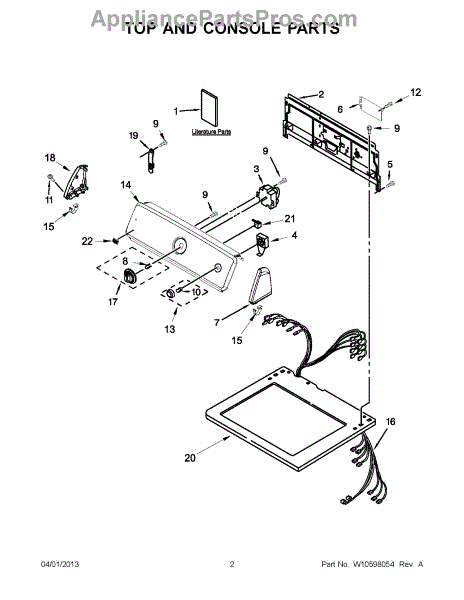

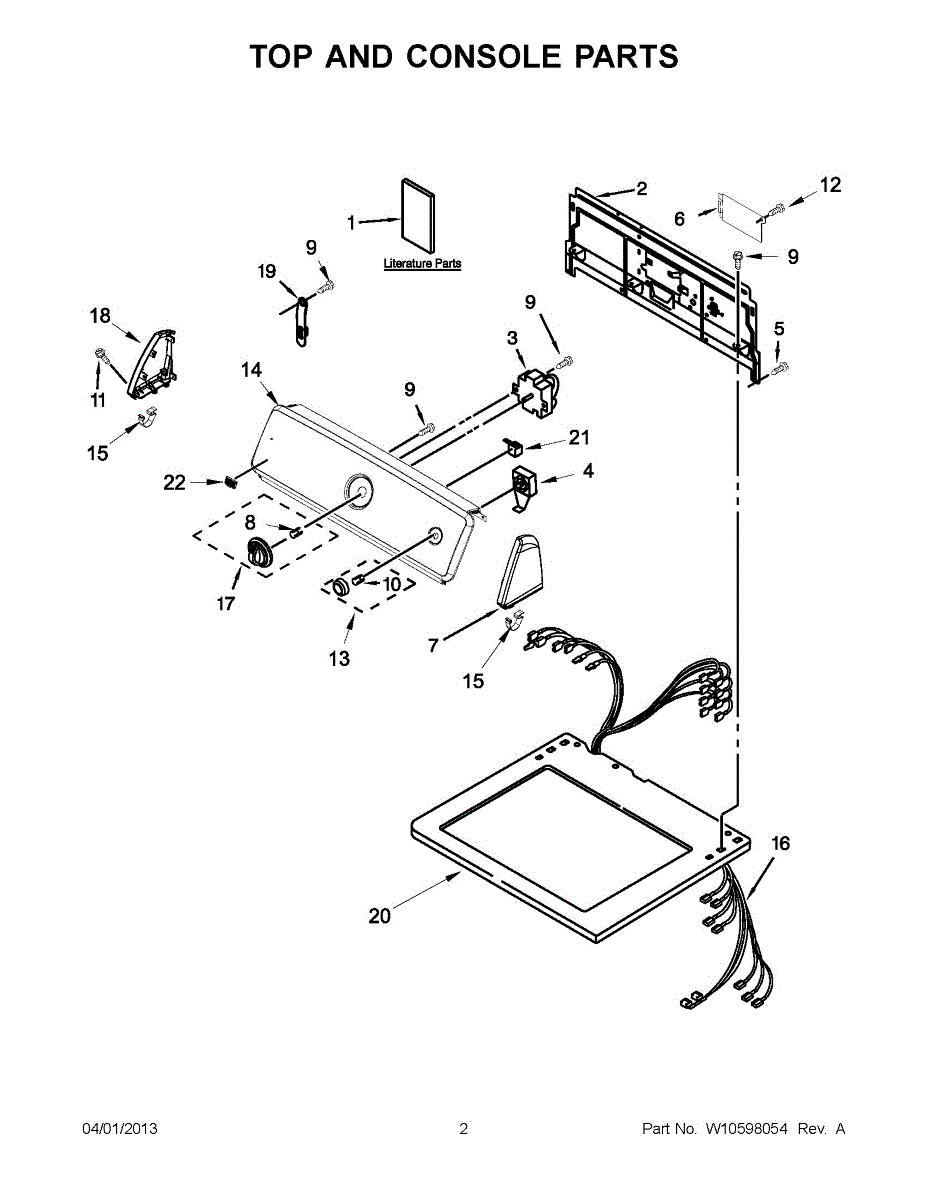

Parts for Maytag 3LMEDC100YW2: 01 - Top And Console Parts

This push-to-start switch momentarily closes the start circuit to begin a cycle. Replacing a worn switch restores reliable starting when you press the Start button.

• Initiates operation by closing the start circuit when pressed
• Works with the door switch and timer/control to begin a cycle
• Common symptoms: won't start when Start is pressed; runs only while the button is held; intermittent starting; Start button feels loose or sticky
• Also known as an on/off PTS or start button switch

• Disconnect power before servicing
• Access the console/control panel and remove the start knob or button if present
• Move wires to the new switch one at a time to maintain correct terminal positions
• Secure the switch in the panel, reassemble, and test Start function

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement knob-dial assembly that restores reliable manual control of your appliance's settings. Use this direct-fit knob to replace cracked, stripped or missing dials so you can accurately select cycles, heat levels or timer positions. What it does:

• Rotates to engage the control shaft and select the appliance setting.
• Provides a clear indicator for position alignment to improve user accuracy.
• Replaces worn, cracked or loose knobs that slip or spin on the shaft.
• Helps restore normal operation when the original knob is missing or broken.

• Disconnect power to the appliance before starting any repair.
• Most models use a push-on fit; align splines and press straight onto the control shaft. Some models may use a retaining screw—refer to the appliance's service instructions.
• After installing, restore power and test the knob through its range of motion; do not operate the appliance if controls are loose or binding.

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.
