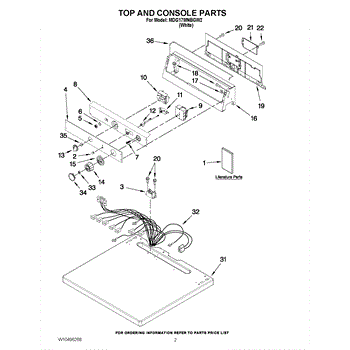

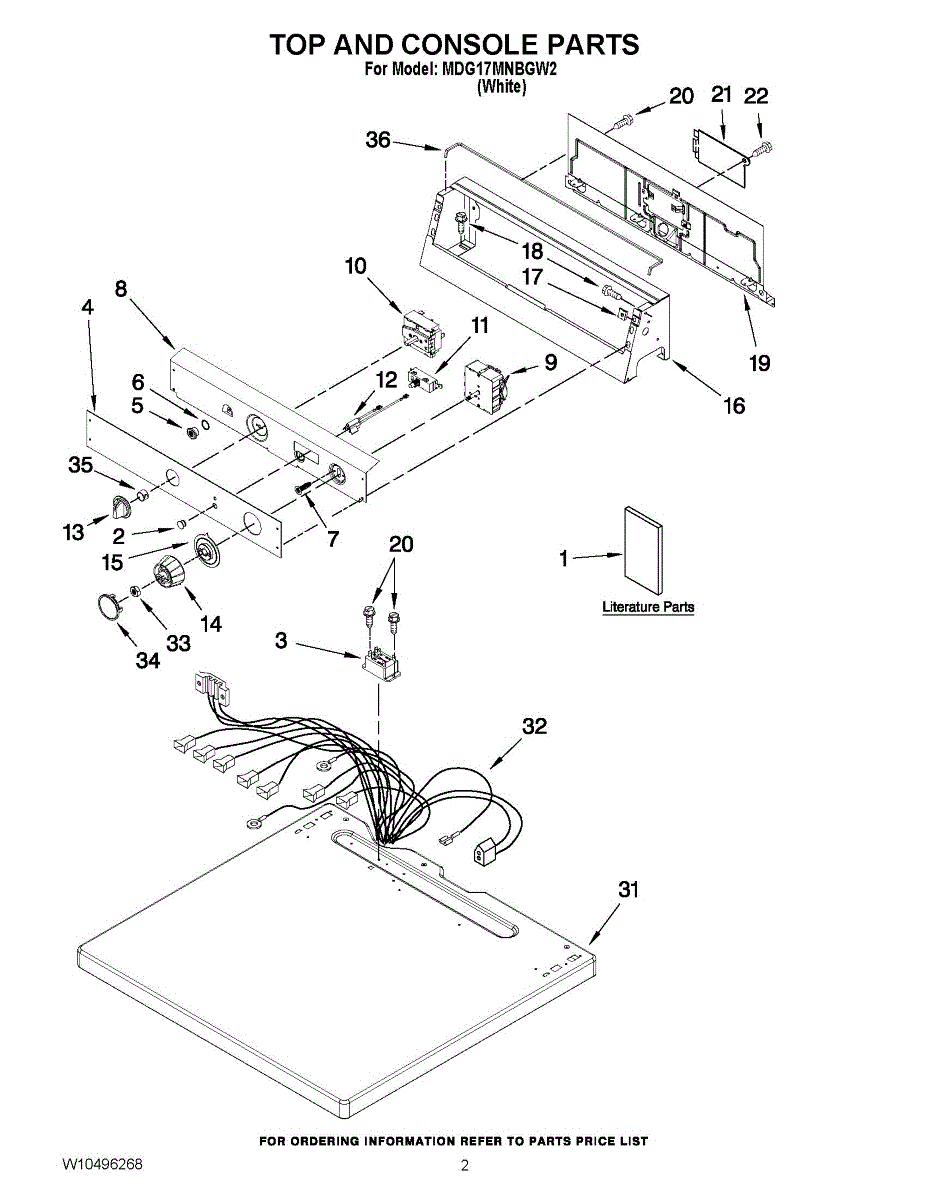

Parts for Maytag MDG17MNBGW2: 01 - Top And Console Parts

This is a replacement pilot light lens — the small cover that protects and diffuses the indicator/bulb on the control panel. It keeps the lamp shielded while letting the pilot light show through clearly. What it does:

• Protects the pilot/indicator bulb from dust, spills and contact.
• Diffuses and focuses the light so the indicator is visible without glare.
• Restores a finished appearance to a cracked, faded or missing lens.
• Helps prevent direct contact with the bulb for safer operation.

• Always disconnect power to the appliance before accessing the control panel.
• Lens may be secured by snap-fit tabs or small screws—remove the control panel or knob as needed.
• Handle the lens carefully to avoid scratches; align tabs or screw holes and seat fully.
• If the indicator still does not light after installation, check the bulb and wiring.

The Relay is an OEM part for Whirlpool dryers. This part acts as a switch, controlling the flow of electrical current to various parts of the dryer, such as the heating element or the motor.

Over time, relays can fail due to wear and tear, electrical issues, or overheating. When a relay malfunctions, it may prevent the dryer from starting, heating, or performing correctly.

Symptoms of a bad Relay include:

• The dryer does not start
• The dryer does not heat
• Unusual noises during operation
• The dryer stops unexpectedly during a cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The push-to-start switch activates the dryer motor when you press the Start button. Replacing it restores dependable starting with one press.

• Completes the start circuit to power the motor when pressed; spring-returns when released
• Restores normal operation when the original switch is worn, stuck, or electrically open
• Symptoms include: dryer won't start, starts only while button is held, intermittent starting, or no response when pressing Start
• Mounts in the control console behind the Start button/knob; connects with spade terminals

• Disconnect power to the dryer before servicing
• Remove the console/trim as needed to access the switch; pull off the knob if present
• Note wire positions (take a photo); move wires to the new switch one at a time and secure
• Test operation; also check the door switch, thermal fuse, and belt switch

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A small hex nut used to secure components and fasteners on compatible Whirlpool appliances. Replaces a worn or missing nut to restore proper part retention and reduce noise or loose fittings. What it does:

• Secures panels, brackets, or components that use a matching bolt or stud
• Helps prevent rattling, vibration, or parts coming loose during operation
• Restores a proper threaded connection when the original nut is stripped or missing
• Works wherever the correct thread size and profile are required

• Unplug the appliance or disconnect power before starting any repair
• Use the correct-size wrench or socket to avoid rounding the nut
• Tighten securely but avoid overtightening, which can strip threads or crack parts
• Inspect mating bolts/studs and replace if damaged

This foam seal cushions and seals the icemaker area to reduce vibration and prevent air leaks that can affect ice quality and efficiency. It's a direct-fit replacement designed to restore proper sealing around the icemaker housing. What it does:

• Cushions the icemaker assembly to reduce noise and movement
• Helps seal gaps to limit warm air intrusion that can cause icemaking issues
• Supports consistent ice production by maintaining the intended airflow path
• Resists compression set for reliable sealing over time

• One foam seal for the icemaker housing

• Basic installation; remove power to the appliance before starting
• Align the seal to the icemaker housing, pressing into place until fully seated
• Inspect surrounding surfaces for debris or damage and clean before installing
