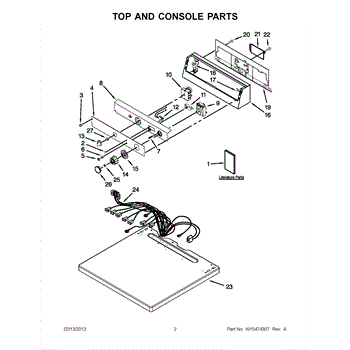

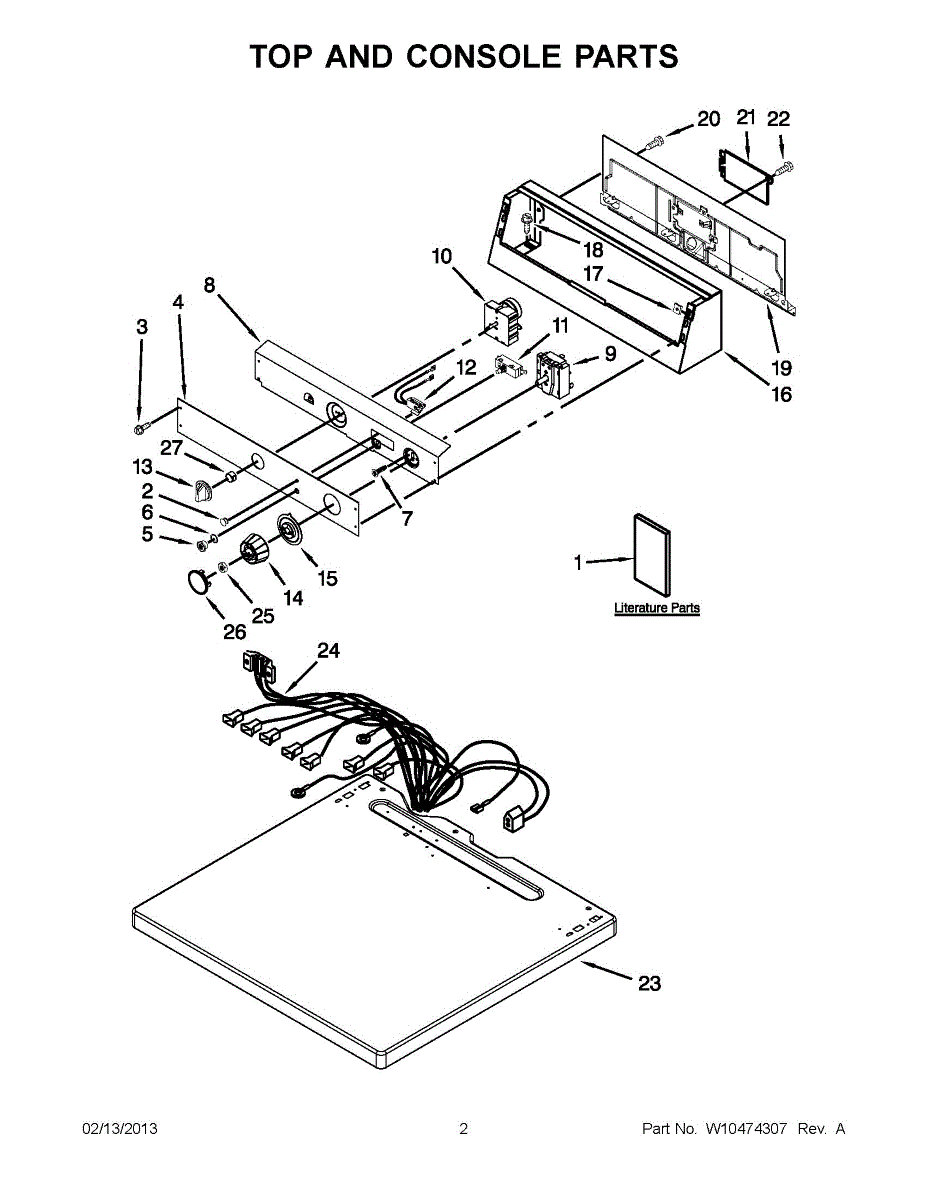

Parts for Maytag MDG18MNAWW0: 01 - Top And Console Parts

This is a replacement pilot light lens — the small cover that protects and diffuses the indicator/bulb on the control panel. It keeps the lamp shielded while letting the pilot light show through clearly. What it does:

• Protects the pilot/indicator bulb from dust, spills and contact.
• Diffuses and focuses the light so the indicator is visible without glare.
• Restores a finished appearance to a cracked, faded or missing lens.
• Helps prevent direct contact with the bulb for safer operation.

• Always disconnect power to the appliance before accessing the control panel.
• Lens may be secured by snap-fit tabs or small screws—remove the control panel or knob as needed.
• Handle the lens carefully to avoid scratches; align tabs or screw holes and seat fully.
• If the indicator still does not light after installation, check the bulb and wiring.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This cycle selector switch lets you choose and engage the desired operating cycle from the control panel. When it wears out or fails, the appliance may not start on certain settings or may change cycles unpredictably.

• Allows selection of the operating cycle from the control panel
• Routes the correct signals to the timer/main control for the chosen cycle
• Common symptoms: won't start on the selected cycle, only one cycle works, erratic or unintended cycle changes, selector feels loose or fails to hold a setting

• Disconnect power before servicing
• Access the switch from the console/control panel area
• Note wire locations or take a photo; transfer wires to the new switch one at a time
• Secure the switch, reassemble the console, and test cycle selection

The push-to-start switch activates the dryer motor when you press the Start button. Replacing it restores dependable starting with one press.

• Completes the start circuit to power the motor when pressed; spring-returns when released
• Restores normal operation when the original switch is worn, stuck, or electrically open
• Symptoms include: dryer won't start, starts only while button is held, intermittent starting, or no response when pressing Start
• Mounts in the control console behind the Start button/knob; connects with spade terminals

• Disconnect power to the dryer before servicing
• Remove the console/trim as needed to access the switch; pull off the knob if present
• Note wire positions (take a photo); move wires to the new switch one at a time and secure
• Test operation; also check the door switch, thermal fuse, and belt switch

This interior lamp assembly replaces a damaged or burned-out refrigerator light to restore clear visibility inside the compartment. It provides a direct swap for the factory-installed lamp housing and bulb connection. What it does:

• Holds and powers the interior light so you can see food and controls clearly
• Restores a light that is dim, flickering, or not turning on
• Ensures proper fit and alignment with the factory lamp opening and wiring
• Works with the door switch to turn the lamp on and off as intended

• Disconnect power to the appliance before installing to prevent shock
• Remove trim or lens per your model's instructions to access the lamp housing
• Handle the bulb carefully; replace with the correct rated bulb
• Test the light operation after installation and reassemble the lens/trim securely

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A small hex nut used to secure components and fasteners on compatible Whirlpool appliances. Replaces a worn or missing nut to restore proper part retention and reduce noise or loose fittings. What it does:

• Secures panels, brackets, or components that use a matching bolt or stud
• Helps prevent rattling, vibration, or parts coming loose during operation
• Restores a proper threaded connection when the original nut is stripped or missing
• Works wherever the correct thread size and profile are required

• Unplug the appliance or disconnect power before starting any repair
• Use the correct-size wrench or socket to avoid rounding the nut
• Tighten securely but avoid overtightening, which can strip threads or crack parts
• Inspect mating bolts/studs and replace if damaged
