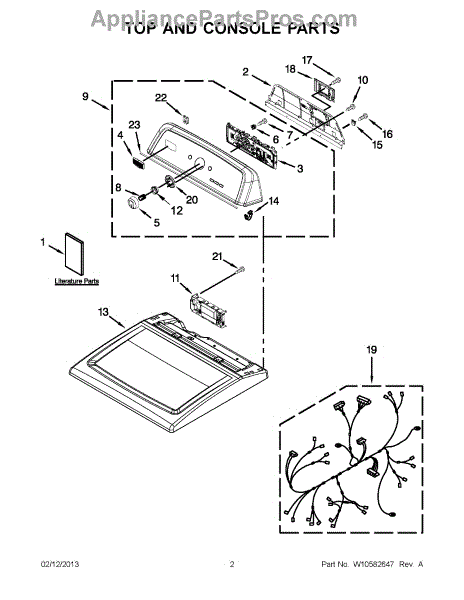

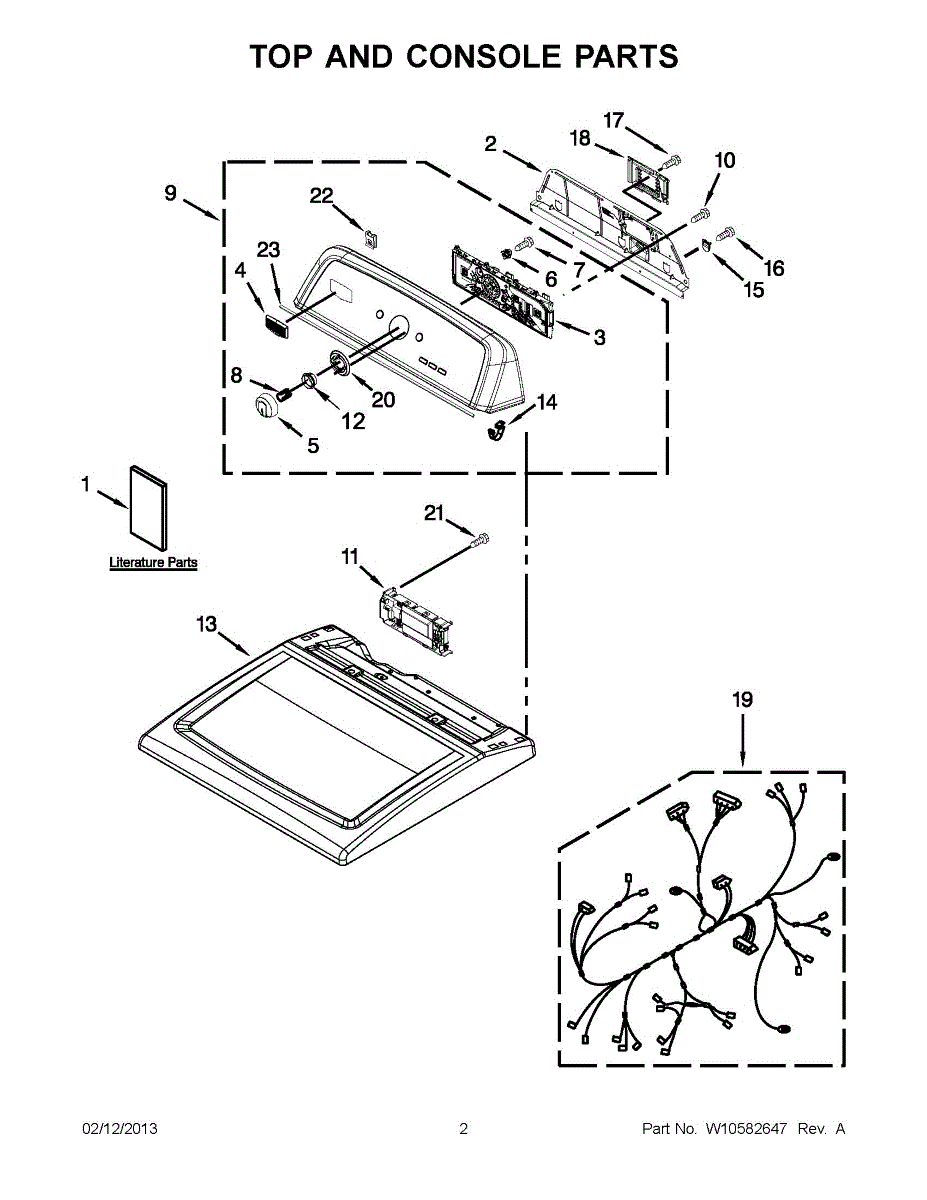

Parts for Maytag MEDX600XW1: 01 - Top And Console Parts

This electronic control board is the dryer's user interface assembly that accepts button and dial inputs and controls drying cycles, timing and display feedback so the machine runs the selected program reliably. What it does:

• Receives and interprets user inputs (buttons/knobs) and sends commands to the dryer's main control systems
• Drives the display and indicator lights so cycle status and settings are visible
• Controls cycle selection, start/stop commands and communicates status to other modules
• Commonly used to fix unresponsive controls, non-working display, incorrect cycles, or failure to start when the UI is at fault

• Disconnect power (unplug or shut off the breaker) before servicing to avoid shock
• Handle the board by its edges and avoid touching contacts; discharge static by grounding yourself
• Note connector locations before removal and fully seat all wiring harnesses during reassembly

This replacement control knob lets you select settings and operate the appliance's controls with a secure grip and clear position index. Restores reliable user control when the original knob is cracked, loose, or worn. What it does:

• Replaces a damaged or missing control/selector knob so you can turn and set controls accurately
• Snaps onto the control shaft to provide a solid tactile stop and visible setting indicator
• Commonly used when the original knob is cracked, stripped, stiff, or spins on the shaft
• Matches OEM fit and rotation for proper function and alignment

• One control knob

• Remove power to the appliance before replacing the knob to avoid injury
• Pull the old knob straight off the control shaft and push the new knob onto the shaft until it seats
• If the knob will not fully seat, check for obstructions or a damaged shaft before forcing it

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This electronic control board (CCU Sahara2 VMD) manages and coordinates your appliance's user interface, cycles, and system diagnostics so the machine runs the settings you choose reliably. It replaces a failing main control to restore normal control functions. What it does:

• Receives user inputs and sends commands to motors, valves, and heaters to run selected cycles
• Manages timing, cycle sequencing, and diagnostic/error reporting
• Updates and displays status to the console and coordinates sensor feedback
• Common symptoms of a failing board: no response to controls, intermittent operation, incorrect cycles, or persistent error codes

• One electronic control board (CCU Sahara2 VMD)

• Disconnect power before servicing to avoid shock or damage
• Handle the board by the edges and avoid static discharge; use an anti-static wrist strap if available
• Verify all harness connections are fully seated and inspect connectors for damage before powering up

This spacer positions and secures components in place to maintain proper alignment and clearance. It helps reduce vibration and wear by keeping parts correctly spaced inside the appliance. What it does:

• Provides stable separation between panels, brackets or components to ensure correct fit
• Helps prevent rubbing, vibration noise, and premature wear caused by misaligned parts
• Used where a precise gap or mounting offset is required for proper operation
• Commonly installed during repairs or when replacing damaged mounting hardware

• Inspect surrounding mounting points and fasteners; replace any stripped or damaged hardware
• Use correct fastener torque and avoid over-tightening to prevent deformation
• Disconnect power to the appliance before working in or near electrical components

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This terminal cover protects and conceals the appliance's electrical wire terminals for safer handling and cleaner internal appearance. It helps reduce accidental contact with live connections and keeps wiring organized. What it does:

• Covers exposed wire terminals to help prevent accidental contact and shorting
• Keeps wiring routed and held in place for improved serviceability
• Protects terminals from dust and debris that can affect connections
• Supports safer access during diagnostics and repairs

• One terminal cover, as shown

• Disconnect power to the appliance before attempting any service
• Remove outer panels as needed to access the terminal area; use manufacturer service guide for panel removal steps
• Align cover over the terminal block and secure per factory mounting points; do not force or modify
• If terminals or wiring appear damaged or corroded, replace or repair those components before reinstalling the cover

This replacement bezel restores the control panel trim for a smooth, finished look and helps protect the console area from spills and wear. It's a direct-fit cosmetic and protective piece for the appliance control area. What it does:

• Covers and protects the control panel surface and underlying components from spills and damage
• Provides the finished trim that secures buttons, dials, or the display area
• Replaces cracked, warped, or cosmetically damaged trim that can catch debris or impede controls
• Helps keep the control area sealed and easier to clean

• Disconnect power to the appliance before starting any repairs to avoid shock or injury
• Typical installation requires removing a few screws or clips on the control console; keep fasteners for reassembly
• Handle painted or plastic surfaces carefully to avoid scratching; use a soft, non-marring tool to pry clips if needed

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair
