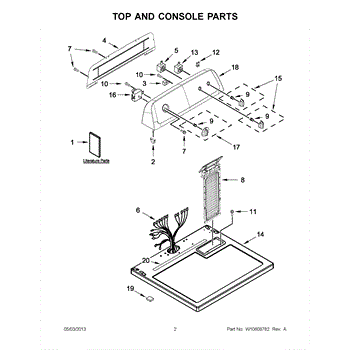

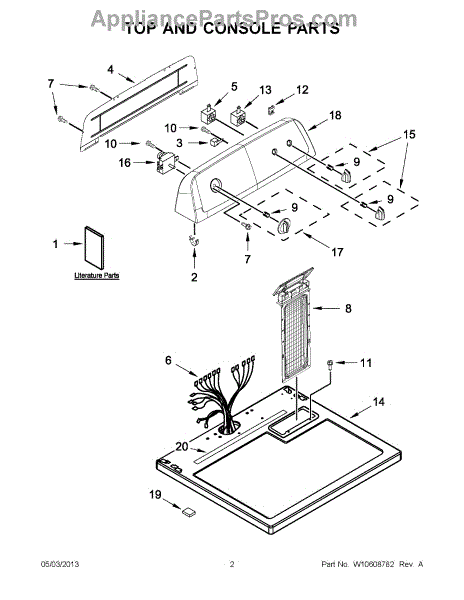

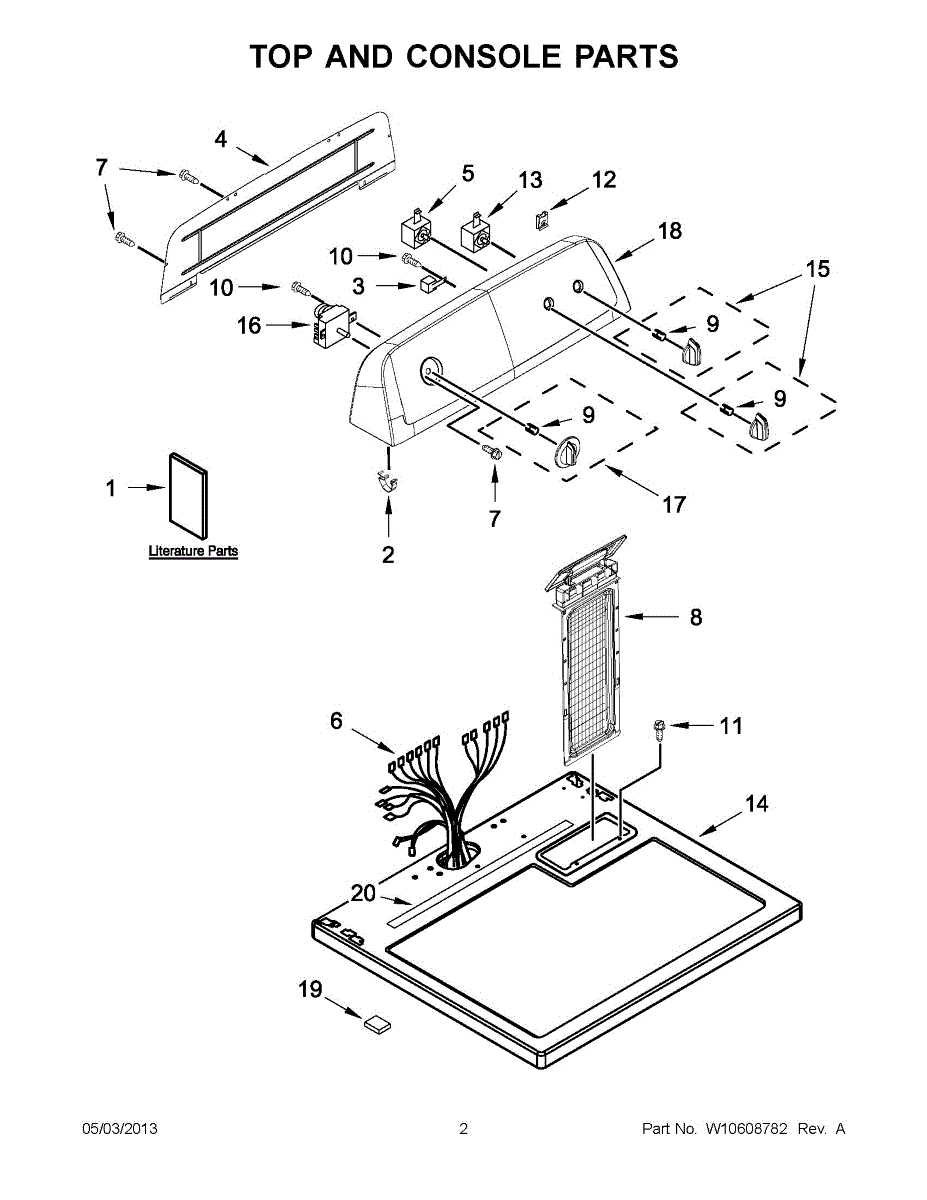

Parts for Maytag NGD4700YQ2: 01 - Top And Console Parts

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This rear panel replaces the dryer's back bulkhead to restore the appliance's structural enclosure and help protect internal components from dust and debris. It provides a clean mounting surface for internal parts and improves cabinet integrity. What it does:

• Replaces a damaged, dented, or corroded rear cabinet panel
• Protects internal wiring, ducts, and components from external debris
• Restores proper mounting surfaces for internal assemblies and fasteners
• Helps maintain correct airflow paths by sealing the dryer cabinet

• One rear panel/back bulkhead

• Disconnect power (and gas if applicable) before beginning any repair
• Installation typically requires removing the dryer cabinet and several fasteners; keep hardware for reuse unless damaged
• Inspect and replace any worn gaskets, seals, or mounting clips while cabinet is open

This replacement switch restores reliable electrical switching for the circuit it controls in your appliance, so the connected feature responds consistently when actuated. Worn or heat-damaged contacts can cause intermittent operation, no response, or a function stuck on/off.

• Opens and closes an electrical circuit to signal a control or provide power to a component
• Helps ensure the controlled feature turns on/off at the correct time
• Symptoms can include no response when actuated, intermittent operation, or a function that remains on/off
• Physical clues may include loose terminals, arcing, or burned contacts on the original switch

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Access and mounting location vary by model; remove panels as needed to reach the switch
• Photograph wiring and transfer leads one at a time to matching terminals; avoid pulling on wire insulation
• Secure the switch, restore power, and test the function for proper operation

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

The Push-to-Start Switch is an OEM replacement part for Whirlpool dryers. This component is the button you press to initiate the drying cycle. Once pressed, the switch sends an electrical signal to the dryer's motor, activating the machine and beginning the drying process.

Causes for a malfunctioning Push-to-Start Switch can include electrical issues, wear and tear from frequent use, or damage due to mishandling or accidental impact.

Symptoms of a bad Push-to-Start Switch include:

• Dryer not starting despite pressing the button
• The need to press the button multiple times for activation
• Intermittent starting and stopping of the dryer
• Unusual sounds when pressing the switch

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the appliance's main top panel assembly. It restores a clean, sturdy top surface and protects internal components, helping the unit look and function like new after cosmetic or physical damage.

• Forms the finished top surface of the appliance and protects internal wiring/mechanisms
• Provides mounting/attachment points for surface components specific to the model
• Helps maintain proper alignment of surrounding panels and trim
• Common signs it needs replacement: dents, cracks, chips, rust, bowed or loose panel, rattling, or sharp edges

• Disconnect power to the appliance; shut off gas/water if your model requires it.
• Wear cut-resistant gloves and handle carefully to avoid bending or chipping the panel.
• Transfer any reusable brackets, trim, or grommets from the original panel to the new one.
• Reinstall using existing fasteners; avoid overtightening on painted or glass surfaces.

This knob assembly replaces the "modifier" control knob on the console so you can adjust settings smoothly and reliably again. Restore a secure, positive-turn feel when the original knob is cracked, stripped, or missing.

• Attaches to the control shaft to select and adjust options/settings
• Replaces knobs that are cracked, broken, or missing
• Fixes a knob that spins freely, slips, or won't turn the control
• Restores proper selection and tactile feedback during use

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the shaft; avoid prying against the panel
• Align the flat/splines on the new knob with the shaft and press on firmly until fully seated
• The pointer aligns with the panel markings before use

This mechanical timer controls your refrigerator's automatic defrost cycle. Replacing a worn or stuck timer restores routine defrosting to prevent frost buildup and helps the appliance maintain steady, reliable cooling. What it does:

• Alternates power between the cooling circuit and the defrost heater at set intervals
• Helps clear frost from the evaporator so air can circulate properly
• Common failure symptoms: heavy frost on the back wall/evaporator, fresh-food section too warm, unit never defrosts or gets stuck in defrost, compressor running excessively

• 1 defrost timer

• Disconnect power before servicing
• Access the timer (often in the control housing or rear service area); note wire positions with a photo
• Transfer wires one at a time to matching terminals and snap the timer into the bracket/original orientation
• Restore power and monitor through a cooling/defrost cycle to normal operation

The Knob is an OEM replacement part for Whirlpool washers and dryers. The control knob lets you control cycle settings. Remove the knob by pulling it straight off its post.

Causes of a bad knob can include wear and tear over time resulting in loose or unstable function, cracks or chips in the plastic housing, or damage due to impact or abuse during removal from the post.

Symptoms of a bad knob include:

• Difficulty rotating or selecting settings
• Settings that do not stay in place after selection
• Cracked or broken knob housing
• Knob constantly moving out of the desired setting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement refrigerator door gasket seals the door to help keep cold air in and improve temperature stability. It restores the sealing surface so the appliance can cool more efficiently and reduce moisture buildup. What it does

• Replaces a worn, torn, or warped door seal to restore an airtight fit
• Helps prevent warm air leaks that can cause temperature fluctuations
• Reduces frost and condensation buildup around the door opening
• Can improve energy efficiency when the door closes properly

• Disconnect power to the appliance or unplug the refrigerator before beginning work
• Remove the old gasket by loosening retainer screws or pulling out the retainer track as applicable; compare new gasket to ensure correct orientation
• Seat the new gasket evenly into the retainer channel, starting at the top corners and working around; tighten retainers if used
• Allow the gasket to form to the door edge; avoid sharp bends or creases during installation
