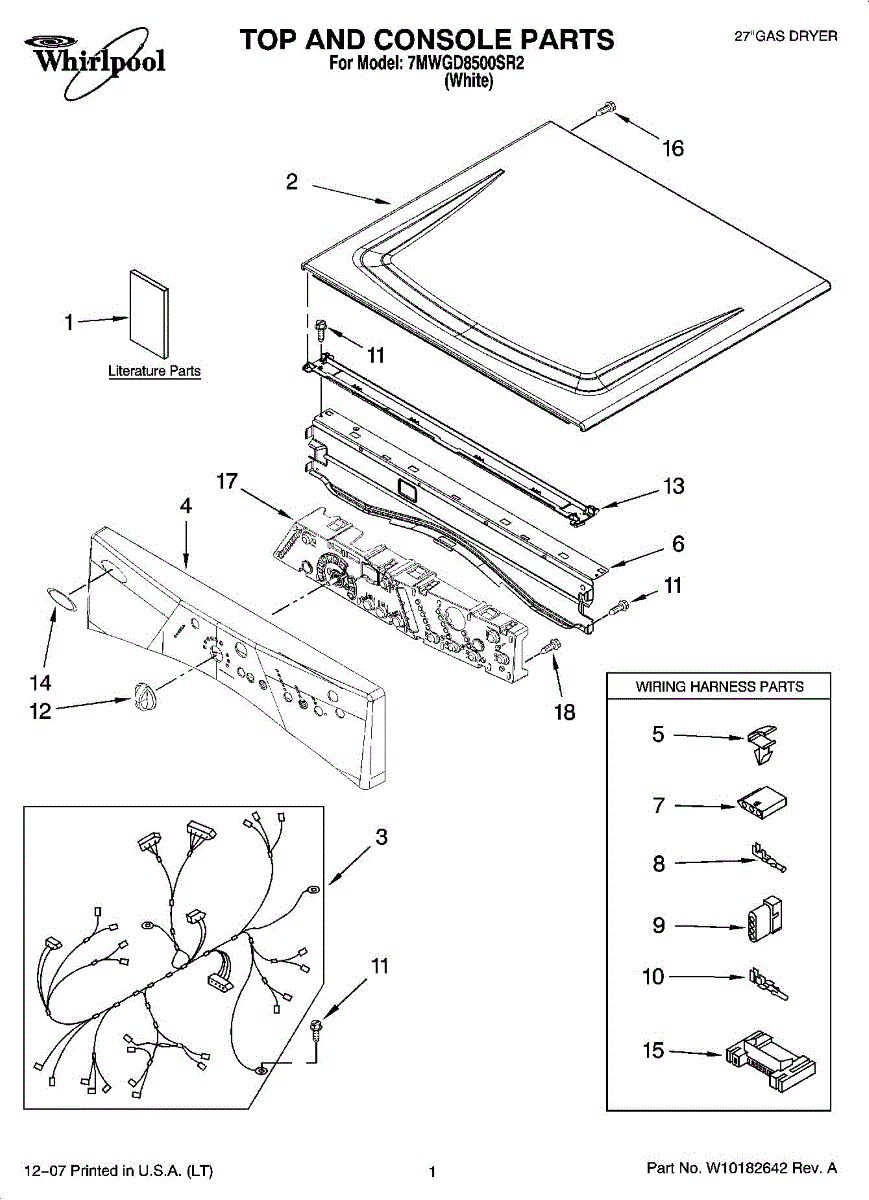

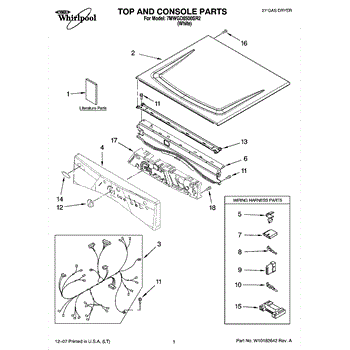

Parts for Whirlpool 7MWGD8500SR2: 01 - Top And Console Parts

White dryer top panel that covers the drum and internal components. Replace if cracked, damaged, rusty, or worn from heavy use or chemical spills.

Wire harness for dryers. Connects electrical components inside the dryer cabinet. Replace if wires are frayed, damaged, or connections are loose or broken.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

Structural bracket that secures components inside your dryer. Replace if bracket is rusty, bent, broken, or missing to restore proper support and alignment.

For mating plug use 691707.

For mating terminal use [AP31136300].

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

For mating terminal use WP94614.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Restore smooth, accurate control with this replacement control knob. It fits onto the selector or timer shaft so you can choose cycles, temperatures, or time and replace a cracked, stripped, loose, or missing knob.

• Attaches to the control shaft

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• O
