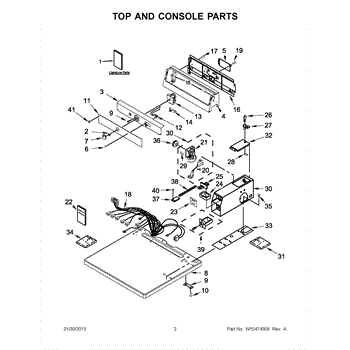

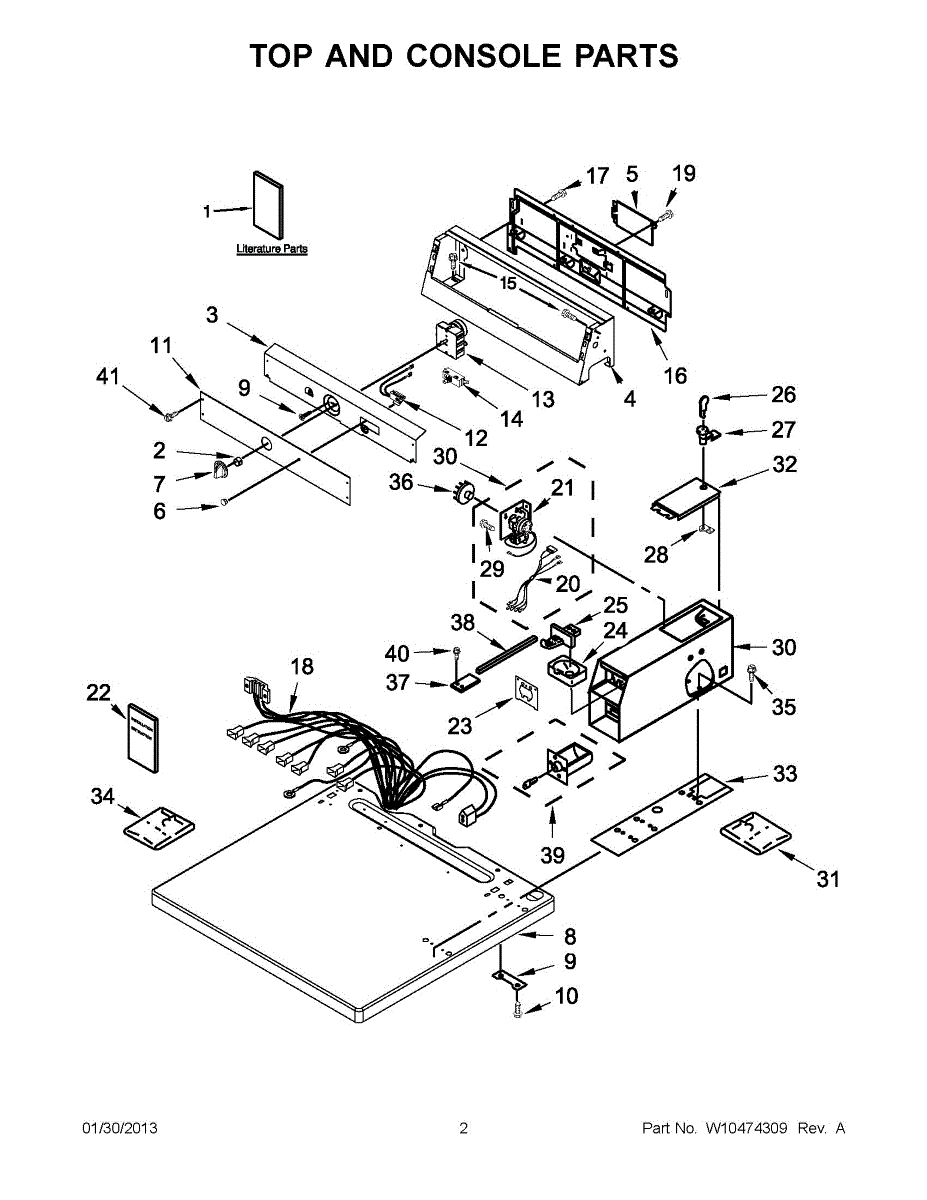

Parts for Whirlpool CEM2743BQ0: 01 - Top And Console Parts

This control panel is the console assembly that houses the oven/range user controls and display, restoring responsive button input and clear status feedback for normal operation. It replaces a worn, cracked, or unresponsive console to return reliable control. What it does:

• Provides the front-facing buttons, touch controls and display interface used to select bake, broil, timers and settings
• Routes user commands to the oven control board so cycles and temperature changes start correctly
• Commonly replaces panels that are cracked, faded, or have unresponsive buttons or missing indicators
• Helps resolve intermittent or no-response control inputs when the panel hardware is the failed component

• One control panel (console assembly) as shown

• Disconnect power to the appliance at the breaker before starting; electric shock hazard
• Handle the assembly carefully to avoid damaging the display, ribbon cables, and connectors
• Some models require removing trim, screws, or the oven door for access; keep fasteners organized
• If you see additional electronic damage or error codes after swap, verify the main control board and wiring harness

This terminal cover protects and conceals the appliance's electrical wire terminals for safer handling and cleaner internal appearance. It helps reduce accidental contact with live connections and keeps wiring organized. What it does:

• Covers exposed wire terminals to help prevent accidental contact and shorting
• Keeps wiring routed and held in place for improved serviceability
• Protects terminals from dust and debris that can affect connections
• Supports safer access during diagnostics and repairs

• One terminal cover, as shown

• Disconnect power to the appliance before attempting any service
• Remove outer panels as needed to access the terminal area; use manufacturer service guide for panel removal steps
• Align cover over the terminal block and secure per factory mounting points; do not force or modify
• If terminals or wiring appear damaged or corroded, replace or repair those components before reinstalling the cover

This is a replacement pilot light lens — the small cover that protects and diffuses the indicator/bulb on the control panel. It keeps the lamp shielded while letting the pilot light show through clearly. What it does:

• Protects the pilot/indicator bulb from dust, spills and contact.
• Diffuses and focuses the light so the indicator is visible without glare.
• Restores a finished appearance to a cracked, faded or missing lens.
• Helps prevent direct contact with the bulb for safer operation.

• Always disconnect power to the appliance before accessing the control panel.
• Lens may be secured by snap-fit tabs or small screws—remove the control panel or knob as needed.
• Handle the lens carefully to avoid scratches; align tabs or screw holes and seat fully.
• If the indicator still does not light after installation, check the bulb and wiring.

This is a replacement rotary control knob that restores secure, accurate control of your appliance's settings. It installs on the control shaft to make selecting cycles or heat levels easy again. What it does:

• Fits onto a control shaft to allow turning and selecting settings
• Replaces a cracked, stripped, missing, or hard-to-turn knob
• Restores tactile grip and clear position control for safe operation
• Helps prevent accidental setting changes from a damaged knob

• Always disconnect power to the appliance before servicing controls
• Pull the old knob straight off the control shaft; push the new knob on until fully seated
• Do not force the knob if it does not fit — check shaft style or adapter requirements

This interior lamp assembly replaces a damaged or burned-out refrigerator light to restore clear visibility inside the compartment. It provides a direct swap for the factory-installed lamp housing and bulb connection. What it does:

• Holds and powers the interior light so you can see food and controls clearly
• Restores a light that is dim, flickering, or not turning on
• Ensures proper fit and alignment with the factory lamp opening and wiring
• Works with the door switch to turn the lamp on and off as intended

• Disconnect power to the appliance before installing to prevent shock
• Remove trim or lens per your model's instructions to access the lamp housing
• Handle the bulb carefully; replace with the correct rated bulb
• Test the light operation after installation and reassemble the lens/trim securely

This cycle selector switch lets you choose and engage the desired operating cycle from the control panel. When it wears out or fails, the appliance may not start on certain settings or may change cycles unpredictably.

• Allows selection of the operating cycle from the control panel
• Routes the correct signals to the timer/main control for the chosen cycle
• Common symptoms: won't start on the selected cycle, only one cycle works, erratic or unintended cycle changes, selector feels loose or fails to hold a setting

• Disconnect power before servicing
• Access the switch from the console/control panel area
• Note wire locations or take a photo; transfer wires to the new switch one at a time
• Secure the switch, reassemble the console, and test cycle selection

The Push to Start Switch is an OEM part for Whirlpool dryers. This switch is responsible for initiating the drying cycle when you press it. It ensures that the dryer starts and operates correctly, providing a convenient way to begin the drying process.

You should replace the push to start switch if it becomes faulty or unresponsive. Common causes of a bad switch include electrical wear and tear, damage from repeated use, or internal component failure.

Symptoms of a bad push to start switch include:

• Dryer not starting when the switch is pressed
• Intermittent operation or having to press the switch multiple times
• No response or click sound when pressing the switch
• Dryer starting and stopping unexpectedly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Timer is an OEM part for Whirlpool dryers. This part controls the length of each cycle and ensuring the proper sequence of operations, such as heating, tumbling, and cooling.

Causes of a bad timer can include electrical faults, worn-out gears, or internal component failure.

Symptoms of a bad Timer include:

• The dryer not advancing through cycles
• The machine stopping mid-cycle
• Incorrect cycle durations
• The dryer not starting at all

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Kit includes six stickers: $0.75, $1.00, $1.25, $1.50, $1.75, $2.00.

This replacement funnel guides dryer airflow from the drum into the lint screen housing. Replacing a cracked or missing funnel helps restore a tight air path for efficient drying and keeps lint contained inside the proper ductwork.

• Directs exhaust air from the drum into the lint screen/duct path
• Helps prevent lint blowback and cabinet contamination
• A damaged or warped funnel can cause longer dry times and poor airflow
• Contribute to excess lint in the drum or overheating symptoms

• Disconnect power; for gas models, also shut off the gas supply
• Access is typically through the top or front panel; remove lint duct fasteners as needed
• Transfer and reuse existing mounting hardware and any seals
• Clean lint from mating ducts and ensure an airtight fit before reassembly

This coin funnel channels coins from the coin slide/drop into the collection box on coin-operated laundry equipment. Replacing a damaged or missing funnel restores smooth coin flow and helps prevent jams and lost coins inside the cabinet.

• Guides coins from the slide/drop into the collection/coin box
• Helps prevent coins from spilling into the cabinet and causing jams
• Cracks, warping, or misalignment can cause coin back-ups or coins showing up inside the machine
• Visible damage or frequent coin jams indicate the funnel should be replaced

• Disconnect electrical power before servicing; for gas dryers, also shut off gas supply
• Remove coin box and open the meter case/console to access the funnel
• Reuse existing mounting hardware; install the new funnel in the same orientation
• Clear debris and test coin travel by hand before reassembly and returning to service

The Coin Slide is an OEM replacement part for Whirlpool washers. It is vertical 8 coin chute for payment in commercial or coin-operated laundry washers. It provides a secure and reliable mechanism for accepting coins, ensuring smooth operation and hassle-free lock box transactions.

Symptoms of a bad coin slide include:

• Coins getting stuck or not sliding smoothly
• Failure to register or accept coins
• Inconsistent or unreliable coin acceptance

A faulty coin slide can occur due to regular use, jammed coins, or damage to the internal components. If you experience issues such as coins getting stuck or not registering, it may be time to replace the coin slide.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This is the factory key that unlocks the unit's service access door, restoring proper access for maintenance and settings. Replace a lost, bent, or worn key to open the service door without damaging the lock or panel. What it does:

• Unlocks the service/access door on compatible units
• Restores access when the original key is lost, broken, or bent
• Helps prevent prying or damage to the door and lock
• Common symptoms: cannot open service door; key will not turn; missing key

• Service door key

• Disconnect power before servicing internal components after opening the door
• Insert the key fully and turn to release the latch; support the panel as it opens
• Do not force a key that won't turn—check for lock damage
• Store a spare key in a secure location to avoid downtime

This lock cam is a small actuator that drives the appliance's door-lock mechanism. It translates the lock actuator's movement into a positive latch, helping the door lock securely when required and release correctly so cycles start and finish properly.

• Interfaces with the lock actuator and latch to engage and release the lock
• Wear, cracking, or rounding can cause the lock not to engage or to stick
• Common symptoms include a door/lid that won't lock or unlock, loose lock lever, clicking without latching, or door/lock-related error messages
• Restores proper linkage travel and switch actuation when the original cam is worn or damaged

• Disconnect power to the appliance before servicing
• Access the lock mechanism per your model; note the cam's orientation and any springs/linkages
• Install the new cam fully seated and ensure it engages the actuator and latch smoothly
• Reassemble, restore power, and test lock operation

This cage nut has 5/16-18 threads and clips into a panel or frame opening to create a durable, replaceable threaded anchor. It restores a solid mounting point so screws can securely fasten panels, brackets, or hardware.

• Provides a 5/16-18 threaded anchor in thin sheet metal or chassis openings
• Secures panels, brackets, and components where factory threads are not possible or have stripped
• Helps eliminate looseness, rattling, or misalignment when a mounting point fails
• Symptoms of a failed/missing cage nut include a screw that won't tighten or hold, loose panels, and vibration noises

• Disconnect power and allow moving parts to stop before servicing
• Remove the screw and old cage nut; compress the new nut's tabs and snap it fully into the opening
• Align threads and start the screw by hand to avoid cross-threading
• Tighten the screw until snug; do not overtighten into sheet metal

This replacement case is the outer housing piece that secures and protects control components and internal wiring, restoring the appliance's structural fit and finish. Use it when cracked, broken, or missing to keep internal parts stable and shielded. What it does

• Provides a protective housing for control components and wiring to prevent damage and debris ingress
• Restores proper alignment and mounting points for switches, panels, or brackets
• Helps maintain the appliance's appearance by replacing cracked or warped exterior parts
• Reduces vibration and movement of internal parts by providing a secure mounting surface

• One replacement case (housing) as shown

• Disconnect power (and water, if applicable) before starting any repair
• Inspect mounting tabs and fasteners; replace any damaged screws or clips for a secure fit
• Handle plastic edges carefully to avoid cracking; do not force tabs into place

This coin chute is the user-facing coin entry assembly for coin-operated laundry machines, guiding coins into the mechanism for payment and helping prevent jams for reliable cycle starts. Simple replacement restores proper coin acceptance. What it does:

• Guides and directs coins into the coin mechanism so machines register payments
• Helps prevent common coin jams and misfeeds that stop cycle starts
• Restores proper coin path when worn, bent, or damaged
• Works with the coin box/coin mechanism to enable accepted-coin operation

• Disconnect power to the appliance and follow lockout/tagout practices before servicing.
• Remove the front access panel or coin box per your machine's service instructions to access the chute.
• Handle the chute and surrounding components carefully to avoid bending or misaligning the coin path.
• After installation, reassemble panels and test coin acceptance with the machine powered and empty.

6 Pin 30 minute

The Timing Cam is an OEM part for Whirlpool dryers. This is part of the dryer's timer mechanism and manages the sequence and duration of drying cycles.

Causes of a bad Timing Cam often stem from mechanical wear and tear over extended use, which can lead to the cam becoming worn down or damaged.

Symptoms of a bad Dryer Timing Cam include:

• The dryer not advancing through its cycles properly, leading to under or over-dried clothes.
• The dryer stopping mid-cycle or failing to start a cycle at all, indicating the cam isn't engaging the timer contacts correctly.
• Unusual noises from the timer area, which may suggest the cam is damaged or misaligned.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

3 pin 60 minute

This 1/4-20 bolt secures appliance panels, brackets, and components to keep assemblies stable and aligned. It's a direct-fit fastener used where a standard 1/4-20 machine screw is required. What it does:

• Fastens panels, mounting brackets, and internal components to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises
• Restores proper alignment for components that won't sit flush or move under load
• Replaces corroded, stripped, or missing hardware that can cause loose assemblies

• One 1/4-20 bolt

• Disconnect power to the appliance before performing any repairs
• Use the correct socket or wrench for a secure fit; avoid rounded fasteners
• Tighten snugly but avoid over-torquing to prevent thread damage or stripped holes
• Ensure mating threads are clean and free of debris

The Coin Box is an OEM replacement part for Whirlpool combo washer/dryers. It provides a storage space for coins used to operate the unit. The coin box slots ensure collected change remains safe and secures payments for laundry cycles.

Causes of a bad coin box can be normal wear from hundreds of deposits, minerals clogging slots, or physical damage compromising security.

Symptoms of a bad coin box include:

• Coins not being accepted or properly collected
• Box distorting shape or developing cracks over time
• Change falling out or going missing

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Size: 10-32
