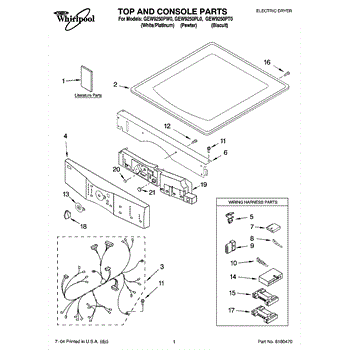

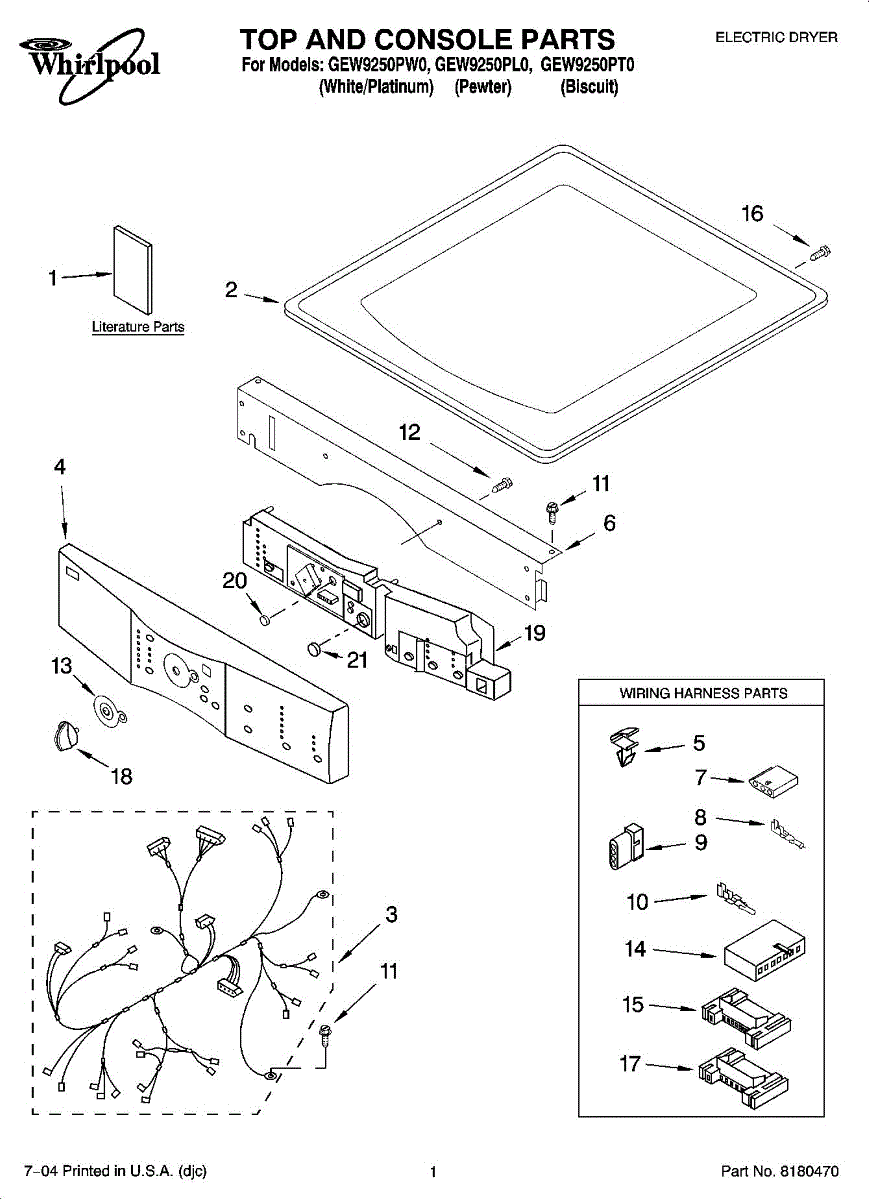

Parts for Whirlpool GEW9250PW0: 01 - Top And Console Parts

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

For mating plug use 691707.

For mating terminal use [AP31136300].

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

For mating terminal use WP94614.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size; 8-18 x 1/2 inch.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Size: 8-18 x 1/2 inch.

5-circuit wire harness connector for dryers. Connects wiring harness to control board. Replace if cracked, damaged, or pins are bent or corroded.

Color: biscuit. Measures about 2 inches in diameter where the handle extends.

Front load washer control knob. Color: Pewter. For gray order WP8181859. For Biscuit order WP8182049. For blue order WP8181881.

The Washer Control Knob is an OEM replacement part for Whirlpool washers.

Causes of malfunctions include stripped interior gears losing secure connection to circuit boards over hundreds of wash cycles. Repeated twisting motions can also crack fragile exterior ring structures.

Symptoms consist of:

• Refusal to rotate between settings
• Missing or faded graphics impairing readability
• Inability to start or stop washer cycles as needed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: Light gray used on platinum models. Measures about 1-2/3 inches in diameter. For blue order WP8181881. For dark gray used on pewter models order WP8182050.

Located behind the dryer's control panel, this board manages all electronic functions and displays cycle information. Replace it if the display is blank, shows error codes, or if the dryer doesn't respond to button presses.

This control board manages the dryer's display panel, buttons, and user settings, translating input into operational commands. Located behind the front control panel, replace it when buttons don't respond, the display malfunctions, or cycle selections don't work properly.

Color: Pewter
