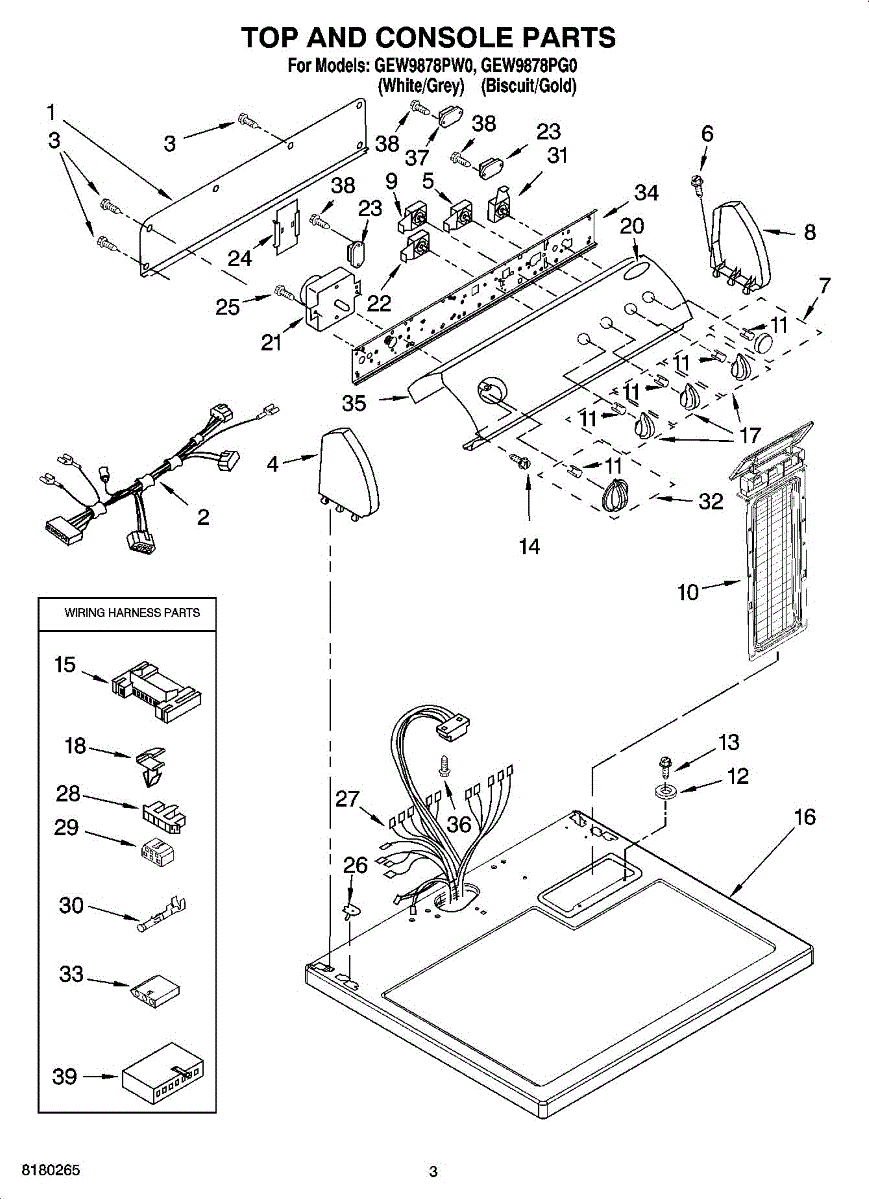

Parts for Whirlpool GEW9878PW0: 02 - Top And Console Parts

Rear panel for dryers. Covers the back of the cabinet. Replace if cracked, damaged, or missing to restore the outer appearance and structure.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

If your dryer won't start without holding the knob, this push-to-start control restores one-press operation. Simple 5-minute repair for gray knobs.

If your dryer won't start without holding the knob, this push-to-start control restores one-press operation. Simple 5-minute repair for gray knobs.

Fix a dryer that won't stop running when the cycle ends. This end of cycle switch signals the timer to stop. Simple DIY repair for most models.

Color: Biscuit. It measures about 9 inches wide by 22 inches high. For white order W11778253.

This lint filter catches lint and debris during the drying cycle to maintain proper airflow through the dryer's exhaust system. A clogged or damaged filter restricts airflow, which forces longer dry times, increases energy costs, and creates a fire hazard from lint buildup in the vent system.

Replace this filter if the pull handle is broken or cracked, the mesh is torn or separating from the frame, rust or metal flakes are visible on the screen, or lint is passing through instead of being trapped. The filter is white, measures approximately 20 inches long (excluding the handle) by 8.5 inches wide, and slides directly into the lint filter slot -- no tools needed, takes under a minute. Clean the filter before every load for best performance.

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

This is a 60 Hz timer that controls the duration of drying cycles in a clothes dryer. It advances through each stage of the cycle and signals the motor and heating components to turn on or off at the appropriate times. Replace this timer if the dryer will not start, the cycle does not advance, the timer knob spins freely without clicking, or if the dryer runs continuously without shutting off.

Dryer won't stay running after releasing start button? A faulty power relay is often the cause. This relay keeps the motor spinning consistently.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

Push-in.

For mating terminal use [AP31136300].

Dryer won't start when button pressed? The push to start switch sends the signal to begin the cycle. Simple 10-minute fix with basic tools.

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

Specs: 10-16 x 1/2 inch.

This relay is used on multiple types of appliances: Ranges, Cooktops, Wall Ovens, Washers and Dryers.

This is a replacement mounting screw used to secure panels and components on compatible Whirlpool appliances, restoring loose or missing fasteners for safe, stable operation. What it does

• Fastens appliance panels, brackets, and small components in place
• Replaces stripped, rusted, or missing screws that cause rattling or loose parts
• Helps restore proper alignment and reduce vibration-related noise
• Matches OEM fit and function for straightforward replacement

• One replacement screw

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or panel damage
• Turn off and unplug the appliance before accessing internal components
