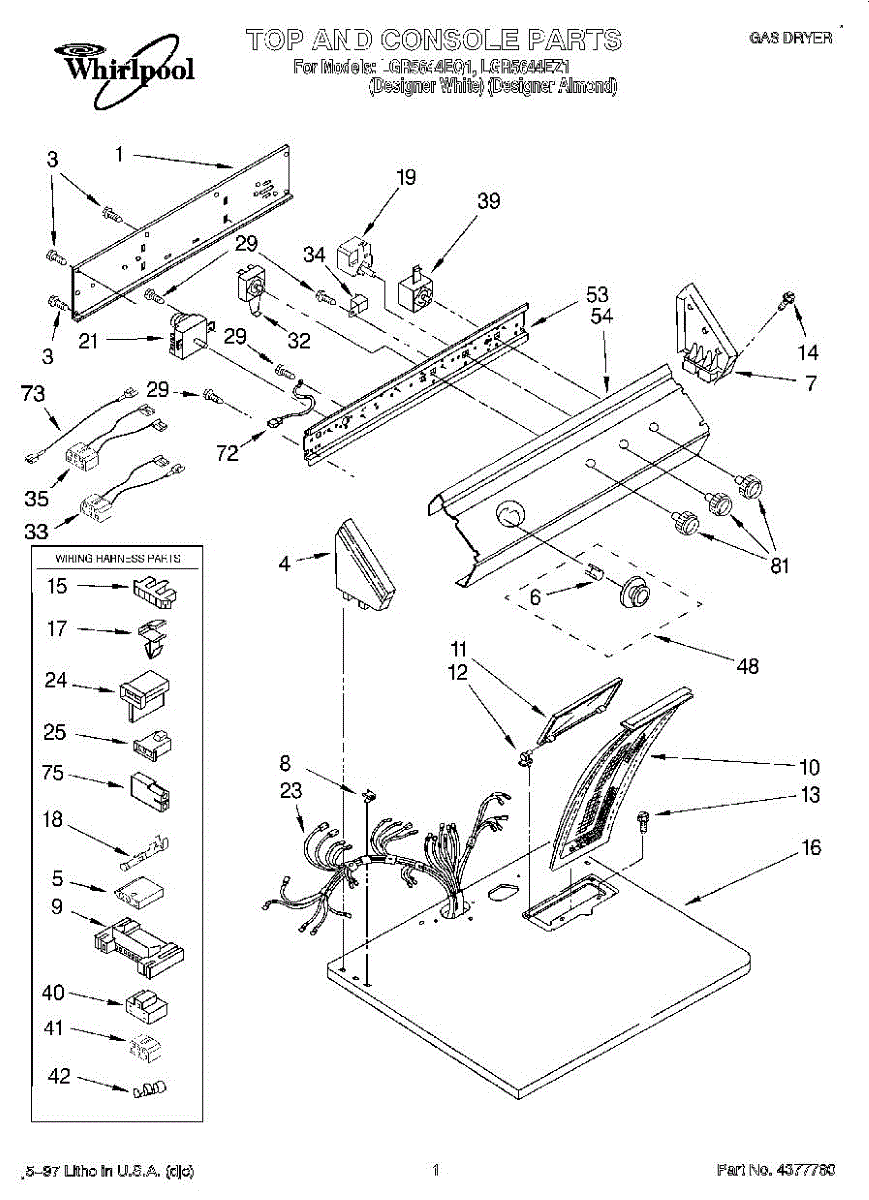

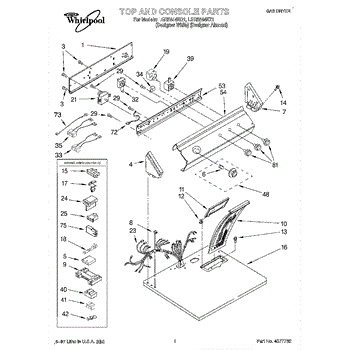

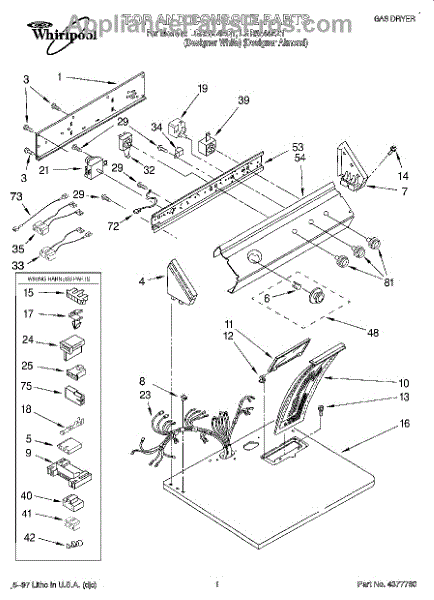

Parts for Whirlpool LGR5644EQ1: 01 - Top And Console, Lit / Optional Parts

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

White. Includes both left and right hand side.

Almond. Includes both left and right hand side.

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Almond. Includes both left and right hand side.

White. Includes both left and right hand side.

Push-in.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

The Lint Screen is an OEM part for Whirlpool dryers. This component is designed to trap lint and debris that are generated during the drying process, preventing them from accumulating in the dryer's vent system. By capturing lint, the screen helps maintain proper airflow, reducing the risk of fire hazards and ensuring that the dryer operates efficiently. This lint screen measures approximately 19 x 7 inches.

Symptoms of a failing Lint Screen include:

• Visible tears or holes in the screen mesh
• The screen not fitting securely in its slot
• Lint buildup in the dryer or vent system
• Clothes taking longer to dry due to restricted airflow
• The screen being difficult to remove or replace

Causes of a bad lint screen can include regular wear and tear from frequent use, physical damage from heavy lint loads or improper handling, and the accumulation of residue from dryer sheets or fabric softeners that can clog the mesh.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Color: Almond

Right handed Hinge

This lint screen lid hinge connects the dryer's lint lid to its mounting point, allowing smooth, aligned opening and secure closing. Replacing a bent or broken hinge restores proper lid operation and helps keep lint contained in the trap.

• Provides the pivot point for the lint screen lid/cover
• Helps the lid sit flush and stay aligned when closed
• Symptoms of a failed hinge can include a loose or misaligned lid, difficulty opening/closing, or squeaking/binding at the hinge
• Replace when the hinge is bent, cracked, or missing

• Disconnect power before servicing; sharp cabinet edges—wear cut-resistant gloves
• Support the lint lid to avoid bending or scratching
• Remove the mounting screws, note the hinge orientation, and transfer the new hinge in the same position
• After reassembly, cycle the lid open/closed to ensure smooth operation before restoring power

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

For mating terminal use [AP31136300].

This rotary on/off switch controls the dryer's Finish Guard (also called Wrinkle Guard/Wrinkle Shield) feature. Replacing it restores proper control of the post-cycle intermittent tumbling that helps reduce wrinkles, preventing the feature from being stuck on or off.

• Provides 2-position on/off selection for the Finish Guard/Wrinkle Guard function
• Failure can cause the feature not to engage or to stay on after the cycle ends
• Knob may feel loose or fail to click when the switch is worn
• Mounts in the control console and interfaces with the external selector knob

• Disconnect power before servicing
• Access through the control console; remove paneling as needed
• Transfer wires one at a time or photograph connections for reference
• Reinstall using the existing knob and mounting hardware

This dryer timer controls the length and sequence of the cycle so your machine advances and shuts off as expected. Replace a worn or noisy timer to restore consistent cycle progress and dependable automatic shutoff.

• Advances the selected cycle and drives the timer dial
• Opens/closes internal contacts to power the motor and heater at the right times
• Ends the cycle and turns the dryer off when complete
• Common failure signs: timer won't advance, runs indefinitely or stops early, or only works on certain settings

• Disconnect power to the dryer before servicing
• Access the control console; note wire locations or take a clear photo
• Transfer wires one at a time to the matching terminals on the new timer, referencing the wiring diagram
• Secure the timer, reassemble the console, reinstall the knob, and test a cycle

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

The Temperature Selector Switch is an OEM replacement part for Whirlpool dryers. This electro-mechanical switch allows consumers to choose between heat settings that adequately dry different fabric types.

Causes of a damaged selector switch can include regular wear from hundreds of cycles over the appliance's lifetime. Mineral deposits accumulating inside linkage mechanics may cause rotational movements to stiffen. The physical impacts of shifting internal contact positions could potentially lead to switching issues as well.

Symptoms of a faulty temperature selector involve:

• Inability to change heat level for desired drying performance
• Temperature remaining stuck on highest or lowest settings
• Lint filter or duct cleaning lights failing to illuminate properly

This OEM replacement is compatible with some Kenmore and KitchenAid electric dryer models too.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This wire harness assembly routes power and control signals between components so the appliance operates reliably. It replaces a damaged or worn harness to restore proper electrical connections and reduce intermittent faults. What it does:

• Provides the main connector wiring between electrical components and the control board.
• Restores lost power or control signals caused by broken, frayed, or burnt wires.
• Helps stop intermittent operation, control errors, or components that won't power on.
• Maintains secure connector fit and correct wire routing to prevent shorting.

• Always disconnect power (unplug or switch off breaker) before starting any repair.
• Handle connectors carefully; release locking tabs to avoid damage.
• Route and secure the harness following original wire paths and clips to prevent chafing.

The Start Switch is an OEM part for Whirlpool dryers. This switch initiates the dryer's cycle, signaling the dryer to begin its drying process. Made with precision to fit specific Whirlpool models, this start switch ensures reliability and performance. Over time, wear and tear or electrical issues can impact the switch's functionality, leading to potential problems with starting the dryer.

Causes of a bad start switch can range from electrical faults within the switch itself, wear and tear from repeated use, or physical damage that affects the switch mechanism.

Symptoms of a bad Start Switch include:

• The dryer not starting when the start button is pressed
• Intermittent operation or failure to maintain the cycle once started
• Unusual noises when the start button is pressed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This connector buzzer wire harness links the appliance control to the buzzer/alert so the unit can emit audible tones for cycle completion and error warnings. Replaces a damaged or corroded buzzer connector to restore alert sounds. What it does:

• Provides the electrical connection between the control board and the buzzer/alert assembly.
• Restores audible beeps or tones when the original connector is loose, broken, or corroded.
• Helps prevent intermittent or no-sound conditions caused by poor connector contact.
• Fits into the existing harness and plugs into the buzzer/board mating connector.

• One connector buzzer wire harness (1 piece).

• Disconnect power to the appliance before inspecting or replacing the connector.
• Unplug the old connector from the buzzer/control; note orientation and routing before removing.
• Plug the replacement connector into the matching buzzer/control socket until it snaps into place.

This replacement clamp secures flexible hoses and lines to prevent leaks and keep connections tight. It restores a secure seal so appliances move water or air without escaping at the joint. What it does:

• Secures inlet, drain or water lines to fittings and housings
• Helps stop leaks from loose or worn hose connections
• Keeps hoses from slipping off during operation or vibration
• Commonly replaced when clamps are corroded, broken, or no longer hold tension

• Inspect hose and fitting for damage before installing the new clamp
• Position clamp over the hose barb and tighten evenly until snug; avoid over-tightening
• Use appropriate tools (pliers or clamp driver) and follow appliance safety procedures
• Disconnect power and shut off water supply when working on water lines

This replacement timer knob and dial restores easy control of your appliance's timer and settings while matching biscotti/biscuit finishes. It provides a simple, direct way to replace a worn, broken or missing timer control. What it does:

• Replaces a cracked, stripped or missing timer knob and the attached dial for clear settings
• Restores positive engagement so the timer turns and clicks into set positions
• Improves legibility of timer markings for accurate selection
• Helps stop slipping or intermittent timer contacts caused by a damaged knob

• Disconnect power to the appliance before starting any repair
• Remove the old knob by pulling straight off the control shaft; inspect shaft splines for damage
• Align the dial and push the new knob onto the control shaft until fully seated—do not force or hammer

This replacement timer knob lets you set and turn the dryer's cycle timer smoothly and reliably, restoring easy selection of drying times and cycle settings. Designed as the correct white knob assembly for compatible Whirlpool dryers. What it does:

• Fits onto the dryer timer shaft so you can rotate and select drying cycles and times.
• Replaces a cracked, stripped, loose or missing timer knob that prevents proper control.
• Provides a secure, tactile grip for accurate setting changes.
• Matches the original White finish for a clean, factory look.

• Disconnect the dryer from power before servicing.
• Most knobs pull straight off the timer shaft; align splines and press the replacement fully into place.
• Inspect the shaft and any retained plastic insert; transfer insert if the replacement does not include it.
• If knob is difficult to remove, use steady, even force or a soft-padded puller to avoid damaging the control panel.

Almond

White

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
