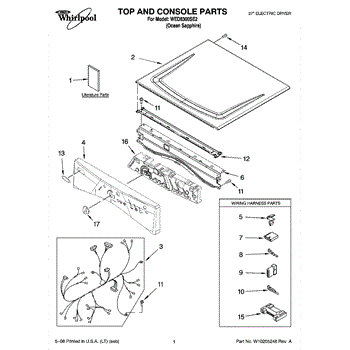

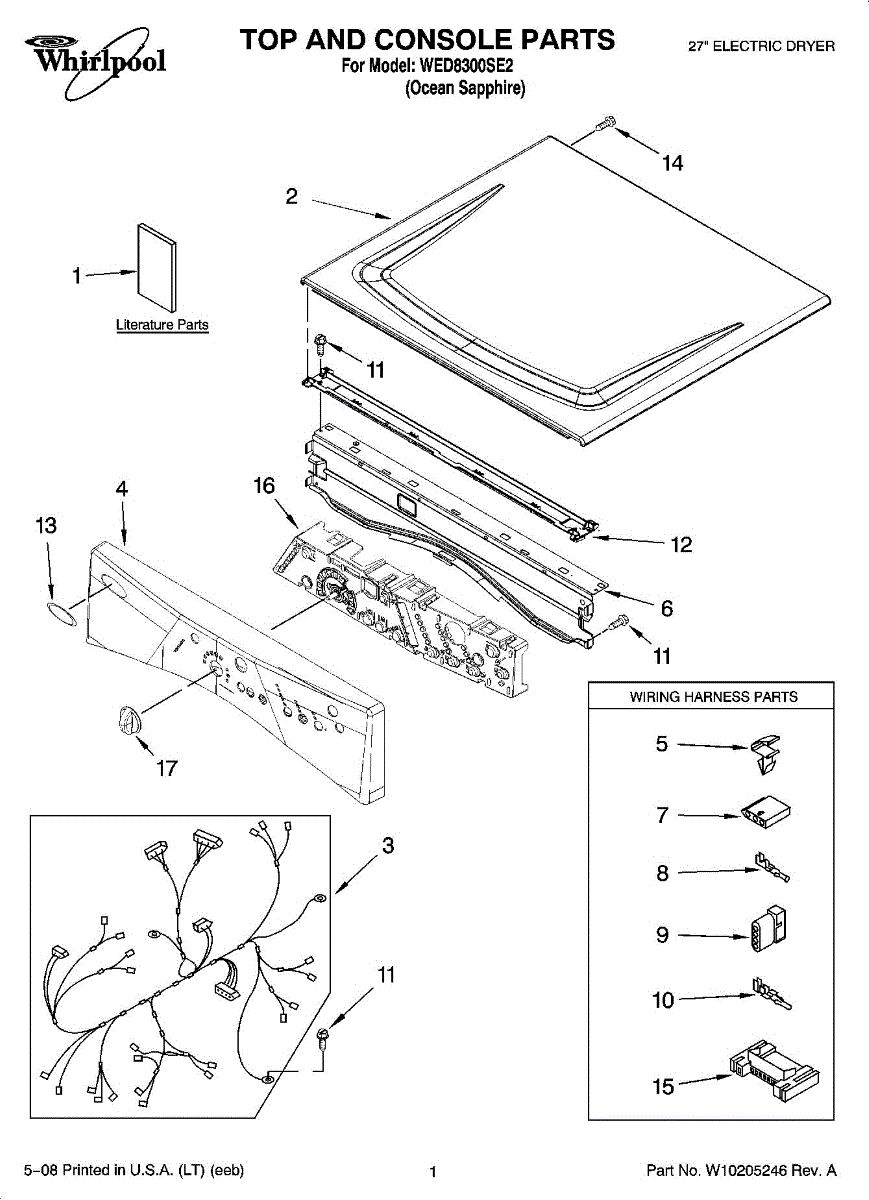

Parts for Whirlpool WED8300SE2: 01 - Top And Console Parts

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

For mating plug use 691707.

For mating terminal use [AP31136300].

For mating terminal use WP94614.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This electronic control board is the user interface assembly that controls dryer cycles, settings and display functions, restoring responsive button/touchpad control and cycle selection. What it does:

• Manages dryer control logic and timer functions so cycles start, stop and advance correctly
• Processes user input from the touchpad/buttons and updates the display/status lights
• Communicates with other dryer modules to run selected cycles and heating commands
• Commonly replaced when controls are unresponsive, display is blank/erratic, or cycles won't start

• One electronic control board / user interface assembly

• Disconnect power to the dryer before servicing to avoid shock hazard
• Handle the board carefully and avoid static discharge; use grounding or an anti-static wrist strap if available
• Some disassembly (top/front/control panel removal) is required; follow the dryer's service manual for detailed steps
• Test function after reconnection before fully reassembling the cabinet
