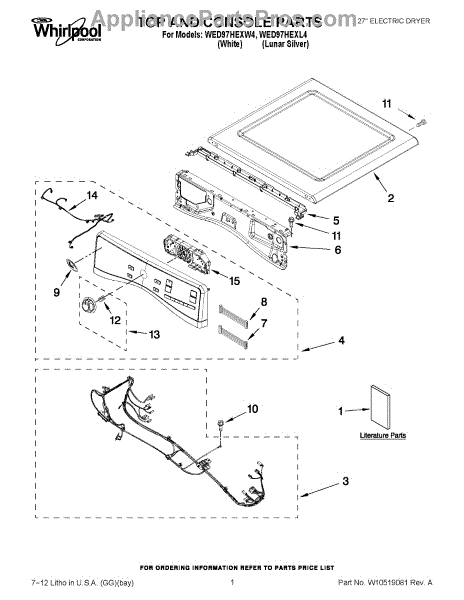

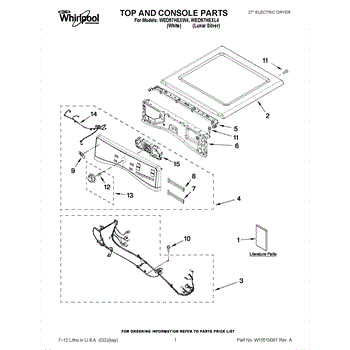

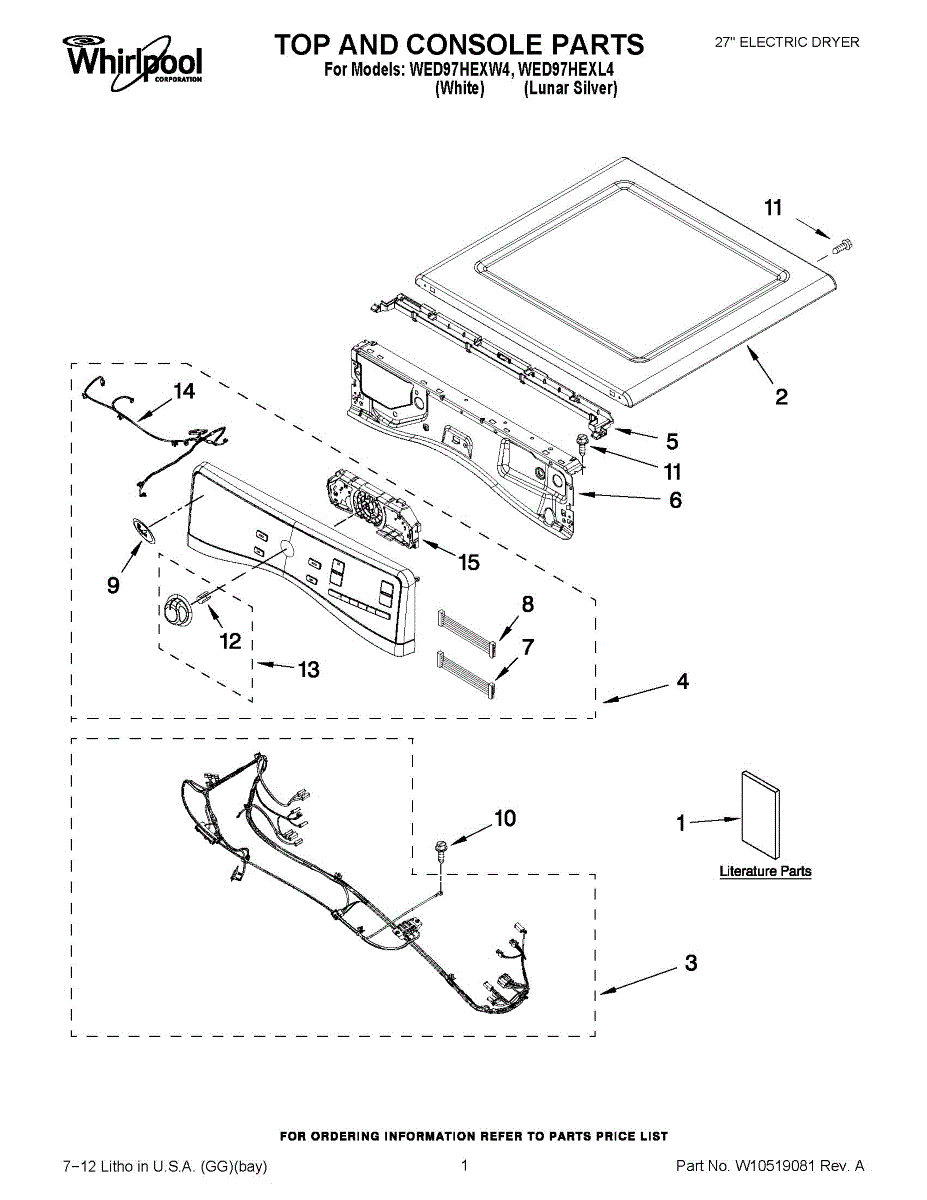

Parts for Whirlpool WED97HEXL4: 01 - Top And Console Parts

This top panel is the upper cover of your dryer's cabinet. Replace a dented, rusted, or warped panel to restore a secure, flush fit and the clean, finished look of your machine.

• Forms the dryer's upper cabinet surface and covers internal components
• Provides proper mounting/alignment for the control console and top hardware
• Helps maintain cabinet rigidity and a solid, secure fit
• Common signs it's needed: visible dents/bends or rust, top won't sit flush or stay secured, gaps or misalignment near the console

• Disconnect power; shut off gas supply for gas models
• Wear cut-resistant gloves—cabinet edges can be sharp
• Remove fasteners securing the top, lift off, and transfer any clips/insulation from the original panel
• Align the new panel and tighten fasteners evenly to ensure a flush, secure fit

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob is an OEM part for Whirlpool washers and dryers. This control knob allows users to select various settings and cycles for the appliance, providing precise control over washing and drying operations.

Causes of a bad knob can include regular wear and tear, accidental impacts, or exposure to moisture and heat.

Symptoms of a bad knob include:

• Knob not turning smoothly or becoming stuck
• Cracks or breaks in the knob
• The knob slipping or not staying securely on the control shaft
• Difficulty selecting or changing cycles

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
