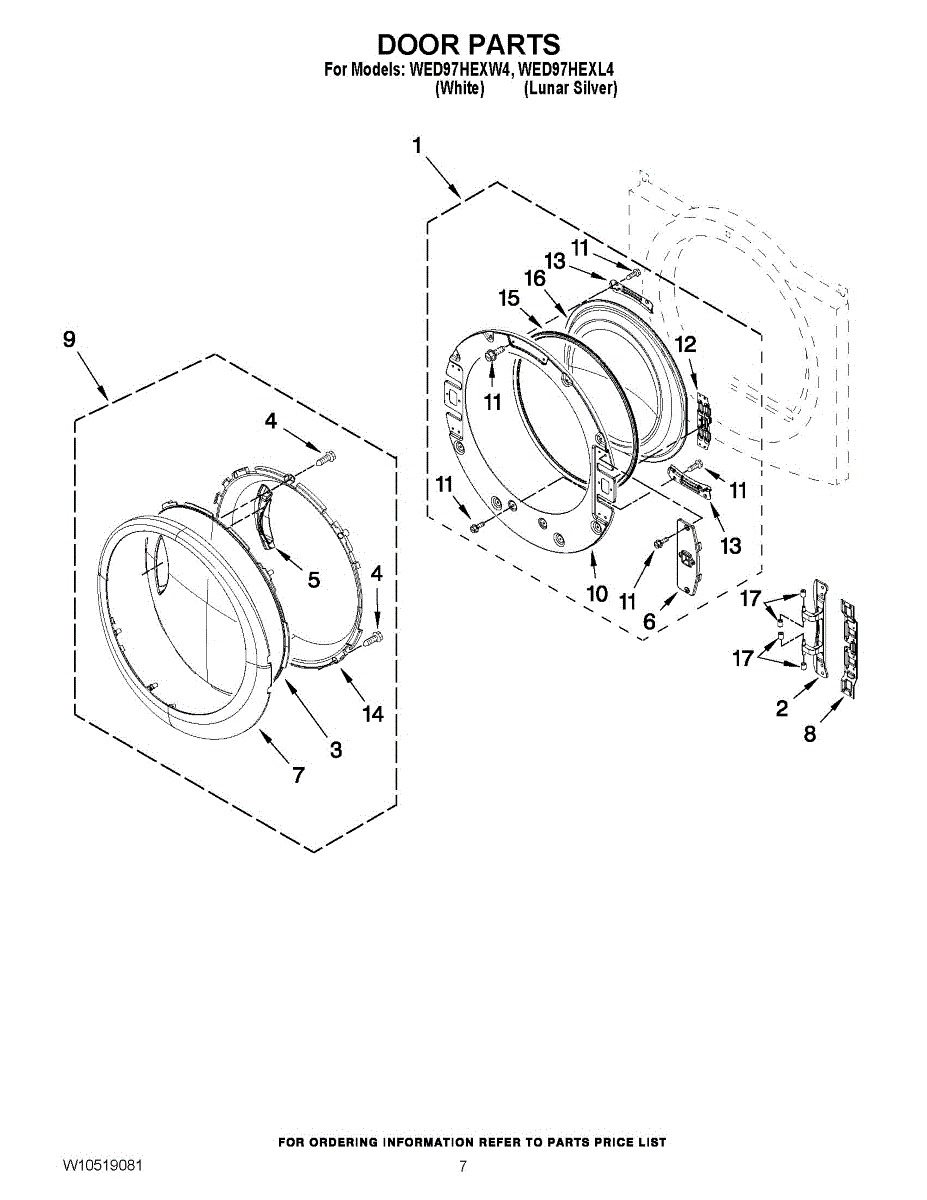

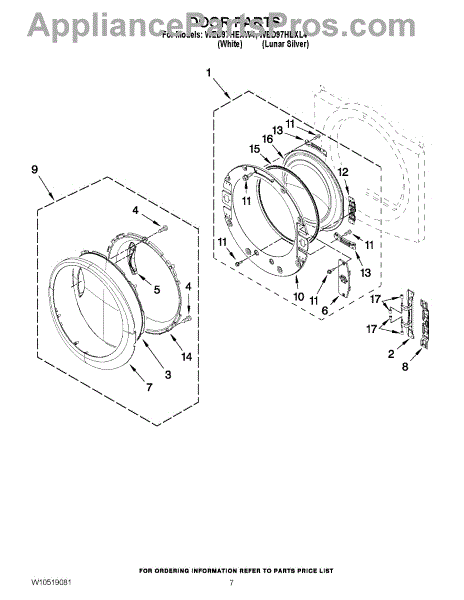

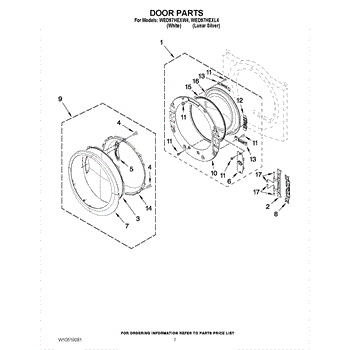

Parts for Whirlpool WED97HEXL4: 04 - Door Parts

The Washer/Dryer Door Hinge is an OEM replacement part for Whirlpool washer and dryer units. It is a component that allows the appliance door to open and close smoothly while providing a secure attachment point to the main cabinet.

Symptoms of a bad washer/dryer door hinge:

• Difficulty in opening or closing the door
• Door sagging or not aligning correctly when closed
• Excessive noise or rattling when the door is opened or closed
• Water leaks or air leaks around the door area

Causes of a bad door hinge can include mechanical wear and tear over time, physical damage due to impact or mishandling, or improper installation or alignment of the hinge components.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer and dryer models.

This factory fastener secures appliance components such as panels, brackets, and handles. Replacing a missing or damaged screw restores a tight fit, reduces rattles, and helps keep parts aligned for smooth, reliable operation.

• Secures components to the appliance frame or assemblies
• Helps maintain alignment and structural stability
• Replaces missing, rusted, or stripped hardware
• Common symptoms include loose/wobbly handles or panels, rattling/vibration noises, or a visibly missing screw

• Disconnect power before servicing
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten; snug until secure
• Replace any that are corroded or stripped for an even hold

Replacement cover that protects and conceals internal appliance components by closing the housing. Keeps wiring and moving parts shielded from debris and accidental contact, restoring a finished appearance and safe operation. What it does

• Covers and protects internal components from dust, lint and accidental contact.
• Restores the appliance's cabinet/housing integrity after a cracked or missing panel.
• Helps stop rattling or vibration caused by loose or damaged covers.
• Use when you see visible cracks, broken tabs, missing fasteners, or an exposed area.

• Disconnect power (unplug or switch off breaker) before any service.
• Typically secures with simple fasteners; keep all clips and screws and replace any broken tabs.
• Handle edges carefully; use appropriate tools and avoid forcing tabs to prevent breakage.

This hinge retainer plate secures the appliance door hinge to the cabinet or door, keeping alignment and smooth operation. Replace a bent, stripped, or missing plate to stop hinge wobble and help the door close and seal properly.

• Anchors the door hinge and distributes load to prevent shifting
• Maintains proper door alignment and gap for smooth opening/closing
• Helps prevent door sagging, rubbing, or poor gasket sealing
• Typical symptoms include a loose hinge, wobbly door, or door not closing flush

• Disconnect power and support the door before removing any hinge fasteners
• Mark hinge locations to preserve alignment during reassembly
• Install the plate in the correct orientation; transfer any spacers/shims in original order
• Tighten fasteners evenly, then verify door alignment and gasket seal

This genuine mounting screw secures panels and components so assemblies stay aligned and rattle-free. Designed to replace worn or missing fasteners and restore proper fit and function. What it does:

• Secures panels, brackets or trim to prevent movement and vibration
• Restores proper alignment of assemblies that feel loose or shift
• Helps eliminate rattling, squeaks, or parts that fall away during use
• Matches OEM thread and head type for correct fit

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten which can strip threads or crack plastic
• Replace any additional damaged or missing fasteners for best results
• Disconnect power or follow appliance-specific safety steps before working near wiring or energized components

This door catch assembly secures the door by engaging the mating latch or strike, keeping it firmly closed for proper operation and safety. Replace a worn or broken catch to restore reliable door closure and consistent performance. What it does

• Engages the door latch/strike to hold the door closed during use
• Helps maintain proper door alignment and contact with seals/interlocks
• Restores a positive latch feel and consistent closure
• Common signs of wear: door won't latch or pops open, must be slammed to close, visible damage to catch tabs

• One door catch assembly

• Unplug the appliance or switch off power at the breaker before servicing; for gas appliances, shut off the gas supply
• Open the door, access the catch at the cabinet/frame, and remove retaining screws or clips
• Transfer any reusable hardware from the original part and install the new catch
• Verify smooth latch engagement and door alignment before restoring power

This retainer is a small mounting clip that secures internal appliance components, keeping parts aligned and preventing vibration or rattling. Replacing a worn or broken retainer restores proper fit and helps reduce noise and movement. What it does:

• Secures a specific internal component to its mounting point to maintain proper alignment
• Keeps parts from shifting or vibrating during operation
• Helps prevent intermittent noise caused by loose fittings
• Supports reliable operation by holding components in the correct position

• One retainer clip

• Disconnect power to the appliance before beginning any work
• Inspect the surrounding mounting area and matching mating tabs for damage before installing
• Install the retainer by aligning it to the mating slots and snapping or fastening it into place; use gentle pressure to avoid breakage
• If other mounting hardware or adjacent parts are damaged, replace them as well for a secure fit

The Seal is an OEM replacement part for Whirlpool dryers. It creates a tight seal between the dryer door and the drum, preventing heat and moisture from escaping during the drying process. It helps maintain the proper temperature inside the dryer, allowing your clothes to dry quickly and evenly.

Symptoms of a faulty door seal include:

• Heat escaping from around the dryer door
• Excessive moisture or lint buildup
• Extended drying times

A bad door seal can occur due to regular use, wear and tear, or accidental damage. If you notice issues such as heat escaping from around the dryer door, excessive moisture or lint buildup, or clothes taking longer to dry than usual, it may be time to replace the door seal.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Window is an OEM part for Whirlpool dryers. It forms the inner layer of the dryer door, providing insulation and protection to the contents inside the dryer drum. This inner window ensures a clear view of the drying process while preventing heat loss and potential damage to the outer door.

A bad door inner window can occur due to accidental impact, wear and tear, or improper handling. If you notice symptoms such as cracks, fogging, or damage to the inner window, it may be time to replace this part.

Symptoms of a bad door inner window include:

• Visible cracks or damage
• Fogging or cloudiness
• Compromised insulation

Restore your Whirlpool dryer by replacing the faulty or damaged door inner window with this genuine OEM part.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Hinge Pin Bushing is an OEM part designed for Whirlpool washing machines that is responsible for providing a pivot point for the hinge pin and ensuring the door opens and closes smoothly and securely. Over time, this bushing can wear out or become damaged, leading to issues with the door's alignment and opening.

Symptoms of a bad Hinge Pin Bushing include:

• Difficulty in opening or closing the door
• Noise when the door is moved
• Loose or wobbly door
• The door not staying closed

Causes of a bad hinge pin bushing can range from normal wear and tear to excessive force used on the door or lid.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
