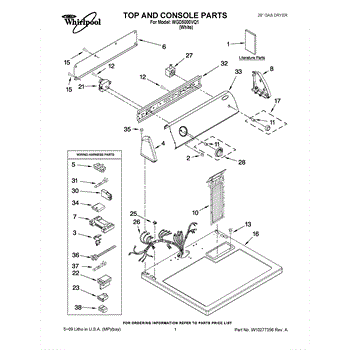

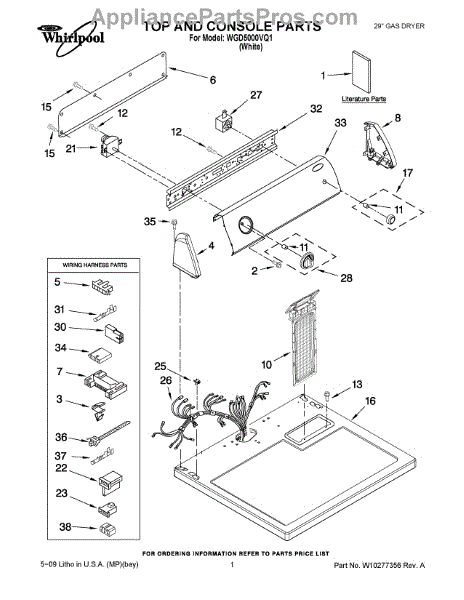

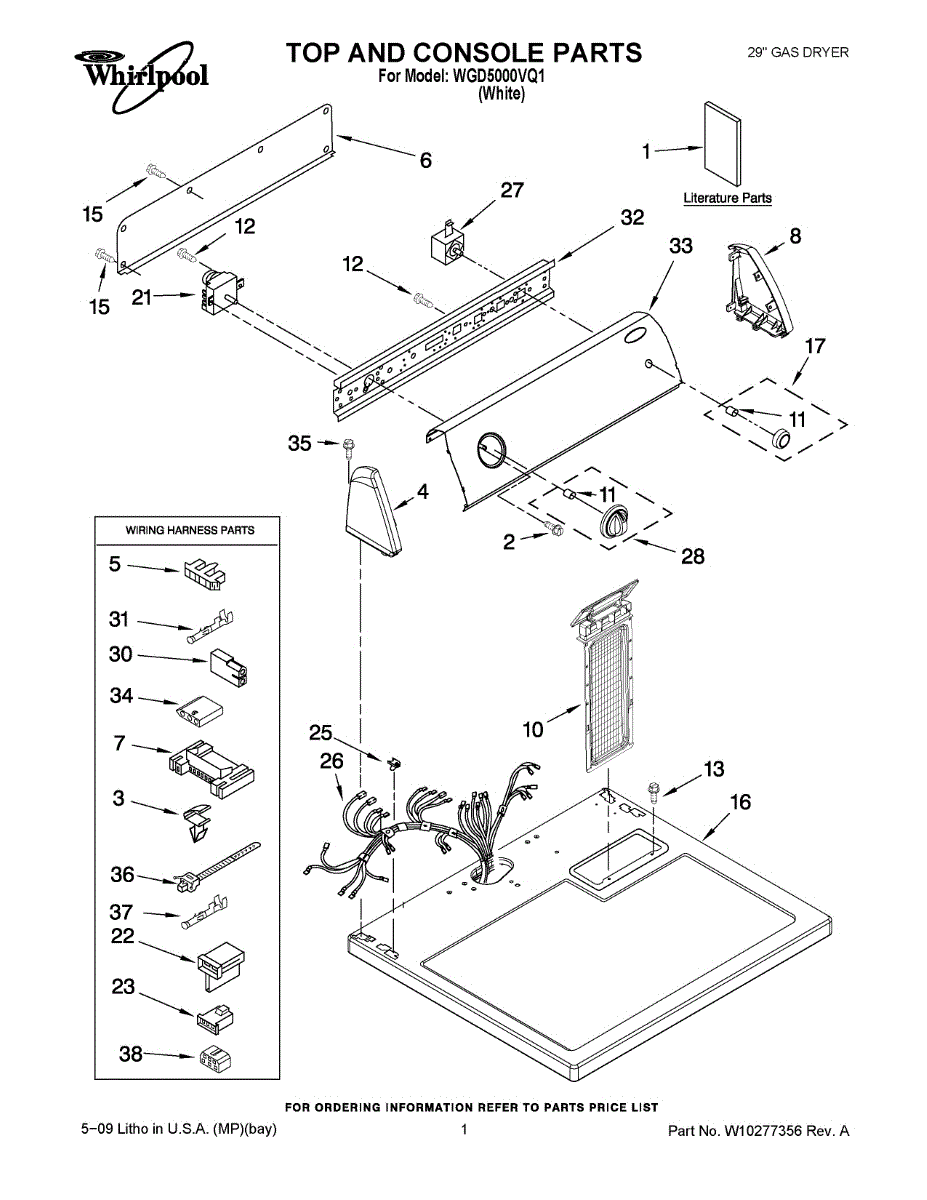

Parts for Whirlpool WGD5000VQ1: 01 - Top And Console Parts

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

Rear panel for dryers. Covers the back of the cabinet. Replace if cracked, damaged, or missing to restore the outer appearance and structure.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Dryer lint screen captures lint and debris to protect the blower system. Replace when torn, damaged, or handle breaks. Confirm fit by model number.

Secures control knobs to the panel on washers and dryers. Replace if the clip is broken, missing, or worn, causing knobs to fall off or sit loose.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Control panel knob for dryers. Installs on the front panel to select cycle settings. Replace if cracked, broken, or missing to restore control functionality.

This is the mechanical cycle timer that coordinates your washer's operations. A worn or failing timer can keep the cycle from advancing, stop mid-way, or run indefinitely. Replacing it restores consistent, predictable cycle control. What it does:

• Directs power in sequence to components for fill, wash/agitate, drain, and spin
• Advances the internal cam to move the knob through each programmed step
• Helps ensure proper cycle durations and transitions
• Common signs of failure: cycle won't advance, stalls on one step, runs too long, or intermittent operation

• 1 timer assembly

• Disconnect power before servicing; verify the tub is empty
• Access the control console; remove the knob/dial and mounting hardware to free the old timer
• Move wire connectors one at a time to the new timer to maintain correct placement
• Secure the timer, reinstall the dial/knob, restore power, and run a test cycle

2-position wire connector for dryers. Replaces damaged, melted, or corroded connectors in electrical wiring harnesses. Essential for restoring connections.

Push-in.

Replacement wire harness for dryers. Connects electrical components inside the control panel. Replace if wires are frayed, damaged, or connections are loose.

Dryer won't start when button pressed? The push to start switch sends the signal to begin the cycle. Simple 10-minute fix with basic tools.

This timer knob assembly attaches to the timer shaft and lets you accurately select cycle settings. Replace a cracked, missing, or slipping knob to restore smooth, reliable control of your appliance's timer.

• Interfaces with the timer's keyed shaft to select cycle and time settings
• Provides a solid grip to turn the timer without slipping
• Typical symptoms: knob cracked, falls off, spins freely, or won't reliably turn the timer
• Helps restore proper user control without affecting internal timer function

• Disconnect power before servicing
• Pull the old knob straight off the timer shaft; if your model uses a retaining clip or dial skirt, remove carefully for reuse
• Align the flat/keyed opening with the shaft and press on by hand until fully seated
• Rotate through settings to engage

For mating terminal use [AP31136300].

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

Wire harness connector that links the control to the buzzer for audible alerts. Replace if damaged, corroded, or missing to restore cycle completion tones.
