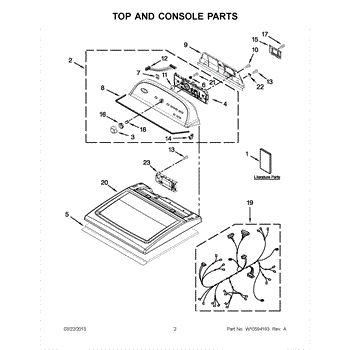

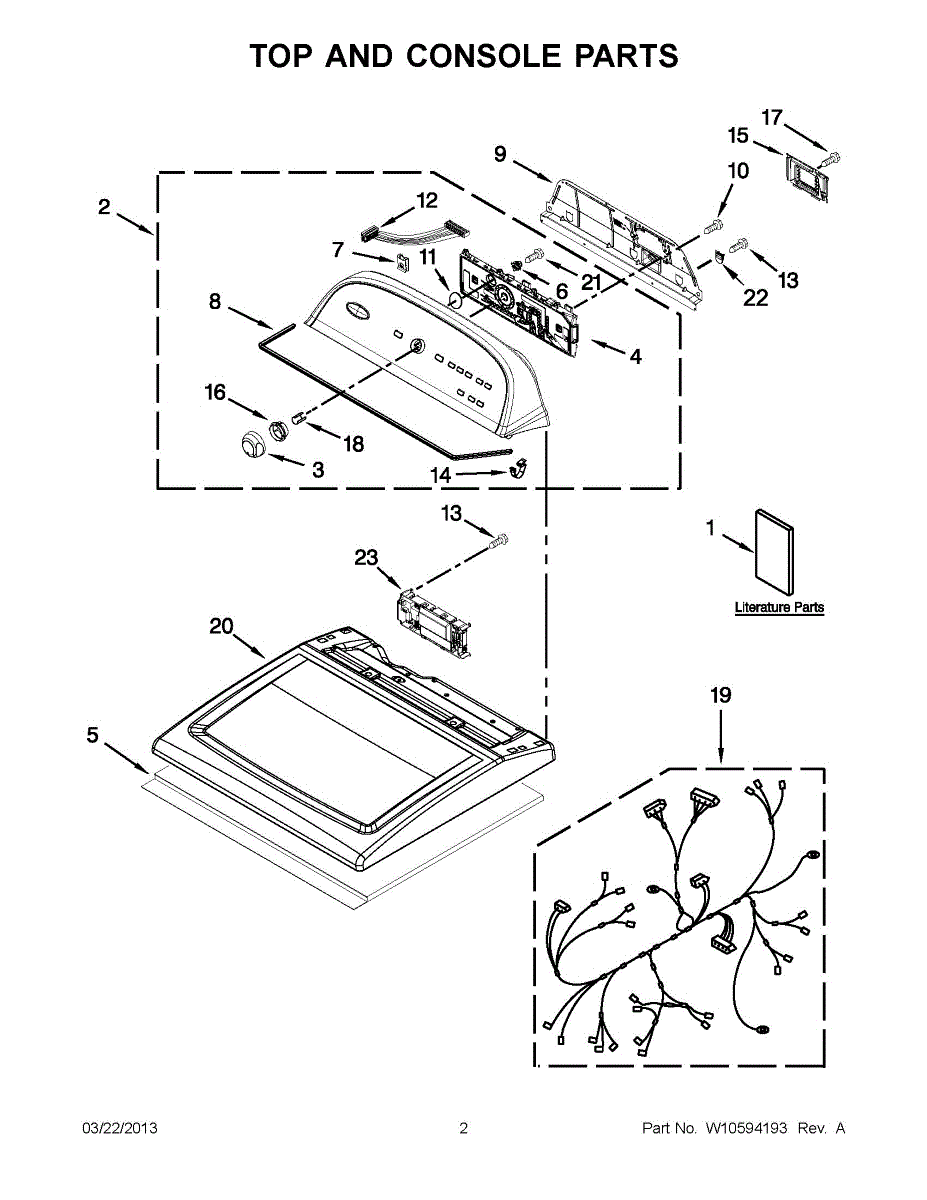

Parts for Whirlpool WGD5500XW2: 01 - Top And Console Parts

This electronic control board is the dryer's user interface assembly that receives touch/knob inputs and manages cycle functions, making controls responsive and cycles run correctly. Replace a faulty board to restore proper dryer control operation. What it does:

• Interprets user inputs and sends signals to the dryer's main controls and components
• Controls cycle selection, timing, and display indicators
• Can cause unresponsive buttons, blank or erratic displays, or incorrect cycles when failing
• Helps stop intermittent or no-start control issues tied to the interface electronics

• One electronic control board (user interface assembly)

• Disconnect power before service to avoid shock—this part requires access behind the control panel
• Handle the board by the edges and avoid contact with connector pins or circuitry
• Ensure connectors are fully seated and routing prevents wire pinching when reassembling

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a dryer control panel. It Is located on the top middle of the appliance. The control panel is used as a way to manage all dryer operations, such as setting the correct temperature and ensuring the drying time is appropriate. The control panel has a number of small parts that can fail and cause problems. When this occurs, it may prevent the dryer from starting. It can also cause the dryer not to fill, drain, or spin. A screwdriver and a nut driver will be needed to replace the control panel. Unplug the dryer from the power outlet before starting. It should also be pulled away from the wall. Find the screws that hold the top panel and remove them. Pull on the panel to release the console tabs before removing the top panel completely. Take a photo of the wiring connections as a reference for installing the new control panel. Disconnect them from the old panel and remove it from the dryer before installing the new component.This control panel is an authentic OEM replacement part designed for use with Whirlpool dryers. It is directly sourced from the manufacturer and sold as an individual item.
