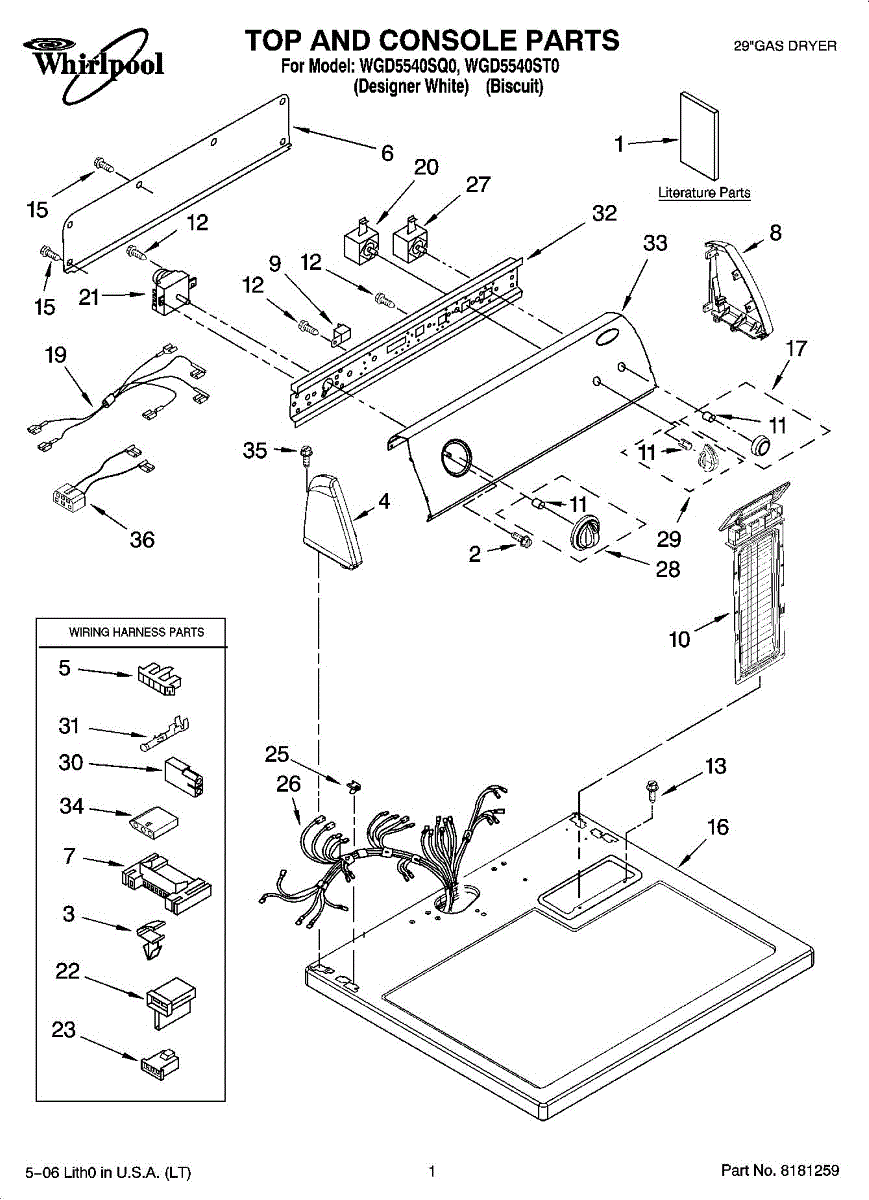

Parts for Whirlpool WGD5540ST0: 01 - Top And Console Parts

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

Rear panel for dryers. Covers the back of the cabinet. Replace if cracked, damaged, or missing to restore the outer appearance and structure.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

Color: Biscuit. It measures about 9 inches wide by 22 inches high. For white order W11778253.

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

Secures control knobs to the panel on washers and dryers. Replace if the clip is broken, missing, or worn, causing knobs to fall off or sit loose.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Round control knob for dryer control panels. Replaces worn, cracked, or missing knobs on selector shafts. Restores secure grip for adjusting settings.

Replacement control knob for dryer selector dial. Installs on the control panel to turn and set cycles. Needed when original knob is cracked, broken, loose, or missing.

Dryer not heating or stuck on one temperature? This temperature selector switch controls heat settings. Moderate DIY repair with video guide available.

Fix a dryer that won't advance cycles, won't shut off, or has cycle selection problems. This timer assembly typically takes 15-20 minutes to replace.

2-position wire connector for dryers. Replaces damaged, melted, or corroded connectors in electrical wiring harnesses. Essential for restoring connections.

Push-in.

Internal wiring harness for dryers. Connects electrical components inside the dryer cabinet. Replace if wires are frayed, damaged, or connectors broken.

Dryer won't start when you press the button? A faulty start switch is often the cause. This switch initiates the drying cycle. DIY-friendly repair.

This timer knob assembly attaches to the timer shaft and lets you accurately select cycle settings. Replace a cracked, missing, or slipping knob to restore smooth, reliable control of your appliance's timer.

• Interfaces with the timer's keyed shaft to select cycle and time settings
• Provides a solid grip to turn the timer without slipping
• Typical symptoms: knob cracked, falls off, spins freely, or won't reliably turn the timer
• Helps restore proper user control without affecting internal timer function

• Disconnect power before servicing
• Pull the old knob straight off the timer shaft; if your model uses a retaining clip or dial skirt, remove carefully for reuse
• Align the flat/keyed opening with the shaft and press on by hand until fully seated
• Rotate through settings to engage

Color: white. Measures about 2 inches in diameter.

For mating terminal use [AP31136300].

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

Wire harness assembly that routes power and control signals between dryer components. Replace if wires are damaged, worn, broken, or connections are loose.
