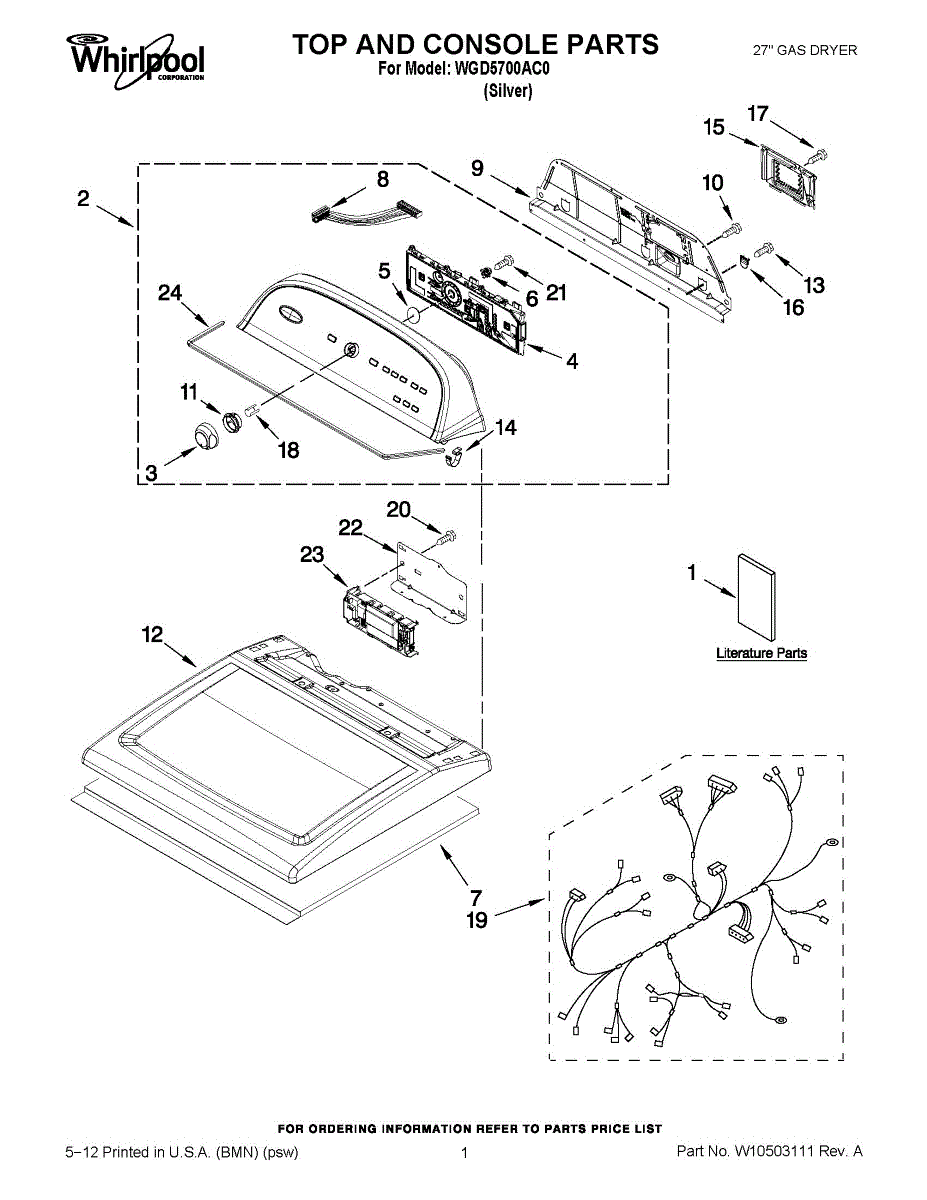

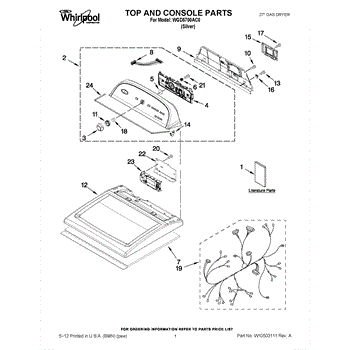

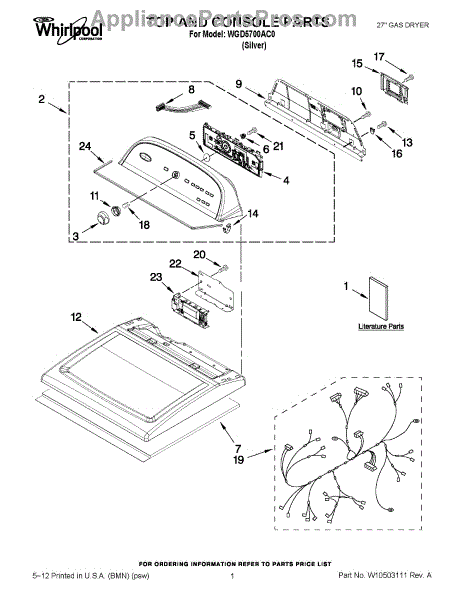

Parts for Whirlpool WGD5700AC0: 01 - Top And Console Parts

The Knob is an OEM part for Whirlpool washers and dryers. This control knob allows users to select various settings and cycles for the appliance, providing precise control over washing and drying operations.

Causes of a bad knob can include regular wear and tear, accidental impacts, or exposure to moisture and heat.

Symptoms of a bad knob include:

• Knob not turning smoothly or becoming stuck
• Cracks or breaks in the knob
• The knob slipping or not staying securely on the control shaft
• Difficulty selecting or changing cycles

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This replacement top panel restores the appliance's outer cabinet for a clean appearance and to protect internal components from dust and debris. It fits above the main cabinet and provides the finished surface beneath controls. What it does:

• Covers and protects internal parts and wiring from exposure and contaminants
• Restores a smooth, finished surface for the appliance cabinet
• Helps maintain proper spacing and alignment for control components
• Replaces a bent, dented, or corroded top that can trap dirt or allow moisture in

• Disconnect power to the appliance before beginning any work.
• Installation may require removing the control console or back panel to access mounting screws.
• Handle edges carefully — replacement panels can have sharp edges.
• Follow the manufacturer's service instructions for fastening sequence and torque.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electronic control board replaces the main CCU module that manages cycle selection, timing and user interface functions so your appliance responds correctly to inputs and runs designed cycles. What it does:

• Controls cycle sequencing, timers and electronic features for the console
• Interprets user commands from buttons/knobs and communicates with other modules
• Can resolve symptoms like unresponsive controls, incorrect cycle behavior or error codes related to the control board
• Works as the central logic module for electronic-only fault conditions

• Disconnect power before servicing to avoid shock or damage to electronics
• Handle the board by edges; avoid touching components and use an anti-static wrist strap if available
• Verify connectors and harness orientation during reinstallation; do not force connectors
• If errors persist after replacement, test sensors and wiring harnesses before replacing again
