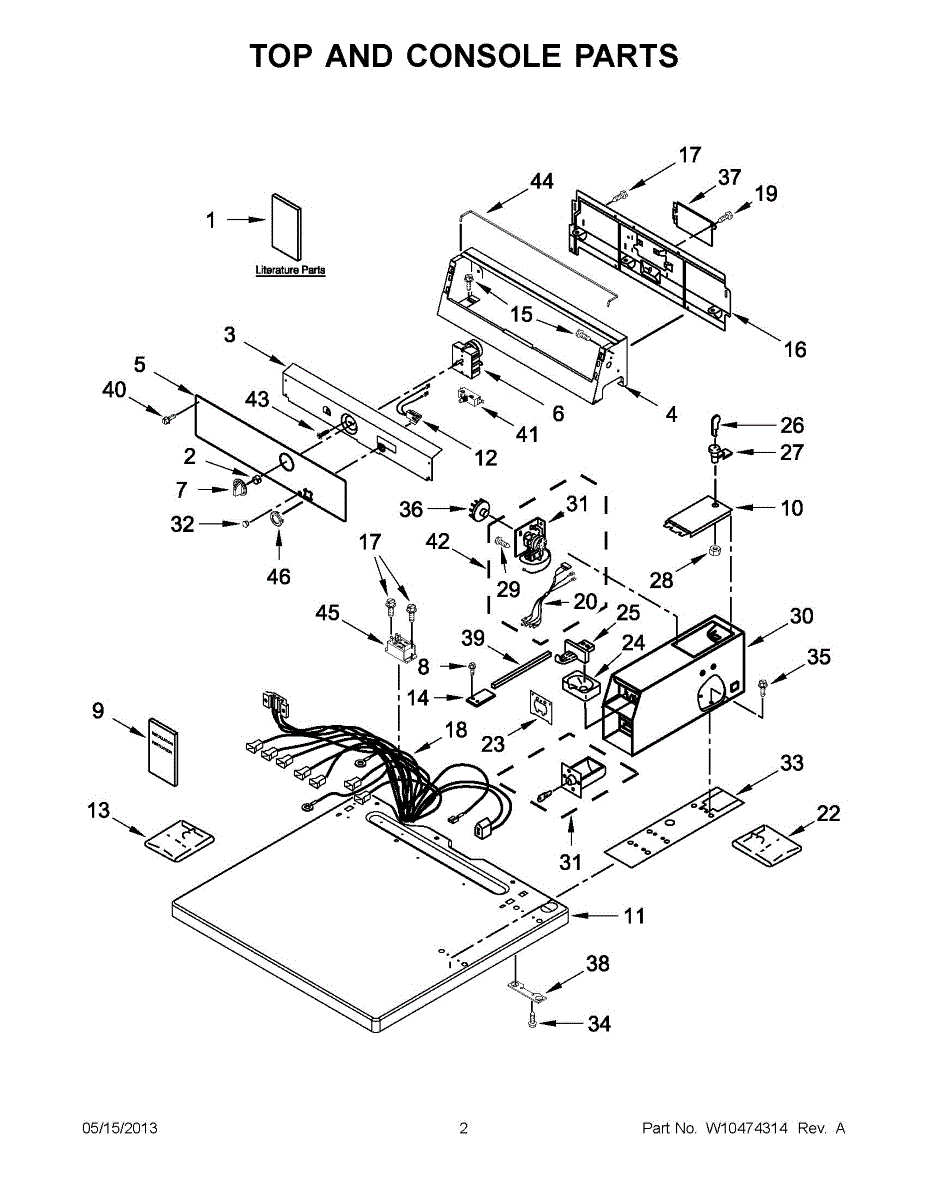

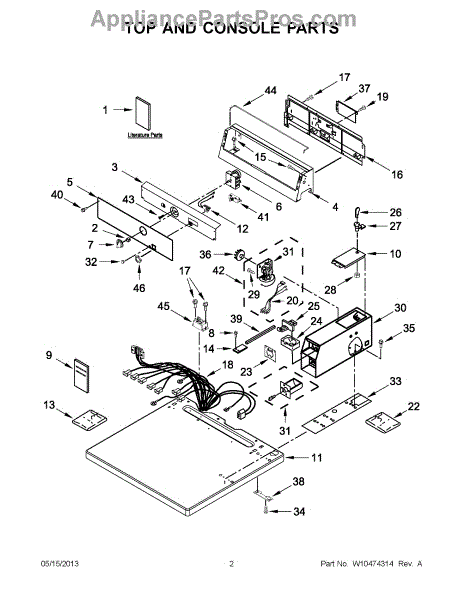

Parts for Whirlpool XCGM2763BQ0: 01 - Top And Console Parts

This is the front-facing control panel (console assembly) for a dryer, in white. It houses the buttons, knobs, and display used to select cycles, temperatures, and other dryer settings. Replace this panel if the buttons are unresponsive, the panel is cracked, or if cycle selections no longer register properly.

Dryer won't advance through cycles or stops mid-cycle? The cycle switch controls the timer progression. Moderate DIY repair, 30-45 minutes.

Replacement rotary control knob for dryer control panels. Installs on control shaft for cycle and heat selection. Needed when original is cracked or missing.

Size: 10-32

This is a 230-volt indicator lamp used in a clothes dryer to signal when a cycle is running or a specific setting is selected. It mounts on the control panel and illuminates to provide visual feedback during operation. Replace this lamp if the indicator light on your dryer control panel no longer lights up even though the dryer is functioning normally.

Kit includes six stickers: $0.75, $1.00, $1.25, $1.50, $1.75, $2.00.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Coin chute not accepting quarters or jamming? This vertical coin entry assembly guides coins into your commercial dryer mechanism for reliable payment starts.

Guides dryer airflow from drum to lint screen housing. Replace if cracked, broken, or missing to restore proper air path and contain lint in ductwork.

Channels coins from the coin slide into the collection box on coin-operated laundry equipment. Replace if cracked, damaged, or missing to restore flow.

The Coin Slide is an OEM replacement part for Whirlpool washers. It is vertical 8 coin chute for payment in commercial or coin-operated laundry washers. It provides a secure and reliable mechanism for accepting coins, ensuring smooth operation and hassle-free lock box transactions.

Symptoms of a bad coin slide include:

• Coins getting stuck or not sliding smoothly
• Failure to register or accept coins
• Inconsistent or unreliable coin acceptance

A faulty coin slide can occur due to regular use, jammed coins, or damage to the internal components. If you experience issues such as coins getting stuck or not registering, it may be time to replace the coin slide.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This replacement key restores operation of a factory-installed lock on select appliances, letting you securely lock or unlock a door, lid, or compartment when the original key is lost or damaged. What it does:

• Operates the keyed lock cylinder to lock and unlock the appliance compartment
• Restores access when the original key is missing, bent, or broken
• Helps keep contents secure by re-enabling the lock function

• Insert fully and turn gently—do not force the cylinder
• If the lock is stiff, clean the keyway; use only manufacturer-approved lubricants if needed
• Disconnect power before any related service; keep the key out of children's reach

Washer won't start or door won't unlock? This lock cam drives the door lock mechanism to secure and release the door for proper cycle operation.

Cage nut clips into panel openings to create a threaded anchor point for secure mounting. Replace if broken, stripped, or missing to restore hardware.

Outer housing case that protects control components and internal wiring. Replace when cracked, broken, or missing to restore structural integrity and fit.

This is a coin collection box designed for coin-operated commercial laundry machines. It slides into the coin mechanism housing and collects coins deposited by users, and it comes with a key for access. Replace this coin box if the key no longer works, the box is damaged or bent preventing proper insertion, or if coins are jamming or falling through due to wear.

Pilot light not visible or broken lens? This control panel lens cover protects the indicator bulb and diffuses light. Simple snap-in replacement part.

Case cushion for dryers. Installs on the exterior cabinet to provide vibration dampening. Replace if your cushion is cracked, worn, or missing.

6 Pin 30 minute

3 pin 60 minute

This terminal cover protects and conceals the appliance's electrical wire terminals for safer handling and cleaner internal appearance. It helps reduce accidental contact with live connections and keeps wiring organized. What it does:

• Covers exposed wire terminals to help prevent accidental contact and shorting
• Keeps wiring routed and held in place for improved serviceability
• Protects terminals from dust and debris that can affect connections
• Supports safer access during diagnostics and repairs

• One terminal cover, as shown

• Disconnect power to the appliance before attempting any service
• Remove outer panels as needed to access the terminal area; use manufacturer service guide for panel removal steps
• Align cover over the terminal block and secure per factory mounting points; do not force or modify
• If terminals or wiring appear damaged or corroded, replace or repair those components before reinstalling the cover

This 1/4-20 bolt secures appliance panels, brackets, and components to keep assemblies stable and aligned. It's a direct-fit fastener used where a standard 1/4-20 machine screw is required. What it does:

• Fastens panels, mounting brackets, and internal components to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises
• Restores proper alignment for components that won't sit flush or move under load
• Replaces corroded, stripped, or missing hardware that can cause loose assemblies

• One 1/4-20 bolt

• Disconnect power to the appliance before performing any repairs
• Use the correct socket or wrench for a secure fit; avoid rounded fasteners
• Tighten snugly but avoid over-torquing to prevent thread damage or stripped holes
• Ensure mating threads are clean and free of debris

Dryer won't start when you press the button? This push to start switch initiates the drying cycle. Simple repair restores one-touch operation.

This foam seal cushions and seals the icemaker area to reduce vibration and prevent air leaks that can affect ice quality and efficiency. It's a direct-fit replacement designed to restore proper sealing around the icemaker housing. What it does:

• Cushions the icemaker assembly to reduce noise and movement
• Helps seal gaps to limit warm air intrusion that can cause icemaking issues
• Supports consistent ice production by maintaining the intended airflow path
• Resists compression set for reliable sealing over time

• One foam seal for the icemaker housing

• Basic installation; remove power to the appliance before starting
• Align the seal to the icemaker housing, pressing into place until fully seated
• Inspect surrounding surfaces for debris or damage and clean before installing

If your dryer won't start or heat, the relay may have failed. This switch controls electrical current to the motor and heating element.
