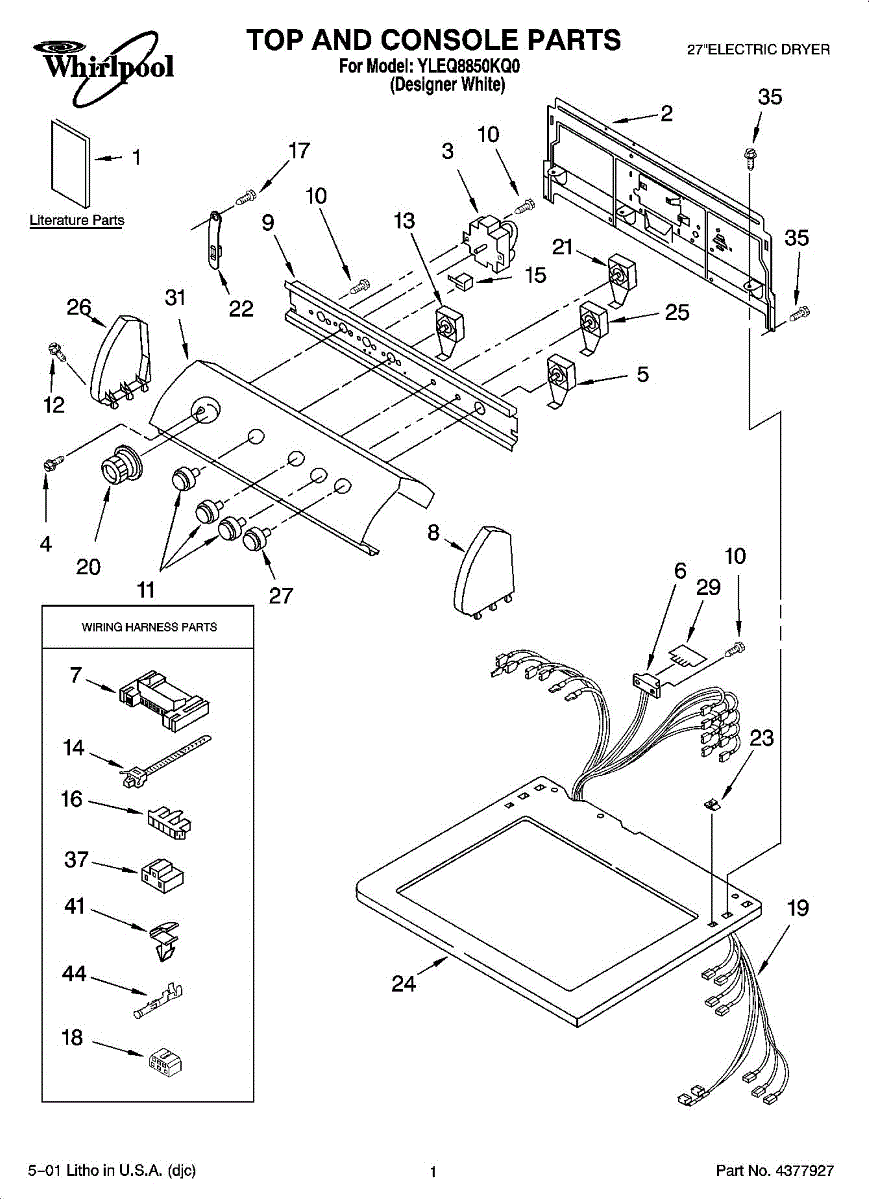

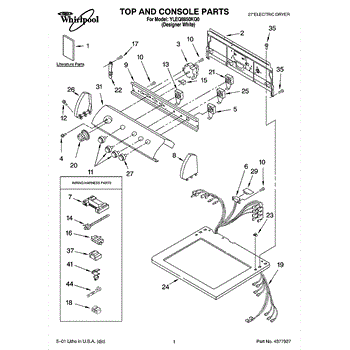

Parts for Whirlpool YLEQ8850KQ0: 01 - Top And Console Parts

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Fix a dryer that won't start, stops mid-cycle, or runs continuously. This 2-cycle timer controls cycle selection and automatic shutoff. DIY-friendly repair.

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

Dryer won't start when you press the button? The start switch sends the signal to begin the cycle. Simple 5-10 minute fix with basic tools.

Fix a dryer that won't start or has no power with this terminal block connector assembly. Common repair for electrical connection issues. Moderate DIY.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

The Control Knob is an OEM part for Whirlpool washers and dryers. It attaches to the selector switch, enabling users to choose various settings such as wash or drying temperature, fabric type, and spin speed.

The most common causes of a defective control knob include internal stripping that prevents secure engagement with the selector shaft, wear and tear from frequent use, accidental impacts leading to cracks or breakage, and aging of the knob's material.

Color: White

Symptoms of a malfunctioning control knob include:

• Difficulty selecting or changing cycle settings
• The knob spins freely without engaging the selector switch
• Cracks, looseness, or broken parts

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washers and dryers.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

Dryer not heating properly or overheating? This temperature switch regulates heat cycles. Moderately easy repair—disconnect power, access control panel.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

White plastic timer knob for dryers. Replaces broken, cracked, or stripped control knobs. Installs on the control panel for cycle selection.

Broken selection knob or exposed switch opening? This dryer finish guard covers and protects the control switch area. Moderate difficulty repair.

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

Push-in.

Fix a dryer that won't stop running when the cycle ends. This end of cycle switch signals the timer to stop. Simple DIY repair for most models.

Replacement control knob for dryer control panel. Installs on the front console to operate dryer settings. Needed when original knob is cracked or broken.

Dryer stops early on auto cycle but works on timed? The moisture sensor control board monitors dryness levels. DIY-friendly repair, 15-20 minutes.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Wire harness connector that links the control to the buzzer for audible alerts. Replace if damaged, corroded, or missing to restore cycle completion tones.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

For mating terminal use [AP31136300].
