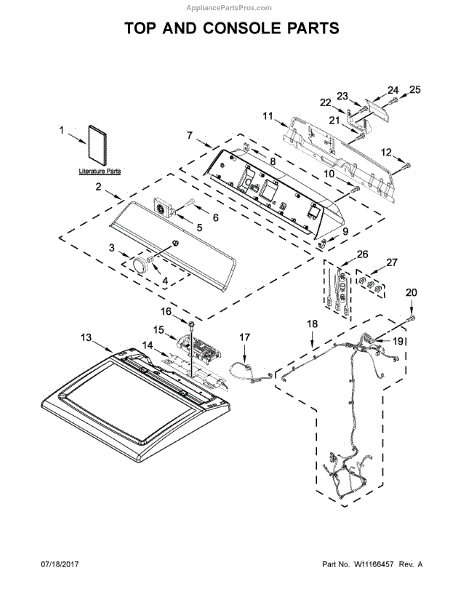

Parts for Maytag MEDB765FC0: Top And Console Parts

This control knob attaches to the appliance's control shaft so you can select settings with a solid, positive feel. Replace a cracked, stripped, or missing knob to restore smooth operation and a clean, finished look.

• Attaches to a switch or valve shaft to select temperatures, burner levels, or cycles
• Transfers your hand turn to the control shaft for accurate setting changes
• Common symptoms: cracked hub, spins without engaging, wobbly/loose, falls off, or missing
• Helps maintain a uniform appearance across the control panel

• Disconnect power (and shut off gas, if applicable) before servicing
• Pull the old knob straight off the shaft; avoid prying against the control panel
• Align the insert with the shaft's flats or splines and press straight on until fully seated
• Match position- and finish-specific knobs to the original on models that use different knobs per location

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This console control panel assembly houses the range's user controls and display, restoring a secure mounting surface and user interface for normal operation. It replaces a cracked, damaged or nonfunctional console to regain safe control access. What it does

• Provides the mounting surface and bezel for the cooktop/range control buttons, knobs, and display
• Restores proper alignment and protection for the control electronics and user interface
• Commonly replaced for cracked or broken panels, loose or missing button backing, or cosmetic damage
• Resolves issues with inaccessible controls or intermittent button response when damage is the cause

• One console control panel assembly

• Disconnect power to the appliance before starting; risk of electric shock if powered
• Removal typically requires accessing screws/fasteners at the back of the oven or under the trim; handle edges carefully
• Keep and reuse original fasteners unless damaged; verify button/switch fit before final reassembly

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement top panel restores the appliance's outer cabinet for a clean appearance and to protect internal components from dust and debris. It fits above the main cabinet and provides the finished surface beneath controls. What it does:

• Covers and protects internal parts and wiring from exposure and contaminants
• Restores a smooth, finished surface for the appliance cabinet
• Helps maintain proper spacing and alignment for control components
• Replaces a bent, dented, or corroded top that can trap dirt or allow moisture in

• Disconnect power to the appliance before beginning any work.
• Installation may require removing the control console or back panel to access mounting screws.
• Handle edges carefully — replacement panels can have sharp edges.
• Follow the manufacturer's service instructions for fastening sequence and torque.

The Control Board is an OEM part for Whirlpool dryers. It is the central electronic component that controls all functions of the dryer, including temperature settings, timers, cycles and safety features. The control board works to monitor sensors, power electrical components like the heating element and motor, and ensure your clothes receive the proper time and temperature for fully dry laundry.

Causes of a bad control board can include water damage, electrical failures or shorts over time.

Symptoms of a bad control board include:

• The dryer not powering on at all
• Inability to select or change cycles/settings
• Dryer not heating or properly tumbling clothes
• Random restarting or stopping during cycles
• Display/control panel issues like blank or unresponsive screens

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Harness and Wiring Kit is an OEM part for Whirlpool dryers. It contains all necessary wiring and electrical components to facilitate communication between internal modules and overall appliance operation.

Causes of a bad harness and wiring kit are typically due to cracking or wearing of insulation over many cycles exposing wires to potential shorts or damage. Normal movement during dryer tumbling can also damage wiring over time.

Symptoms of a bad harness and wiring kit include:

• Inoperative or intermittent cycles
• Inability to select desired time or temperature settings
• Faulty temperature sensing inhibiting proper drying
• Random error codes or function failures
• Exposed or loose wires near internal components

This authentic Whirlpool replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore dryer models.

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This cover is the exterior panel that protects internal components and keeps your appliance looking finished. It restores a secure, protective barrier to prevent dust and debris from reaching sensitive parts. What it does:

• Covers and protects internal components from dust, spills, and physical damage
• Helps reduce vibration noise by keeping components enclosed
• Restores the appliance's exterior appearance and maintains safe operation
• Prevents foreign objects from entering service areas and interfering with moving parts

• Disconnect power (and water if applicable) before beginning any repair
• Remove mounting fasteners and carefully lift old cover off, then position and secure replacement
• Use the same fasteners or OEM-recommended hardware to avoid fit issues
• If clips or tabs are damaged, replace them to ensure a secure installation;

10 - 16 x 1/2

Includes screws and wire connectors. For the complete terminal block kit use 279320.

The Terminal Block Screw Kit is an OEM replacement part for Whirlpool dryers. It is an assembly of screws used to securely fasten electrical terminal blocks within the dryer's control panel. Includes 3 screws and 3 nuts. Screw kit for dryer cord connector.

Over time, terminal block screws can become loose, corroded, or damaged due to regular use or electrical issues. If the terminal block screws are compromised, it can lead to electrical problems or even pose a safety hazard.

Symptoms of a faulty terminal block screw kit include:

• Intermittent power or failure of heating/fan elements to engage
• Repeated blowing of internal fuses or tripping of circuit breakers
• Hot terminal connections detected during operation
• Arc flashes, sparks, or smoke seen around the control panel area

This genuine Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.
