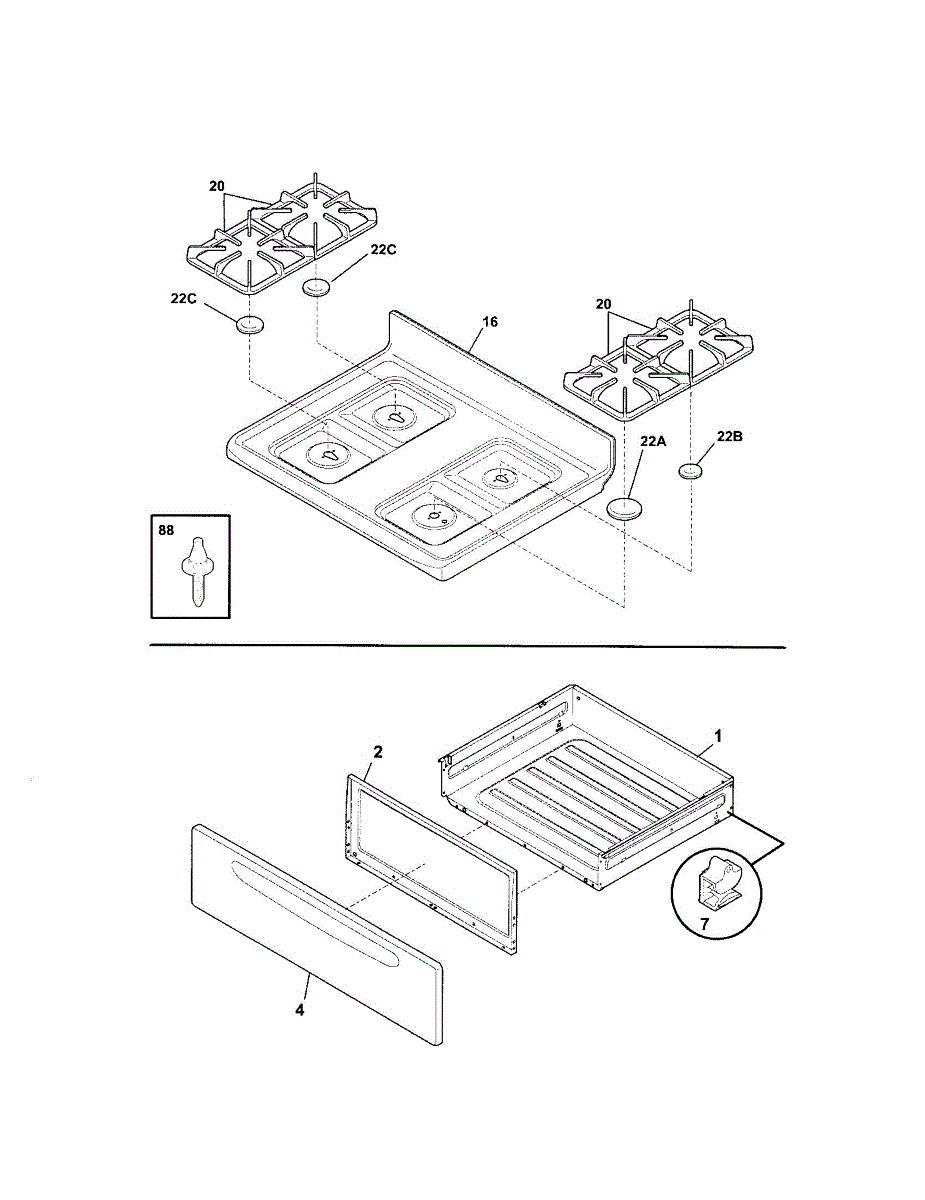

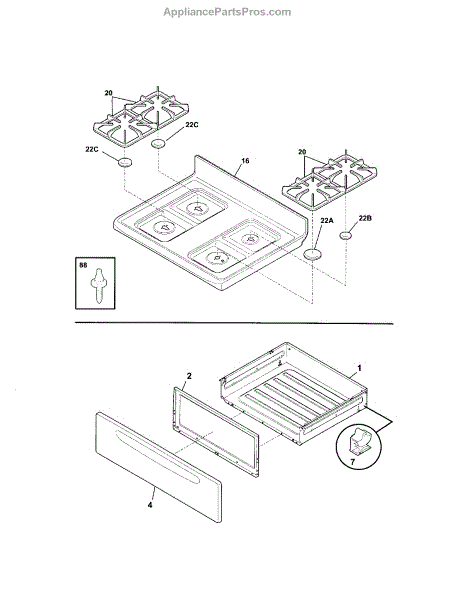

Parts for Kenmore 790.71344701 (79071344701, 790 71344701): Top / Drawer Parts

This repair parts list provides the appliance's exploded parts diagram and part number references to help identify components and simplify ordering. It's a reference document for locating service parts and planning repairs more efficiently. What it does:

• Shows exploded diagrams and item numbers to identify individual parts
• Links each diagram item to the correct OEM part number for ordering
• Helps diagnose which component is causing a symptom by location/appearance
• Reduces ordering errors when you need replacement parts for repair

• This is a reference document — it is not a replacement part or installation kit
• Always confirm your appliance model number matches the parts list before ordering parts
• Use the diagrams to locate parts, then order the exact PN shown
• Keep the document dry and legible; store with other appliance paperwork for future reference

Replaces a damaged, cracked, or missing bottom drawer on your range. Restores smooth slide action and a flush, finished look to the storage compartment.

This is a metal liner that sits inside the broil drawer at the bottom of the range, protecting the cabinet floor from grease, drips, and heat damage. It provides a smooth, cleanable surface beneath the broiler element or heating area. Replace this liner if it is rusted, warped, or has burn-through holes that allow grease to reach the range cabinet.

Replacement control panel trim for gas ranges. Covers the front panel area around control knobs. Needed when original is cracked, chipped, or damaged.

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Size: 8-18ab x 0.5 inch.

Rear glide attaches to the back of your range storage drawer, allowing smooth sliding motion. Replace if broken, cracked, or missing to prevent drawer tilt.

Secures components inside your range. Replace if broken, loose, or missing to prevent rattling and ensure proper part alignment. Verify fit with your model.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

Touch-up paint for appliances to cover scratches, chips, and worn areas on exterior surfaces. Restores appearance of refrigerators, ranges, and more.

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Metal main top panel for gas ranges. Replaces the cooking surface cover when cracked, chipped, discolored, or damaged. Direct fit replacement part.

Metal main top panel for gas ranges. Replaces cracked, chipped, or discolored cooktop surface. Covers burner assembly and provides cooking surface.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This 15-ounce grate cleaner removes grease, food residue, and burnt-on stains from your range's cooking grates. The four-pack provides enough cleaner for multiple thorough cleanings to restore your grates to like-new condition.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Black burner grate for gas range cooktops. Replace your cracked, chipped, or missing grate to restore proper support for pots and pans during cooking.

Burner cap sits on top of the gas burner assembly to distribute flame evenly. Replace if cracked, chipped, discolored, or missing for proper cooking.

Guide pin for gas ranges. Secures and aligns oven or burner components. Replace if broken, missing, or worn to restore proper part positioning.
