Parts for Kenmore 790.71344701 (79071344701, 790 71344701): Burner Parts

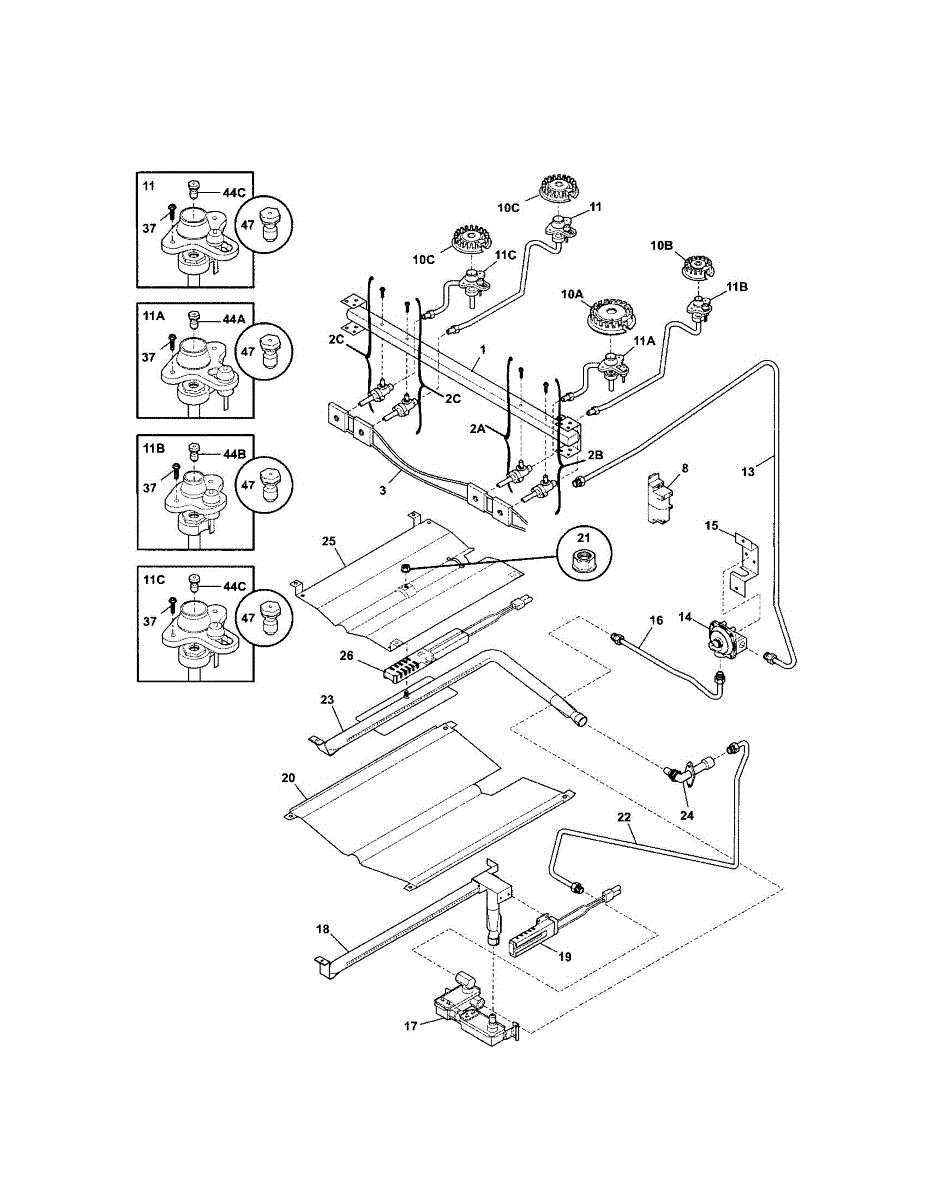

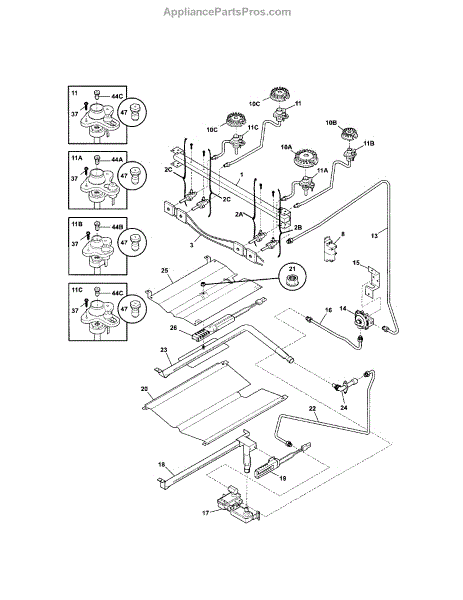

This repair parts list provides the appliance's exploded parts diagram and part number references to help identify components and simplify ordering. It's a reference document for locating service parts and planning repairs more efficiently. What it does:

• Shows exploded diagrams and item numbers to identify individual parts
• Links each diagram item to the correct OEM part number for ordering
• Helps diagnose which component is causing a symptom by location/appearance
• Reduces ordering errors when you need replacement parts for repair

• This is a reference document — it is not a replacement part or installation kit
• Always confirm your appliance model number matches the parts list before ordering parts
• Use the diagrams to locate parts, then order the exact PN shown
• Keep the document dry and legible; store with other appliance paperwork for future reference
